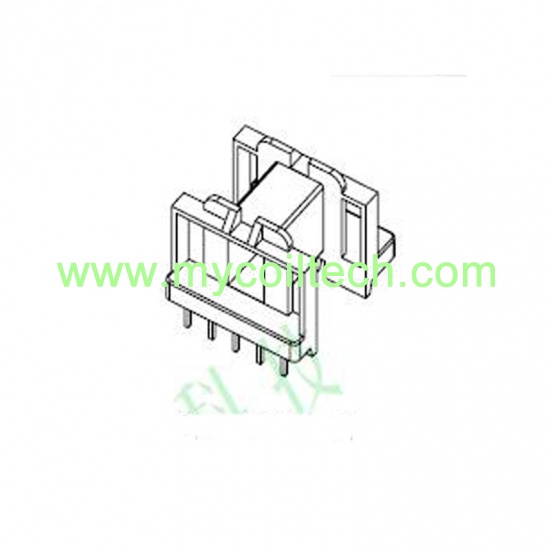

EE20 PCB mounted transformer. 5+3 pin horizontal EE20 transformer frame. Bobbin Size=27.0mmX22.8mmX20.5mm. Pin Pitch=4.0mm. Row distance=21.8mm. DIP transformer EE20 bobbin. Our EE series transformers usually used in switching power supply, LED lights, NC machine, measurement and control unit.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE2005(H5+3P)shipping port:
ShangHaipayment:
T/T in advanceHot selling EE20 horizontal transformer bobbin, 5+3 pin EE20 coil former, welcome customized EF20 high frequency transformer.
Quick Details
|
PN: MCT-EE2005(H5+3P)
|
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE20 High Voltage Switching Transformer Bobbin
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Applications: SMPS transformer,LED drive transformer,high frequency transformer,encapsulated transformer.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

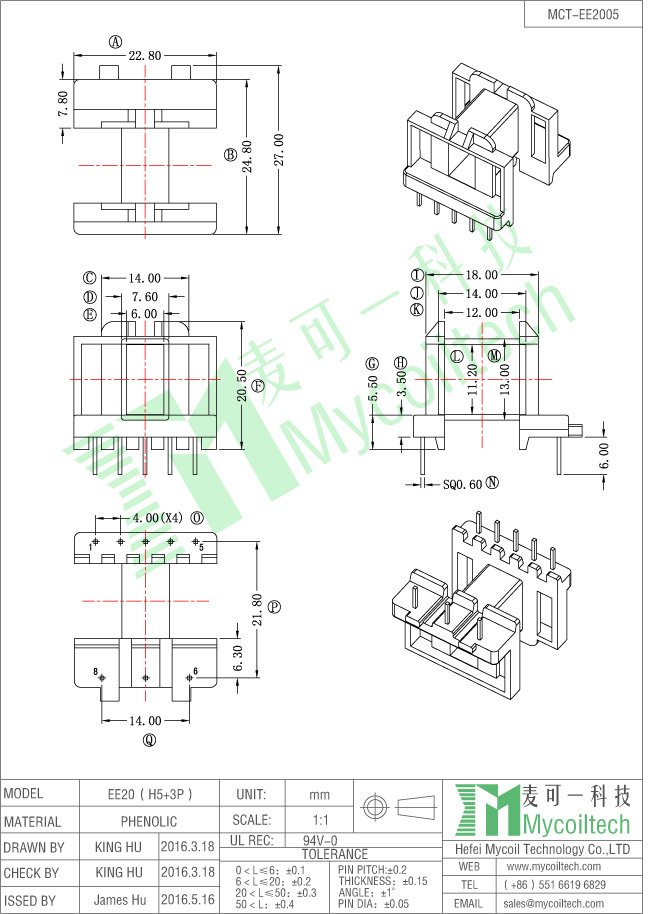

Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
