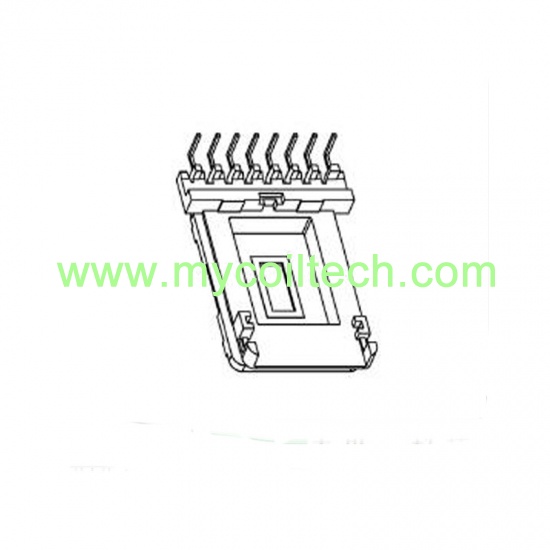

EE42 high frequency transformer. Vertical type EE42 8pin bobbin. Bobbin Size=55.95mmX46.2mmX4.95mm. Pin pitch=5.5mm. We can make bobbin tooling. EE42 electronic transformer can used for electrical equipment, medical equipment, communication equipment, UPS. AC/DC Converter, LED drive and vehicle electronic equipment industry.
brand:
MCTitem no.:
MCT-EE4213(V/8+0P)shipping port:
Shanghaipayment:
T/T in advanceFactory price vertical EE42 coil former, we supply matched ferrite cores, customized transformer also acceptable.
Quick Details
|
Part Number: MCT-EE4206 |
Brand Name: MCT |
|
Material: PM9820 |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE42 Ferrite Core Switch Power Transformer Vertical Bobbin
Product Range: Transformers, filters, coils, bobbins, ferrite cores.
Applications: switching power supplies, Charges, UPS, Audio equipment, inverter products
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

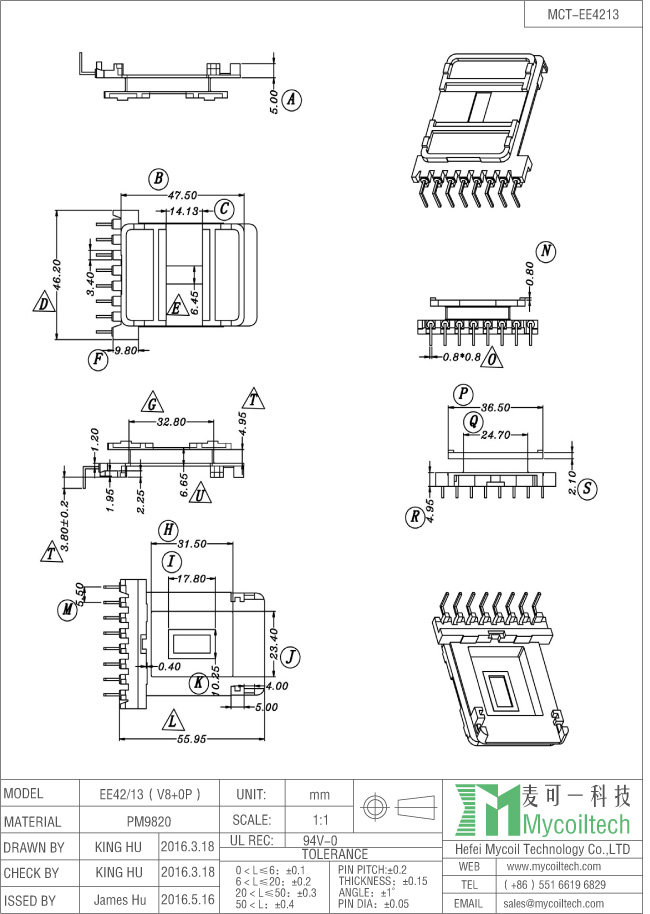

Product Specification
For more details, please contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
