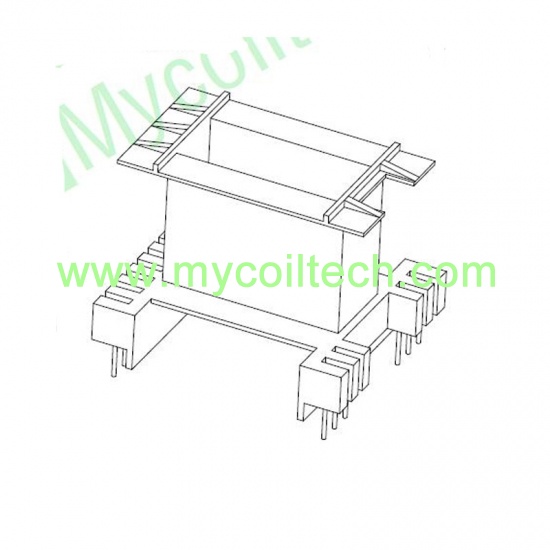

EE55 bobbin for inverter transformer. 6+10 pin vertical EE55 bobbin. Bobbin Size=64.8mmX55.0mmX52.4mm. Parallel Distance=55.0mm.Pin pitch=5.5mm. China transformer bobbin factory, welcome customized EE55 transformer.
brand:
MCTitem no.:
MCT-EE5504payment:
T/T in advance; PayPalEE55 ferrite core bobbin for power transformer, supply ferrite cores and final transformers, sample is acceptable.

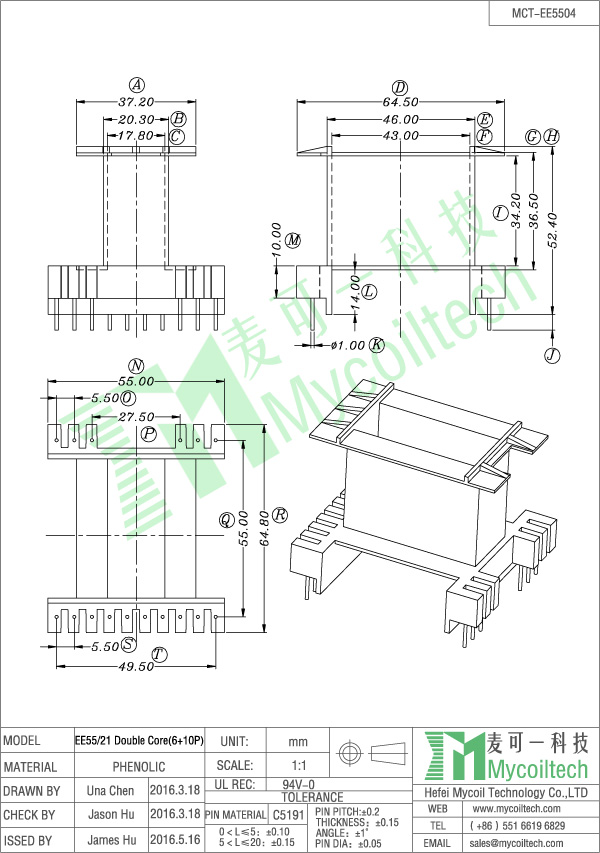

Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EE16 Vertical Transformer Bobbin Dip Bobbin With 2 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=15.6mm Size=18.2mmX16mmX11.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3mm, Parallel Distance=10.3mm Size=16.4mmX13mmX16.5mm
EE55 High Power Voltage Transformer Bobbin
EE55/21 vertical bobbin 11+11 pins, EE55 power transformer coil former. Bobbin Size=63.8mmX61.2mmX54.4mm, pin pitch=5.0mm, parallel distance=52.5mm. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Flyback Transformer Horizontal Bobbin 11+11 Pins
EE55 horizontal bobbin for power transformer, 11+11pin EE55 phenolic coil former. Bobbin Size=55.0mmX45.1mmX40.5mm, pin pitch=5.0mm, parallel distance=40mm. We are China bobbin factory, we have many private bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE55 Switching Power Transformer Horizontal Frame
EE55/21*2 coil bobbin two cores, power transformer bobbin. Bobbin Size=63.0mmX36.24mmX39.2mm, no pin EE55 ferrite coil bobbin. We are experienced bobbin factory, we have many bobbin toolings, for special size bobbin, we can make new tooling to meet your size.
EE13 Transformer Bobbin For PCB Mounting Transformer Phenolic Material
2+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=8.5mm, Parallel Distance=10mm Size=12.5mmX14mmX14.6mm
Horizontal EE13 Transformer Bobbin With 4+4 Pins
4+4 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.8mm, Parallel Distance=12.5mm Size=18mmX14mmX14.85mm
Horizontal Bobbin EE16 Transformer Bobbin With 5+2 Pins
5+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=16mm Size=19.4mmX16.2mmX13.2mm
Phenolic Material EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=13mm Size=15.8mmX15.6mmX13.7mm
Vertical Bobbin EE16 Transformer Bobbin With 5+2 Pins
5+2 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=19.5mm Size=22.5mmX17mmX14mm
Horizontal Bobbin EE16 Transformer Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=3.5mm, Parallel Distance=15.25mm Size=18.4mmX16mmX12.7mm
Horizontal Bobbin EE16 Dip Bobbin With 4+4 Pins
6+6 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=12.5mm Size=16mmX16mmX13.3mm
