EEL19 Multi Section Transformer Bobbin Black Cover

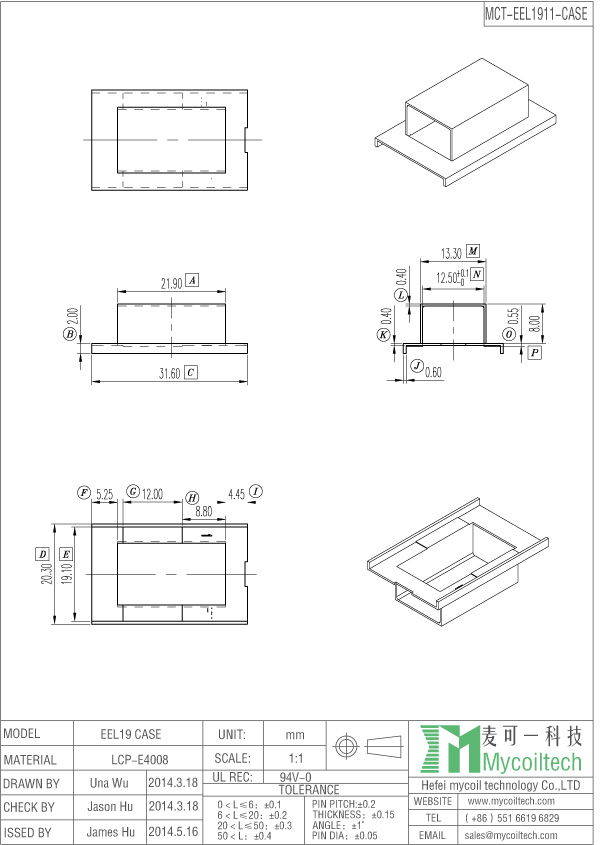

EEL19 bobbin case for transformer. LCP-E4008 material transformer cover, low cost and high quality. Case size=31.6mmX21.3mmX8.0mm. We use plastic tray to pack EEL19 bobbin. We can make tooling. UL REC:94V-0

brand:
MCT
item no.:
MCT-EEL1911-CASE
shipping port:
Shanghai
payment:
T/T in advance
price range:
3000-5000/0.031$

contact now

product description

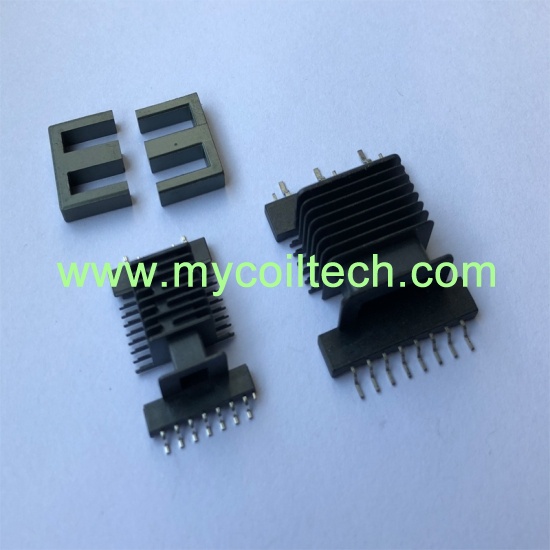

Popular EEL19 case for multi section coil former, we produce EEL19 SMD bobbin and supply matched ferrite cores. We can design final transformer fro customer.

Quick Details

Part No: MCT-EEL1911-CASE	Brand Name: MCT
Material: LCP-E4008	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: 3000pcs
