EI24 Voltage Transformer Vertical Bobbin

EI24 3+3 pin bobbin for current transformer/power transformer/switching transformer. Bobbin Pin Pitch=5.0mm. Bobbin Size=20.8mmX19.2mmX17.4mm. Parallel Distance=17.5mm. China transformer bobbin factory, we have been doing it over 10 years, we have experienced engineers and sales team.

brand:
MCT
item no.:
MCT-EI2401(V3+3)
shipping port:
ShangHai
payment:
T/T in advance; PayPal

contact now

product description

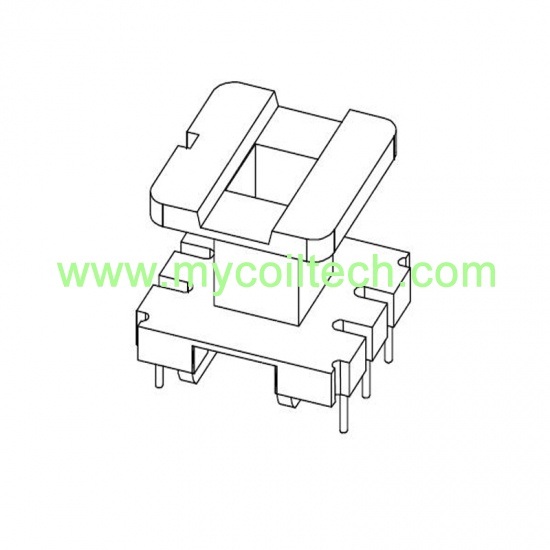

EI24 vertical transformer frame, 3+3 pin EI24 bobbin with good quality, we supply EI series ferrite cores.

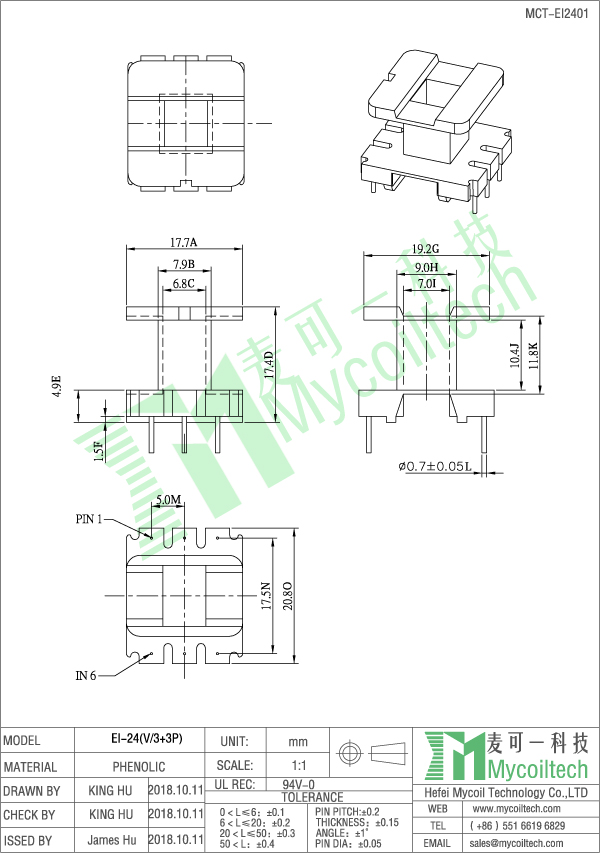

Product Specification

EI24 vertical 3+3 pin bobbin

FAQ?

Q1:Do you provide free samples?	A: Yes, we provide 3-5pcs free samples, but freight collect to customers.
Q2: How about the quality?	A: We have the best professional engineer and strict QA and QC system. We have UL, ROHS, ISO900:2015 certificate.
Q3: What's your delivery for mass production?	A:It is 15-18 days after payment.
Q4:How do you ship?	A:By air transportation and by sea for bulk order. We cooperated with UPS/TNT/DHL/FedEx, door to door service.
Q5:Do you accept customzied products and OEM service?	A:Yes, we design transformer/inductor to meet customer requirements, OEM also acceptable.
