EE65 High Power Transformer Horizontal Frame
EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.
EF30 Power Transformer Vertical Bobbin 6+6 Pin
EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
ETD44 High Frequency Transformer Ferrite Core 120~180W Flyback Transformer For LED Drive Power
ETD44 high frequency flyback transformer power range is 20~800W. Usage:DC converters,drive transformers,PFC inductors.Winding:Auto-transformer.
EI14 Type High Voltage Audio Frequency Transformer for Audio Devices
EI14 audio frequency transformer has stable inductance value, small inductance deviation during adding of superposed current, large working current.

High Frequency EI19 Transformer Horizontal Bobbin

Switching power transformer. Horizontal EI19 2+2 pin bobbin. Bobbin Size=18.2mmX15.0mmX17.3mm.Pin pitch1=15.24mm. Pin pitch2=9.4mm. Parallel Distance=10.16mm. We produce and design EI16 electronic transformer for customer, mainly used in power supplies, lighting, UPS, computers, telecom communication systems, welding machines and other industries.

brand:
MCT
item no.:
MCT-EI1921
payment:
T/T in advance

contact now

product description

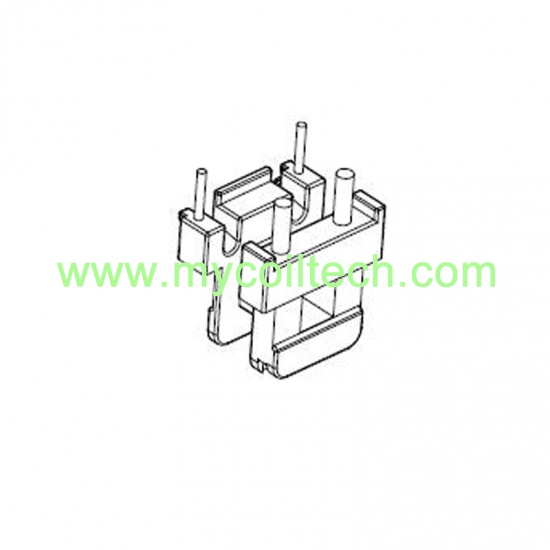

EI19 ferrite core bobbin, factory price horizontal coil former 2+2 pin bobbin, welcome for small order.

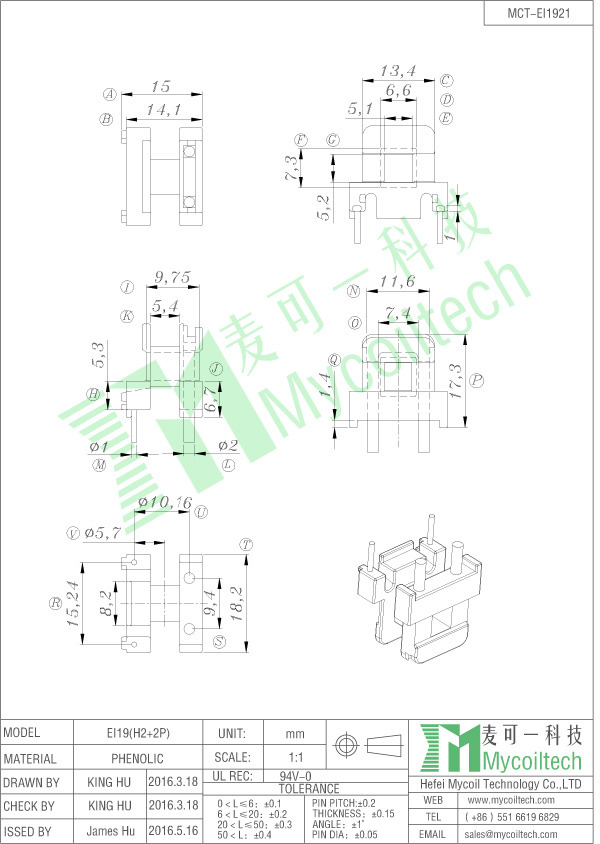

Product Specification

EI19 transformer bobbin
