EPC17 Square Clamp For Power Transformer Customize

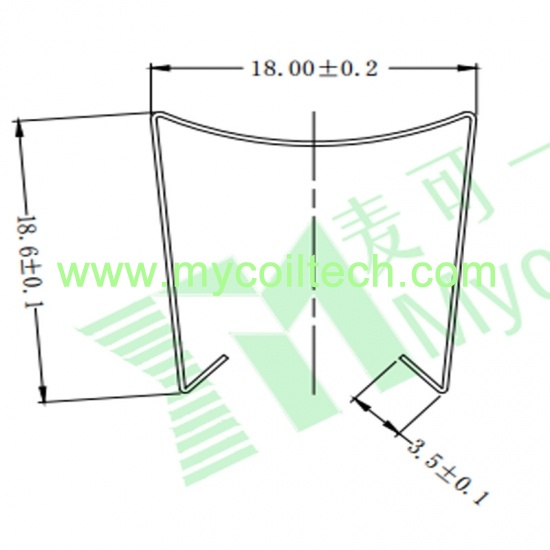

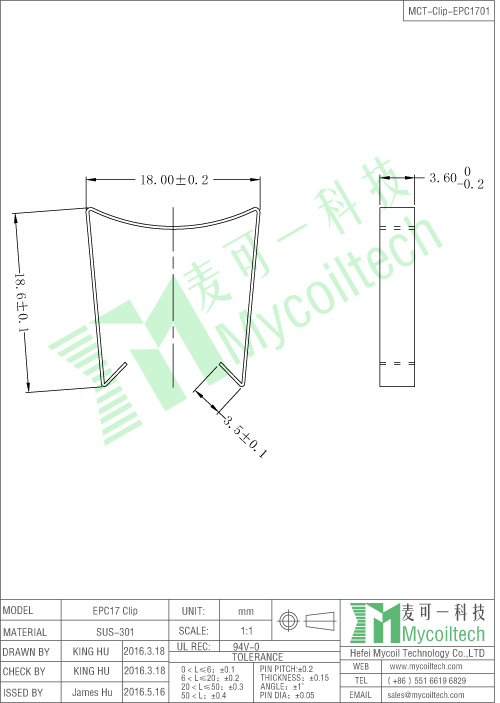

Best selling EPC17 transformer clamp. EPC17 transformer SUS301 clamp.Size=18.6mmX18mmX3mm. Transformer clips are used to fix components like iron cores and coils, ensuring structural stability and preventing displacement due to vibration during operation.We also provide customized services for transformer related products. We have a professional factory that accepts small batch orders.

product origin:
China
brand:
MCT
item no.:
MCT-Clip-EPC1701

contact now

product description

High frequency transformer clip. This EPC17 square clip serves primarily to secure transformers, minimizing vibration and suppressing EMI interference. Featuring simple installation and durable construction, it enhances operational stability while reducing noise. We offer customized solutions for high frequency transformers, inductors, current transformers, etc. Our products are applicable in industrial control panels, HD cameras, access control systems, sensor nodes, etc. boasting advantages like low power consumption, high temperature resistance, and stable frequency performance.

Production Specification
