EE65 High Power Transformer Horizontal Frame
EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.
EF30 Power Transformer Vertical Bobbin 6+6 Pin
EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
ETD44 High Frequency Transformer Ferrite Core 120~180W Flyback Transformer For LED Drive Power
ETD44 high frequency flyback transformer power range is 20~800W. Usage:DC converters,drive transformers,PFC inductors.Winding:Auto-transformer.
EI14 Type High Voltage Audio Frequency Transformer for Audio Devices
EI14 audio frequency transformer has stable inductance value, small inductance deviation during adding of superposed current, large working current.

GU Type Power Switch Transformer Clip

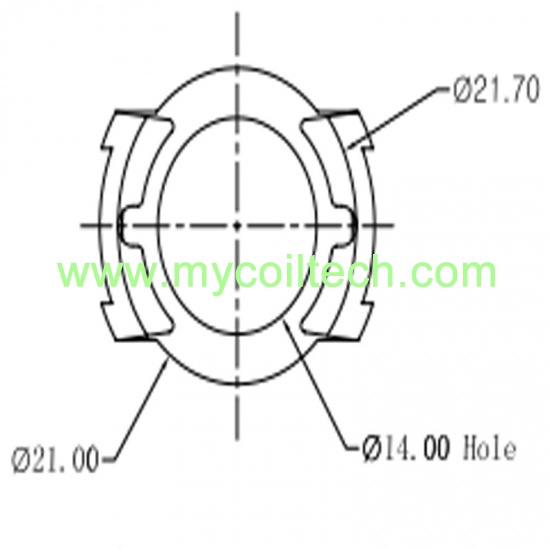

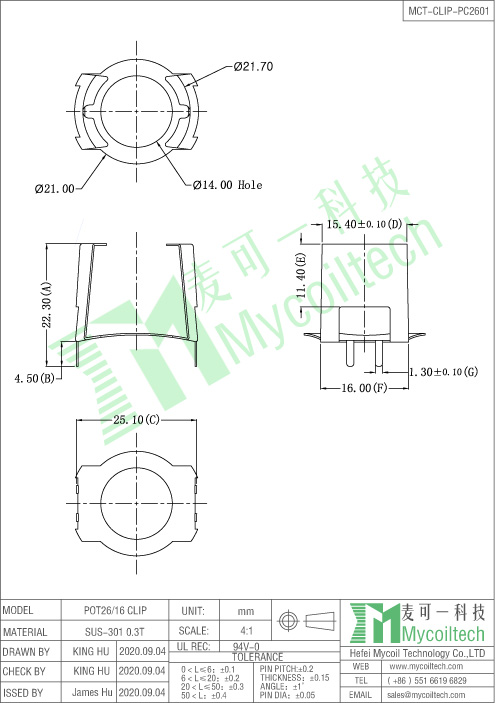

PC26 is the best selling new product, PC26 electronic transformer clip, made of SUS301 material. The material features high strength, high hardness, good ductility, and strong corrosion resistance. Size=25.1mm × 22.3mm × 21mm. In addition, our factory also produces supporting products such as transformers, magnetic cores, casings, transformer bobbins, etc.

product origin:
China
brand:
MCT
item no.:
MCT-CLIP-PC260
MOQ:
5000

contact now

product description

PC26 high frequency transformer, as the flagship of our GU series, this product integrates core components including magnetic cores, bobbins, shells, and clips. Its standout advantages feature a compact form factor, tool free installation, 120°C heat resistance, and ultra-stable performance verified by 10,000+ hours of aging tests.Engineered for versatility, it excels in power switch transformers, LED lighting, military grade equipment, home appliances, and medical devices. The modular design allows seamless integration into tight spaces, while premium materials (UL94V-0 flame retardant shells and PC40 ferrite cores) ensure compliance with global standards (CE/ROHS/UL).Offering free samples and accepting MOQ 100pcs, our one stop solution reduces supply chain complexity. Trusted by 300+ global clients, it’s the go to choice for reliability in critical applications.

Production Specification

POT type transformer clamp

related tags :

Electronic transformer bobbin accessories Electronic transformer encapsulated case Electronic transformer bobbin factory Encapsulated transformer design Current transformers design

POT23 Charger switch transformer frame EPC17 Square Clamp For Power Transformer Customize
