EQ20 High Frequency Transformer Frame

EQ20 transformer horizontal frame, EQ20 DIP bobbin 5+5 pins. Bobbin size=20.5X12.6mmX19.3mm. Parallel distance=10.5mm, Pin distance=3.2mm. Pin pitch2=5.0mm. EQ20 customized transformer frame phenolic bobbin. We manufacture various high frequency transformers and inductors.

  • brand:

    MCT
  • item no.:

    MCT-EQ2001
  • shipping port:

    Shanghai
  • payment:

    T/T in advance
contact now
product description

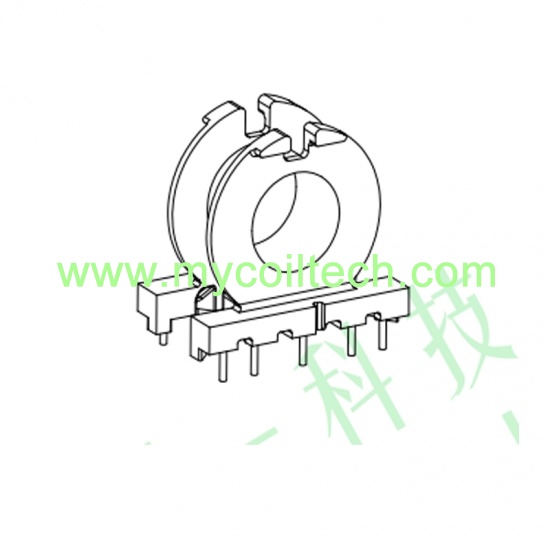

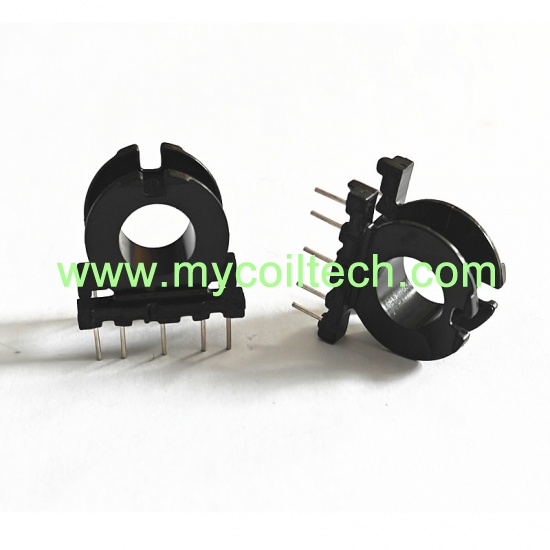

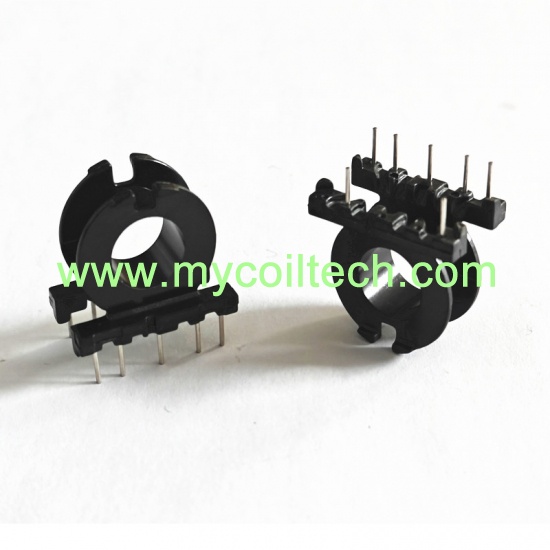

EQ20 through hole bobbin, 5+5 pins EQ20 single slot horizontal bobbin, supply EQ20 ferrite cores.

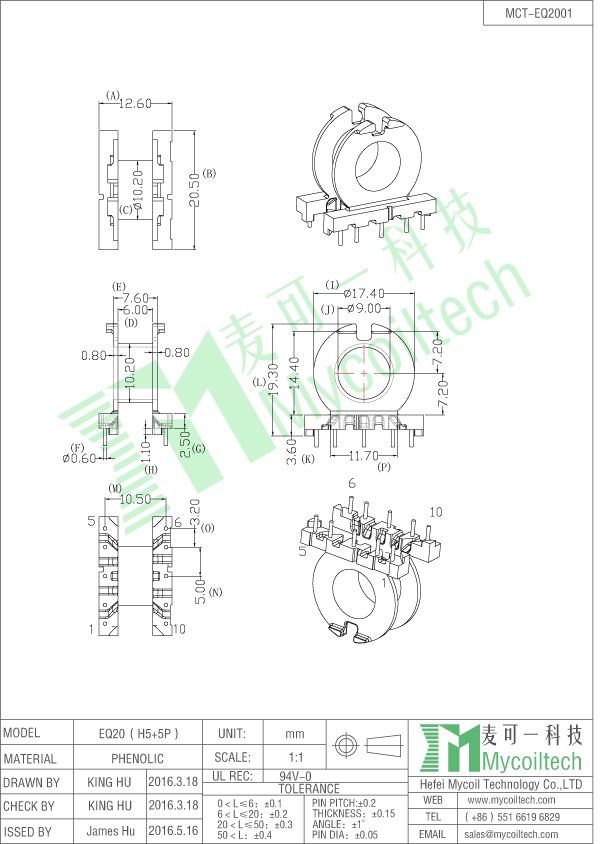

Product Specification

EQ20 horizontal bobbin factory


For more details, welcome to contact us.
