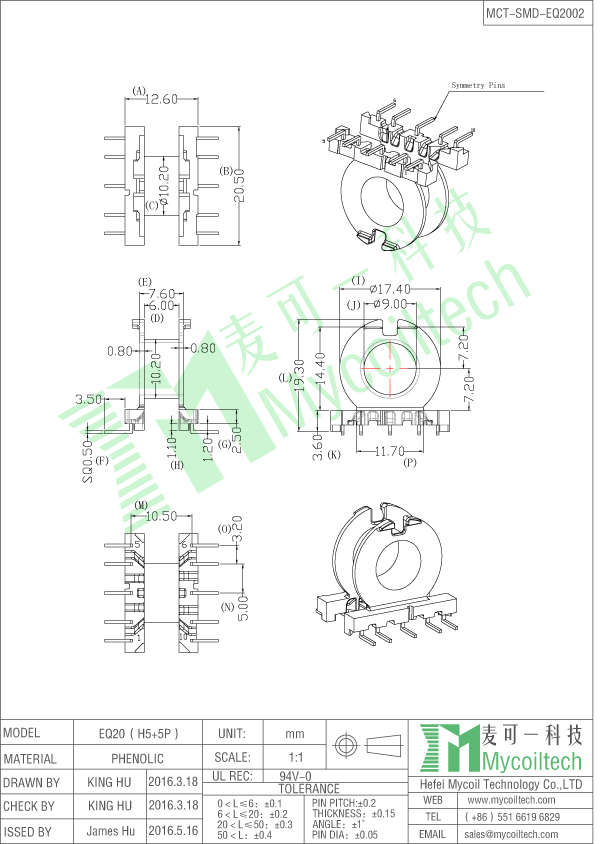

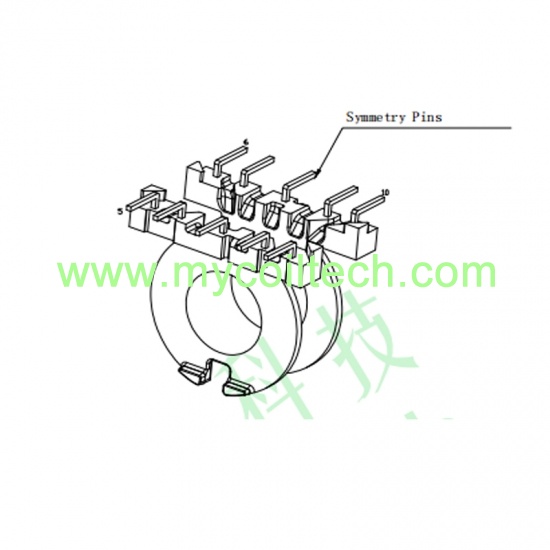

EQ20 horizontal bobbin 5+5 pins, SMD power supply transformer frame, Bobbin size=20.5X12.6mmX19.3mm. Parallel distance=10.5mm, Pin distance=3.2mm. Pin pitch2=5.0mm. EQ20 Transformer frame SMD bobbin. Welcome customized transformers and inductors.
brand:
MCTitem no.:
MCT-SMD-EQ2002shipping port:
Shanghaipayment:
T/T in advanceEQ20 transformer SMD bobbin, 5+5 pins horizontal EQ20 coil former, samples can be sent for testing.
Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EQ40 High Frequency Power Transformer Bobbin
EQ40 smps transformer bobbin, 6+6 pin vertical EQ40 bobbin. Bobbin Size=45.4mmX36.8mmX19.8mm. Pin distance=5.0mm. Parallel distance=39.0mm. We are China bobbin factory, we supply various magnetic ferrite cores with competitive price.
EQ26 High Frequency Transformer Vertical Bobbin
EQ26 vertical transformer frame 5+6 pins, dip type EQ26 coil former. Bobbin Size=33.2mmX21.0mmX12.65mm. Pin pitch1=4.5mm.Pin pitch2=3.5mm. Parallel distance=30.5mm. We provide make new tooling service and manufacture EQ25 electronic transformer.
NC15 Transformer Bobbin Vertical Bobbin With 3+3 Pins
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=11.6mm Size=15.2mmX13.7mmX16.85mm
EQ30 Power Supply Transformer Vertical Bobbin
5+5 Pins EQ30 vertical bobbin for transformer. We supply matched EQ30 ferrite cores for customer test. Parallel Distance=34.9mm. Phenolic bobbin. We have bobbin tooling, for mass production, our lead time is about 15-20days.
6+6 Pins EQ38 Transformer Bobbin Vertical Type Bobbin
12 pins EQ38 transformer bobbin. Vertical type bobbin. Parallel Distance=32.5mm. Accept make bobbin tooling. Bobbin Size=46.5mmX35mmX11mm. DIP bobbin. UL REC:94V-0
