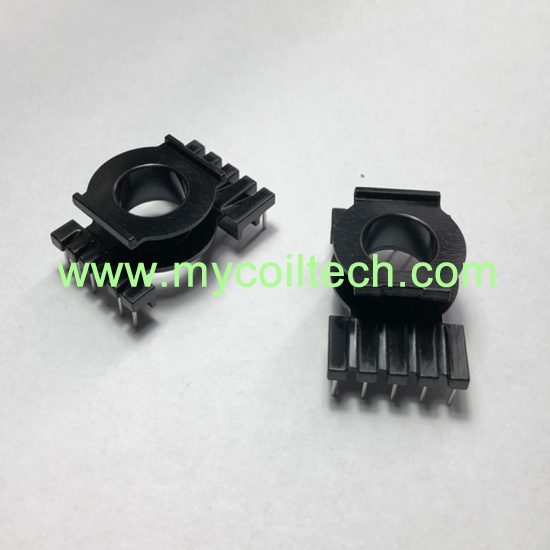

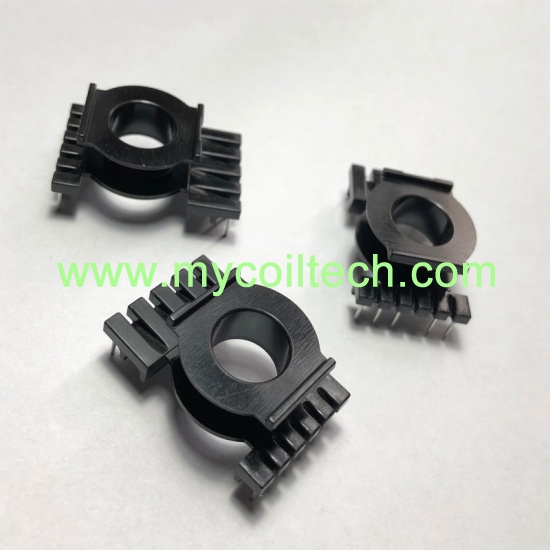

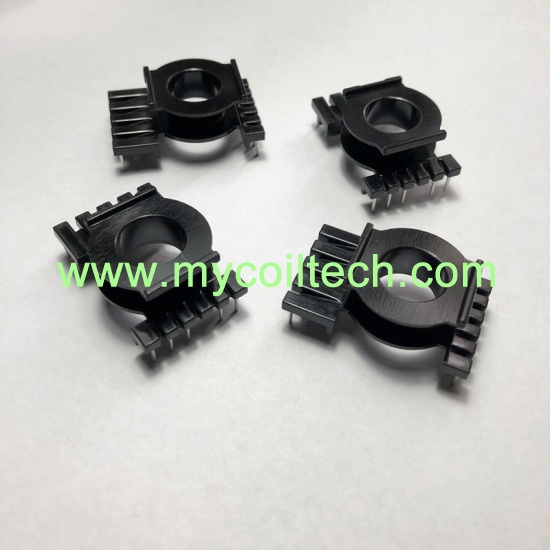

EQ25 Power Supply Transformer Vertical Bobbin

EQ25 micro transformer bobbin. Vertical EQ25 5+6 pins bobbin. Bobbin Size=33.2mmX21.0mmX12.5mm. Pin pitch=4.5mm. Parallel distance=30.6mm. We have bobbin tooling, fast lead time and samples acceptable.

  • brand:

    MCT
  • item no.:

    MCT-EQ2501
  • shipping port:

    Shanghai
  • payment:

    T/T in advance
contact now
product description

Popular EQ25 coil former, vertical bobbin pin 5+6, we manufacture final transformer for customer.


Quick Details

Part No: MCT-EQ2501

Brand Name: MCT

Material: T200HF

Color: Black

UL REC: 94V-0

Logo: Can be customized

Lead Time: 20 days after payment

Custom Made: Available

Certification: ISO9001,ROHS,CE

Packing: Carton, accept customize

OEM: Available

MOQ: Any quantity



Part Information

Product Name: EQ25 Power Supply Transformer Vertical Bobbin

Product Range: Transformers,Inductors,Bobbins,Magnetic cores.

Applications: SMPS transformer,high frequency transformer,LED transformer,drive transformer.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air(FedEx/TNT/UPS/DHL door to door service ), By ship, etc.


Product Specification

EQ25 high frequency transformer


Welcome customized designs and OEM orders.

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
