ET & FT Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: ET & FT Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core |
OEM: Available |
|
Features: Low leakage inductance. High efficiency |
MOQ: Any quantity |
|
Packing: Carton, can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: ET and FT Series High Frequency Filter Ferrite Cores for Computers, Video Phone
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: Electronic ballasts. Switching power transformers. Pulse transformers. Switching power transformers. Power Conversion Transformer. Color TV, monitor, computer, cell phone.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected. We accept custom made and design service.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
ET and FT Series High Frequency Transformer Ferrite Cores

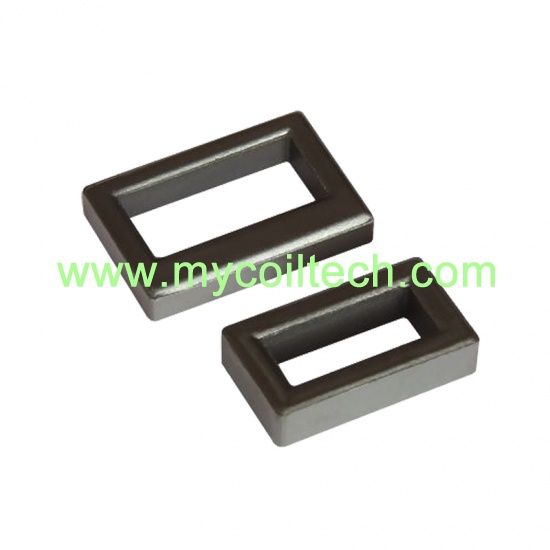

Fig 1：ET Type Fig 2: FT type
ET and FT Series Ferrite Core Materials: M10P, M7P, M5P, MP4
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
|||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
M5P |
M7P |
M10P |
M12P |
M15P |
|
|
ET20 |
29.6 |
17.6 |
52.1 |
917 |
|
3100 |
4400 |
4850 |
6370 |
|
ET20A |
27.2 |
18.51 |
50.36 |
932 |
|
|
4800 |
|
|
|
ET24 |
3.31 |
18.0 |
60.0 |
1098 |
|
2800 |
3800 |
4300 |
5600 |
|
ET25 |
2.3 |
27.6 |
62.3 |
1721 |
2500 |
3000 |
4000 |
4600 |
|
|
ET28 |
2.54 |
27.0 |
70.0 |
1972 |
|
|
|
|
|
|
ET29 |
2.55 |
28.02 |
71.41 |
2000.72 |
|
|
|
|
6000+40%/-30% |
|
ET35 |
1.46 |
58.3 |
85.2 |
4970 |
|
3100~ 4500 |
4000min |
5800 |
7200 |
|
FT20 |
4.11 |
13.0 |
53.0 |
688 |
1600 |
2100 |
2900 |
3300 |
|
|
FT25 |
3.77 |
18.0 |
68.0 |
1203 |
3400 |
|
|
|
|
|
FT30 |
2.85 |
27.0 |
77.0 |
2068 |
2500 |
3150 |
4500 |
5400 |
|
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
ET20 |
20.3±0.5 |
15.8 |
15.8 |
20.3±0.5 |
4.0±0.3 |
4.4±0.3 |
3.88 |
|
ET20A |
20.3±0.5 |
16.1 |
15.8 |
20.3±0.5 |
4.0±0.3 |
4.4±0.3 |
4.41 |
|
ET24 |
24.2±0.5 |
18.9 |
18.8 |
24.2±0.5 |
4.0±0.3 |
4.0±0.3 |
5.3 |
|
ET25 |
25.5±0.5 |
19.2 |
19.2 |
25.5±0.5 |
5.0±0.3 |
7.0±0.3 |
13.0 |
|
ET28 |
28.45±0.7 |
21.8 |
22.2 |
28.45±0.7 |
5.0±0.3 |
5.0±0.3 |
10.1 |
|
ET29 |
28.7±0.5 |
22.2 |
22.2 |
28.7±0.5 |
5.0±0.3 |
5.0±0.3 |
10.25 |
|
ET35 |
35.3±0.7 |
26.8 |
26.5 |
35.3±0.7 |
7.5±0.3 |
7.5±0.3 |
26.0 |
|
FT20 |
20.6±0.6 |
15.7min |
7.35min |
14.1±0.25 |
4.1±0.2 |
4.6±0.2 |
3.8 |
|
FT25 |
25.6±0.4 |
19.3min |
8.1min |
17.6±0.3 |
3.4±0.15 |
5.2±0.25 |
6.5 |
|
FT30 |
30.0±0.4 |
22.4min |
8.9min |
19.8±0.3 |
4.2±0.15 |
6.4±0.25 |
10.9 |
