brand:
MCTitem no.:
ETD & EC Series Ferrite Coreshipping port:
ShanghaiQuick Details
|
Part Number: ETD & EC Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn/Ni-Zn ferrite core |
Logo: Can be customized |
|
Type: Power core |
OEM: Available |
|
Features: High frequency,low power loss. High value |
MOQ: Any quantity |
|
Packing: Carton,can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: High Frequency Ferrite Core ETD and EC Series Ferrite Core
Products Range: Electronic transformers, filter inductors, choke coils, bobbins, relays, magnetic cores.
Applications: Electronic ballasts. Switching power transformers. Pulse transformers. Switching power transformers. Power Conversion Transformer.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details
ETD and EC Series Ferrite Core for High Frequency Transformers and Inductors

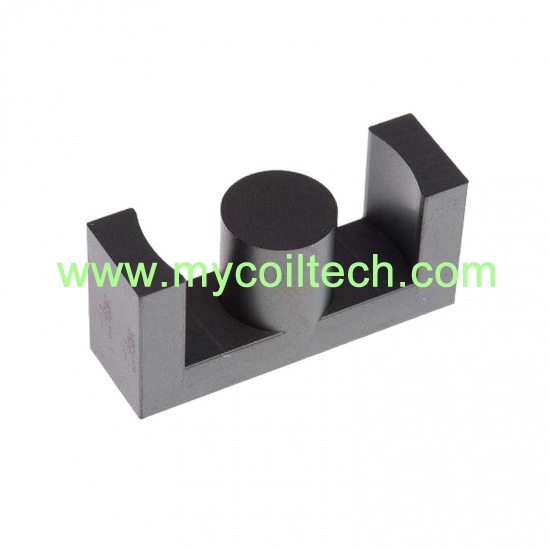

Fig 1: EC type Ferrite Core Fig 2: ETD Type Ferrite Core
ETD and EC Ferrite Series Core Materials: M10P, M7P, M5P, MP4
|
TYPE |
Dimension:mm |
Weight:g |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
ETD19 |
19.6±0.4 |
13.65±0.25 |
7.40±0.25 |
14.40 |
7.40±0.2 |
9.40±0.15 |
14 |
|
ETD24 |
24.7±0.6 |
14.95±0.25 |
8.50±0.3 |
18.8 |
8.50±0.3 |
10.1±0.1 |
20 |
|
ETD29 |
30.6-1.6 |
15.8±0.2 |
9.8-0.6 |
22.0 |
9.8-0.6 |
11.0±0.3 |
28 |
|
ETD34 |
33.4+1.6 |
17.5-0.4 |
11.1-0.6 |
25.6 |
11.1-0.6 |
12.1±0.3 |
40 |
|
ETD39 |
38.2+1.8 |
19.8±0.2 |
12.8-0.6 |
29.3 |
12.8-0.6 |
14.2+0.8 |
60 |
|
ETD44 |
43.0+2.0 |
22.5-0.4 |
15.2-0.8 |
32.5 |
15.2-0.8 |
16.5±0.4 |
94 |
|
ETD49 |
48.6±1.1 |
24.7±0.2 |
16.7-0.6 |
36.1 |
16.7-0.6 |
17.7+0.8 |
124 |
|
ETD54 |
54.5±1.3 |
27.6±0.2 |
18.9±0.4 |
40.1 |
18.9±0.4 |
20.2±0.4 |
180 |
|
ETD59 |
59.8±1.3 |
31.0±0.5 |
21.65±0.5 |
43.6 |
21.65±0.5 |
22.5±0.5 |
260 |
|
EC35 |
34.5±0.8 |
17.3±0.15 |
9.8-0.6 |
22.2 |
9.8-0.6 |
11.9+0.7 |
36 |
|
EC41 |
40.6±1.0 |
19.65-0.3 |
11.9-0.6 |
26.3 |
11.9-0.6 |
13.5+0.8 |
52 |
|
EC52 |
52.2±1.3 |
24.2±0.15 |
13.4±0.35 |
32.1 |
13.4±0.35 |
15.9±0.4 |
110 |
|
EC70 |
70.0±1.7 |
34.5±0.15 |
16.4±0.4 |
43.3 |
16.4±0.4 |
22.75±0.45 |
258 |
|
EC90 |
90.0±1.8 |
45.0±1.3 |
30.0±1.0 |
68.5 |
30.0±1.0 |
35.5±0.5 |
698 |
|
EC120 |
120.0±2.0 |
50.5±0.1 |
30.0±1.0 |
94.3 |
30.0±1.0 |
35.5±0.5 |
780 |
|
TYPE |
Effective parameter |
AL（nH/N2）（AL±25%） |
||||||
|
C1 (mm-1) |
Ae (mm2) |
Le (mm) |
Ve (mm3) |
MP4 |
M5P |
M7P |
M10P |
|
|
ETD19 |
1.32 |
41.3 |
54.6 |
2260 |
1720 |
|
|
|
|
ETD24 |
1.14 |
56.3 |
61.9 |
3480 |
2125 |
|
|
|
|
ETD29 |
0.985 |
73.6 |
70.6 |
5193 |
2670 |
|
|
|
|
ETD34 |
0.810 |
97.1 |
78.6 |
7640 |
2850 |
|
|
|
|
ETD39 |
0.737 |
125 |
92 |
11500 |
3240 |
|
|
|
|
ETD44 |
0.588 |
175 |
103 |
18000 |
4110 |
|
|
|
|
ETD49 |
0.534 |
213 |
114 |
24200 |
4570 |
|
|
|
|
ETD54 |
0.454 |
280 |
127 |
35500 |
4400 |
|
|
|
|
ETD59 |
0.378 |
368 |
139 |
51200 |
5400 |
|
|
|
|
EC35 |
0.918 |
84.3 |
77.4 |
6530 |
2400 |
|
|
|
|
EC41 |
0.735 |
121 |
89.3 |
10800 |
3200 |
|
|
|
|
EC52 |
0.581 |
180 |
105 |
18900 |
3400 |
|
|
|
|
EC70 |
0.514 |
279 |
144 |
40200 |
3900 |
|
|
|
|
EC90 |
0.346 |
624 |
216 |
135000 |
6000 |
|
|
|
|
EC120 |
0.332 |
753 |
250 |
188250 |
6300 |
|
|
|
If you have any questions, please contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily Yu
