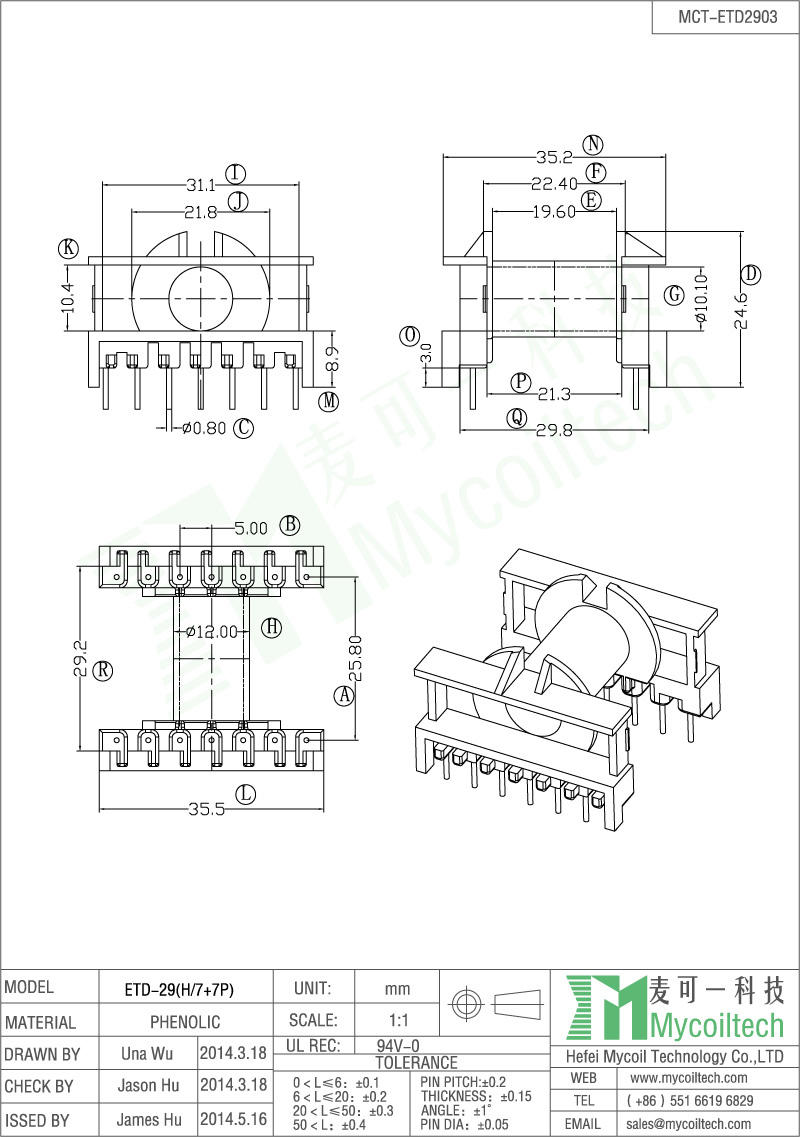

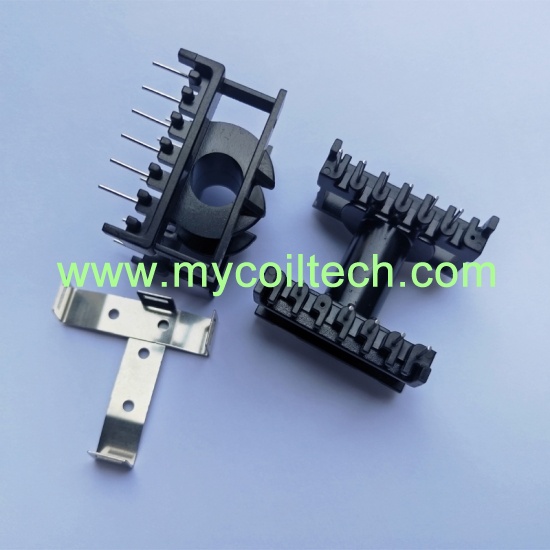

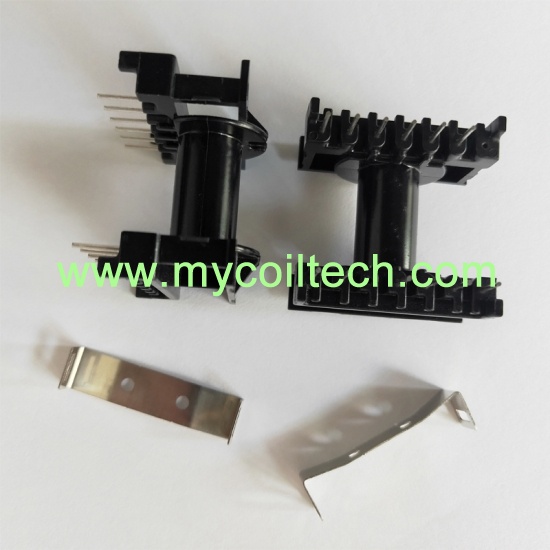

High performance ETD29 horizontal bobbin. Pin Pitch=5mm. Bobbin Size=35mmX29.2mmX24.6mm. Phenolic material transformer bobbins. Parallel Distance=25.8mm. Accept make bobbin tooling. DIP bobbin. UL REC:94V-0.
brand:
MCTitem no.:
MCT-ETD2903(H/7+7P)shipping port:
Shanghaipayment:
T/T in advance; PayPalCompetitive price ETD29 horizontal bobbin for transformer, fast delivery time and good product service, custom design also available.
Quick Details
|
Part Number: MCT-ETD2903 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: ETD29 Power Bobbin For High Frequency Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, choke coils, high frequency transformers, filters.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Specification
Any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
ETD34 High Voltage Transformer Double Slots Bobbin
Ferrite Core ETD34 bobbin. 7+7 pins ETD34 horizontal coil bobbin. Bobbin Size=42.5mmX39.6mmX33.6m. Pin pitch=5.0mm. Parallel Distance=25.35mm. We manufacture final ETD34 flyback transformers for switching power supplies, inverters, medicial supplies, amplifier, electrical equipment, LED drive supply, welcome customized transformers.
ETD29 Horizontal Coil Former 6+6+6+6 Pins
ETD29 Switching Power Transformer Frame ,ETD29 coil former size=33.60mmX31.10mmX28.96mm.Pin row distance=25.40mm,Pin row distance 2=4.06mm，pins distance =5.08mm.This is our latest product developed for customers, which can be used for computer power supplies, adapters, etc. The ETD29 transformer can also be used to convert mains power into low-voltage DC power required by equipment, providing stable power supply for internal circuits..If you have any technical questions, please feel free to communicate with us at any time.
ETD34 High Frequency Transformer Frame
ETD34 coil bobbin, 15+15 pins ETD34 horizontal transformer. Parallel Distance=30.0mm. Pin pitch=2.54mm. Bobbin Size=40.0mmX39.2mmX27.0mm. ETD34 soft ferrite core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
16+16 Pins Horizontal ETD34 Transformer
ETD34 main transformer, 16+16 pins horizontal ETD34 bobbin. Parallel Distance=25.4mm. Pin pitch=2.54mm.Bobbin Size=41.8mmX38.6mmX30.04mm. ETD34 core transformer with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
ETD34 High Power Transformer Bobbin
ETD34 SMPS transformer bobbin,16+16 pins lead free bobbin. ETD34 transformer frame, Parallel Distance=32.0mm. Pin pitch=2.54mm. Bobbin Size=41.8mmX38.6mmX30.04mm. We manufacture final ETD34 transformer for customer, with high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments.
