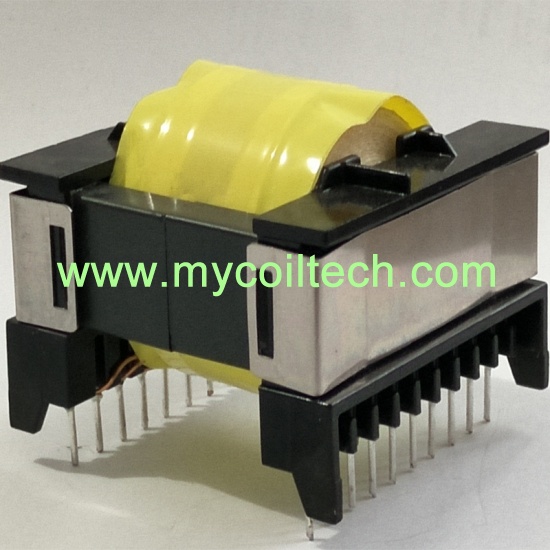

ETD49 horizontal switching mode power transformer. Switch power supply transformer ETD49 ferrite cores. It has high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.
brand:
MCTitem no.:
Flexible SMPS-Transformer ETD49shipping port:
ShanghaiNew designing ETD49 flexible SMPS transformer, horizontal bobbin 10+10 pins with ferrite core, we can design and make samples for the testing, if you have any requests, welcome to contact us.
Quick Details
|
Part No: Flexible SMPS-Transformer ETD49 |
Brand name: MCT |
|
Insulation test voltage: 3750V |
Custom made: Available |
|
Low leakage inductance |
Logo: Can be customized |
|
Transformer with multi-winding |
Packing: Carton, can custom |
|
Operating temperature -40°C~+125°C |
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
OEM: Available |
|
Lead time: 25 days after payment |
Shipping: Air, Ship, etc |
Part Information
Product Name: ETD49 10+10 Pin Horizontal High Frequency Switch Mode Power Transformer
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

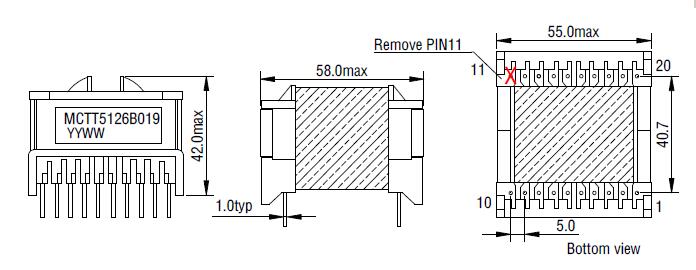

Product Specifications
Electrical Data and Part Number(PN)
|
L1 in uH |
L1 in A |
Lsat in A |
DCR/mΩ |
MCT PN |
|
50 |
30 |
35 |
15 |
MCTT5126B019 |
If you have any request, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
TEL: +86 551 6619 6829
