EFD20 Horizontal High Frequency Switching Mode Power Supply Transformer

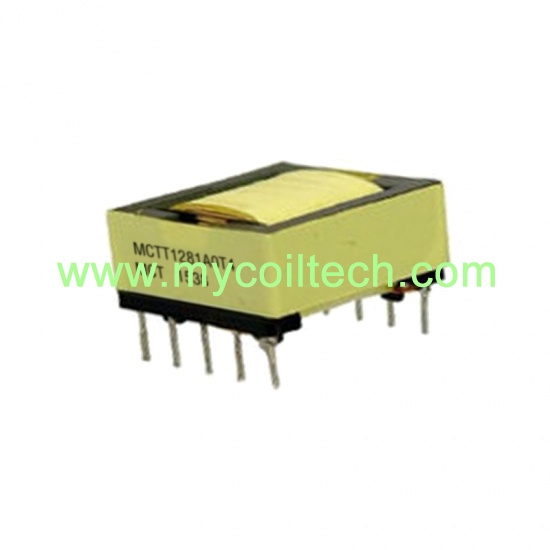

EFD20 horizontal transformer with DIP coil former. Switching mode power supply transformer has high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

  • brand:

    MCT
  • item no.:

    Flexible SMPS-Transformer EFD20
  • shipping port:

    Shanghai
contact now
product description

Transformer factory hot selling switching power supply transformers, best quality and low price, if you don't find the drawings with the appropriate parameters on our website, please be free to contact us, we can design for you according to your requirements.


Quick Details

Part No: Flexible SMPS-Transformer EFD20

Brand name: MCT

Insulation test voltage: 500V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with 6 winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: EFD20 Horizontal High Frequency Switching Mode Power Supply Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

EFD20 transformer with horizontal bobbin 6+6 pin


Electrical Data and Part Number(PN)

L1..Lin uH

L1..Lin mA

Lsat in mA

DCR/

MCT PN

10.0

1800

1200

30

MCT-CBB-B10

5.5

1800

2500

30

MCT-CBB-B05

4.5

1800

2900

30

MCT-CBB-B04

3.5

1800

4200

30

MCT-CBB-B03


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
