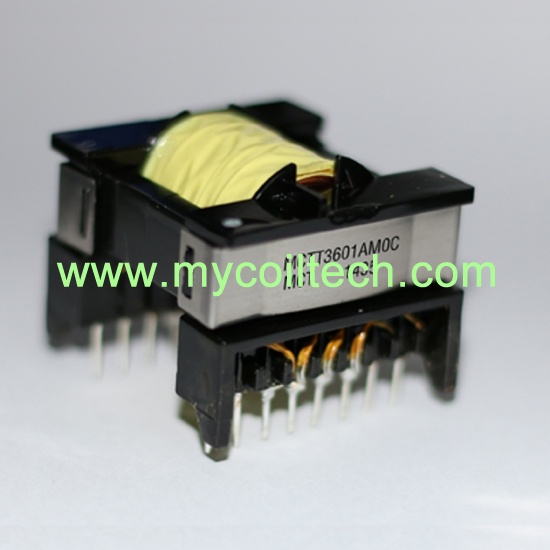

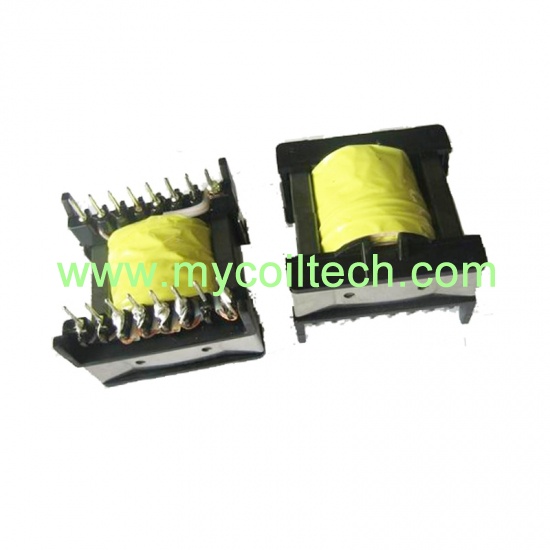

ETD29 High Frequency Switching Mode Power Supply Transformer

High frequency transformer ETD29. 7+7 pins ETD29 horizontal transformer bobbin. It has low leakage inductance, high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

  • brand:

    MCT
  • item no.:

    Flexible SMPS-Transformer ETD29
  • shipping port:

    Shanghai
contact now
product description

Hot selling high frequency transformers, SMPS transformers, high current transformers, factory price and best quality, we are professional transformer factory, we have more than 10 years manufacturing experience, we also can design transformers according to customer's requirements.


Quick Details

Part No: Flexible SMPS-Transformer ETD29

Brand name: MCT

Insulation test voltage: 3750V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with multi-winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: ETD29 High Frequency Switching Mode Power Supply Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

ETD29 high frequency transformer factory

Electrical Data and Part Number(PN)

Lp in uH

L1..Lin mA

Lsat in mA

DCR/

MCT PN

75.0

2200

400

45

MCT-ED075

45.0

2200

820

45

MCT-ED045

25.0

2200

1850

45

MCT-ED025

15.0

2200

3050

45

MCT-ED015


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829

Request a Free Quote

If you are interested in our products or have any questions, contact us now!
