 /Switching Mode Power Supply Transformer EFD15 SMD Transformer
categories
Left banner
new products
  • 8+8 pin EE65 transformer Bobbin
    EE65 High Power Transformer Horizontal Frame

    EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.

  • 6+6 Pins EF30 Vertical Bobbin
    EF30 Power Transformer Vertical Bobbin 6+6 Pin

    EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.

  • PQ50 Electronic Transformer Bobbin
    PQ50 Vertical High Frequency Transformer 6+6 Pin Bobbin

    6+6 pins PQ50 coil former. PQ phenolic material bobbin. Bobbin Seize=51.5mmX50.8mmX51.5mm. Parallel Distance=45.65mm. PQ50 Vertical bobbin for power transformer. Make bobbin tooling.

  • Electronic Impedance Matching and Maximum Power Transformers
    High Frequency Matching Transformer for Switching Power Supplies

    High Frequency Electronic Matching Transformers are intended for measuring electric signal voltages or currents which contain useful data. They match the signal source with the load ensuring the minimum signal distortion. Along with active components (such as transistors and lamps) they are included into devices amplifying electric oscillations that work within a wide frequency band.

EFD15 6+6 Pin High Frequency Transformer

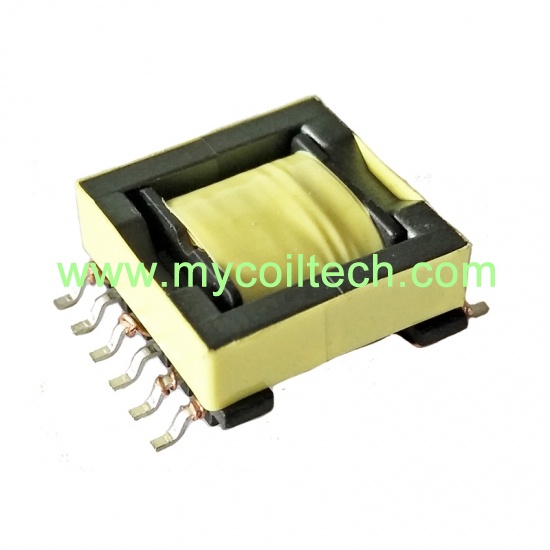

Switching Mode Power Supply Transformer EFD15 SMD Transformer

EFD15 switching mode power supply transformer has high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

  • brand:

    MCT

  • item no.:

    Flexible SMPS-Transformer EFD15

  • shipping port:

    Shanghai
contact now
product description

We are professional transformer factory, we manufacturing various high frequency switching mode power supply transformers, we can design according to customer's requirements, our SMPS transformer widely used in UPS uninterruptible power supply, charging pile power supply device, flyback converters, high frequency induction heating power, communication equipment,etc. If you are interested in our transformers, welcome to contact us.


Quick Details

Part No: Flexible SMPS-Transformer EFD15

Brand name: MCT

Insulation test voltage: 500V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with 6 winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: Switching Mode Power Supply Transformer EFD15 SMD Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

Hot sale EFD15 SMPS transformer


Electrical Data and Part Number(PN)

L1..L6 in uH

L1..L6 in mA

Lsat in mA

DCR/mΩ

MCT PN

23.0

965

320

140

MCT-CBA-B23

14.5

965

615

140

MCT-CBA-B14

9.0

965

1075

140

MCT-CBA-B09

8.0

965

1300

140

MCT-CBA-B08


If you have any request, please contact us, we will give you fast reply.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829
