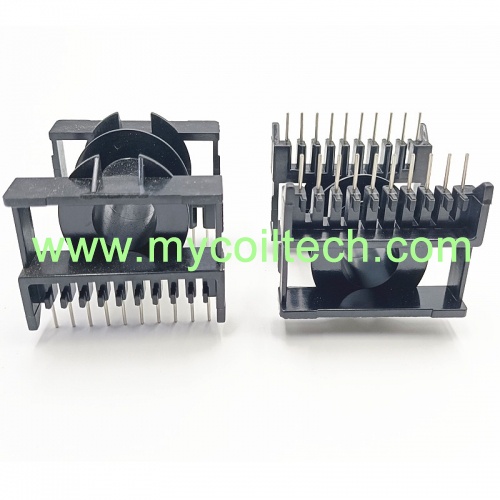

ETD49 High Frequency SMPS Transformer Horizontal BobbinETD49 coil bobbin for transformer. Horizontal ETD49 bobbin with 20 pins. Bobbin Size=54.0mmX46.0mmX40.0mm. Pin distance=5.0mm. Parallel Distance=40.6mm. Lead free transformer bobbin. DIP bobbin. -
ETD34 LED Lighting Driver Power Supply Transformer Bobbin 6+6 PinsETD34 Switching Power Supply Bobbin,The ETD49 phenolic transformer bobbin is heat-resistant, flame-retardant, and offers excellent insulation stability. It is primarily designed for high-power switching power supply applications and is suitable for the manufacture of high-frequency transformers in PC power supplies, server power supplies, and industrial AC-DC power supplies. It provides insulation and isolation for windings, withstands prolonged temperature rises, and meets safety standard withstand voltage requirements, making it a core component for magnetic elements in medium- to high-power power supplies. -
Flyback Transformer ETD29 Horizontal Coil FormerHigh voltage ETD29 transformer. Ferrite core ETD29 bobbin 6+6 pins single slot bobbin. Parallel Distance=25.6mm.Pin pitch=5.08mm. Bobbin Size=35.2mmX33.5mmX24.9mm. We manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments. -
High Frequency Transformer ETD59 Ferrite Core Bobbin9+13 pins horizontal ETD59 bobbin. Multi section coil former. Parallel Distance=51.4mm. Pin Pitch=5.08mm. Bobbin Size=66.8mmX66.2mmX48.95mm. PET material transformer bobbin. UL REC:94V-0 -
ETD39 Multi Slot Flyback Transformer Bobbin 8+8 PinsThe ETD3920 power switch driver transformer bobbin utilises PHENOLIC resin, offering high-temperature resistance and dimensional stability. It withstands prolonged exposure to 180°C without deformation. Featuring superior insulation properties and UL94 V-0 flame retardancy, it possesses high mechanical strength, vibration resistance, and chemical corrosion resistance, making it suitable for high-frequency, high-voltage applications. -
ETD59 High Frequency Flyback Transformer Vertical FrameETD59 vertical high frequency bobbin. Main power transformer PET bobbin 12+12 pin. Bobbin Size=73.1mmX39.6mmX65.7mm. Pin pitch=5.0mm. Parallel Distance=35.5mm. We produce and design various electronic transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments. -
High Frequency ETD34 Power Transformer FrameETD34 switching power transformer. Customized high frequency ETD34 bobbin pin 7+7. Bobbin Size=39.6mmX23.3mmX43.2mm. Pin pitch=5.08mm. Parallel Distance=22.86mm. We supply ETD34 ferrite cores and transformers. ETD34 flyback transformer widely used in server,power supply,amplifier,electrical equipments,LED drive supply, etc. -
EVD36 Horizontal Electronic Transformer Bobbin 6+6 L PinsOrizontal EVD36 High-Frequency Transformer Bobbin,onstructed from phenolic material, this bobbin exhibits a high temperature resistance of up to 370℃. When exposed to heat, it forms a carbonized layer that provides thermal insulation and flame retardancy, effectively accommodating the temperature rise generated during the high-frequency operation of EVD36. -
ETD3416 Electronic Transformer Bobbin 16+16 PinsNEV Power Drive Transformer Bobbin Made of phenolic material, this bobbin can resist temperatures as high as 370℃. When heated, it forms a carbonized layer to block heat and retard flames, easily handling the heat buildup from ETD34 shigh-frequency work. -
ETD39 Vertical High Frequency Electronic Transformer Bobbin 7+7 PinsNew energy vehicle power drive transformer bobbin,This material, when used in PHENOLIC, can withstand a high temperature of 370℃. When heated, it forms a carbonized layer that blocks heat and is flame-retardant, capable of withstanding the temperature rise during the high-frequency operation of ETD39. The dielectric strength reaches 10KV/mm, with stable insulation at high frequencies and a fire resistance rating of 94V-0, making it suitable for industrial high-load scenarios. -
Switching Power Supply Vertical Transformer Bobbin 6+6 pinsUPS power switch transformer bobbin,This product is made of bakelite material. Its thermosetting cross-linked structure enables it to withstand a temperature of 370℃ and maintain high strength even in a 90℃ working environment, effectively resisting the temperature rise during the operation of transformers. Moreover, its dielectric strength reaches 10KV/mm, with low dielectric loss at high frequencies and stable insulation performance, effectively avoiding the risk of electrical breakdown between the winding and the core. -
ETD30 Switching Power Supply Transformer Bobbin 6+6PinsVehicle-mounted DC-DC converter bobbin,Compatible with vehicle-mounted 12V/24V conversion, ETD transformer resistant to engine vibration, high frequency and low noise. bobbin is oil-resistant, resistant to high and low temperatures, isolates high-voltage circuits, and ensures stable power supply for car navigation and audio systems. -
Household Appliance Horizontal Transformer Bobbin 7+3 PinsMedical equipment power switch transformer bobbin,It is compatible with the power supply of monitors and ultrasonic equipment. The ETD transformer has strong insulation and isolation performance and complies with medical electrical standards. bobbin flame-retardant UL94 V-0 grade, resistant to alcohol disinfection, free of volatile substances, ensuring the safety and sterility of power supply for medical equipment. -
ETD25 Vehicle mounted motor Horizontal Transformer BobbinPhotovoltaic inverter drive transformer bobbin,It is used for DC-AC conversion in inverters. The ETD transformer is resistant to outdoor ultraviolet rays and features high frequency and high efficiency. bobbin is resistant to moisture and heat. The fixed magnetic core and winding prevent loosening. It is compatible with the wide voltage input of solar panels and improves the power generation efficiency. -
Automobile Power Transformer Bobbin 5+5 PinsIndustrial switching power supply ETD transformer bobbin, ETD bobbin is compatible with 100-500W switching power supplies. The ETD transformer features high frequency and low consumption (50kHz-200kHz), with a power density of 30W/in³.bobbin precisely fixed windings have excellent insulation, can withstand temperatures up to 120℃, ensure power supply for machine tools and frequency converters, and are stable and anti-interference. -
ETD49 Power Transformer Bobbin Phenolic CoverETD49 transformer cover for bobbin, produce 10+10 pins ETD49 bobbin two slots. Cover Size=51.8mmX50.3mmX33.5mm. Phenolic material ETD49 electronic transformer cover. We manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment. -
ETD49 High Voltage Horizontal Transformer BobbinETD49 flyback transformer horizontal coil bobbin, 10+10 pins ETD49 bobbin two slots. Bobbin Size=48.5mmX47.0mmX33.5mm. Pin pitch=5.0mm. Parallel Distance=42.5mm. Phenolic material ETD49 electronic transformer frame. We manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment. -
ETD34 Vertical Smart Door Lock Transformer BobbinThe Computer power switch transformer bobbin material uses phenolic resin, which has a volume resistivity as high as 10¹⁴Ω · cm, a dielectric strength above 70-90kV/mm, and excellent arc resistance performance (> 180 seconds). Although its relative tracking index (CTI) is lower than that of the new type of nylon, it can be further increased to over 600V by coating the surface with epoxy adhesive, meeting the requirements of industrial standards for insulation reliability. -
ETD49 Power Transformer Ferrite Core BobbinPCB power transformer ETD49 bobbin 10+10 pins two slots. Bobbin Size=57.0mmX54.0mmX40.7mm. Pin pitch=5.0mm. Parallel Distance=41.0mm. High frequency transformer frame. Manufacture transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments. -
UPS Power ETD 39 Coil Former Horizontal 7+7 PinsETD39 Medical instrument multi slots stransformer frame ,7+7pins ETD39 horizontal bobbin,ETD39 coil former size=39.20mmX27.90X43.80mm.Pin row distance=39.30mm,Pin distance =5.80mm.Our product is resistant to high temperatures and can maintain structural stability at high temperatures; Good electrical insulation, can effectively block current and prevent leakage. And it has high mechanical strength, resistance to impact vibration, and can withstand operating stress; Resistant to chemical corrosion and not easily corroded by oils and other substances, we also use ETD39 transformer covers made of the same material. Our factory provides customized services, and you can contact us at any time if you have any questions -
ETD49 Horizontal High Frequency Transformer Bobbin 10+10 PinsIndustrial frequency converter transformer bobbin ,ETD49 coil former size=57.20mmX54.50X41.70mm.Pin row distance=40.64mm,Pin distance =5.00mm.High frequency transformer frame, this is our latest injection molded product. We have experienced engineers/professional technical teams who can customize finished transformers to meet customer prototype design needs. If you have any technical questions, please feel free to communicate with us at any time. -
LLC Power Horizontal Transformer Bobbin 22+22 PinsETD39 horizontal High frequency stransformer frame 22+22 pins ,ETD39 coil former size=59.20mmX36.40X29.00mm.Pin row distance=39.30mm,Pin distance =2.54mm.This material, with its high insulation, heat resistance, dimensional stability, and process adaptability, has become the best insulation structural material, especially in high-frequency, high-temperature, and high reliability scenarios, which can effectively ensure the electrical safety and long-term stable operation of transformers. This is the fundamental advantage of our product. If you would like to learn more about our products, please feel free to contact us at any time. -
ETD29 Horizontal Coil Former 6+6+6+6 PinsETD29 Switching Power Transformer Frame ,ETD29 coil former size=33.60mmX31.10mmX28.96mm.Pin row distance=25.40mm,Pin row distance 2=4.06mm,pins distance =5.08mm.This is our latest product developed for customers, which can be used for computer power supplies, adapters, etc. The ETD29 transformer can also be used to convert mains power into low-voltage DC power required by equipment, providing stable power supply for internal circuits..If you have any technical questions, please feel free to communicate with us at any time. -
ETD39 Horizontal Computer Transformer Frame 8+8 PinsETD39 LLC power horizontal transformer bobbin 8+8 pins ,ETD29 coil former size=44.00mmX44.50mmX31.7mm.Pin row distance=30.40mm,pins distance =5.00mm.This product has excellent insulation performance, resistance to high and low temperatures and chemical corrosion, high mechanical strength, and is not easily deformed; Good flame retardancy can enhance equipment safety; Low high-frequency losses enhance the stability and service life of transformers. -
ETD54 High Voltage Power Transformer 11+11 Pin BobbinFlyback transformer ETD54. 11+11 pins vertical ETD54 single slot bobbin. Bobbin Size=67.7mmX36.6mmX61.9mm. Pin pitch=5.08mm. Parallel Distance=33.02mm. ETD54 bobbin PBT material, high frequency transformer widely used in charger, power supply, fax machines, monitor, scanner, UPS and other electronic equipments. -
ETD34 High Frequency Flyback TransformersETD34 SMPS transformers, power range 15~90W, with high operation voltage,large output power and thermal stability. We provide samples for prototype testing, welcome custom. -
ETD44 High Frequency Transformer Vertical BobbinETD44 transformer frame. Ferrite core ETD44 9+9 pin vertical bobbin. Bobbin Size=44.5mmX31.8mmX47.9mm. Parallel Distance=27.5mm. Pin pitch=5.0mm. We manufacture electronic transformers for PCB mount. Most of products are accept custom design and OEM service according to the requirements of the customers. -
ETD34 Power Supply Transformer BobbinETD34 SMPS transformer bobbin. 7+7 pins horizontal ETD34 coil former. Pin pitch=5.08mm. Parallel Distance=25.40mm. Bobbin size=40.0mmX38.5mmX30.5m. Phenolic PM9630 material ETD34 bobbin, new designed ETD34 injection tooling, we manufacture ETD34 electronic transformers. -
ETD34 PCB Mounting Transformer Split BobbinETD34 double slots bobbin. Horizontal ETD34 bobbin 6+6pins, coil former size=32.5mmX32.0mmX25.4m. Pin pitch=5.5mm. Parallel Distance=28.0mm. Phenolic material ETD34 bobbin, we have various multi section ETD34 bobbin toolings and provide new bobbin tooling service to meet requirement, customized ETD34 transformer also welcome.
