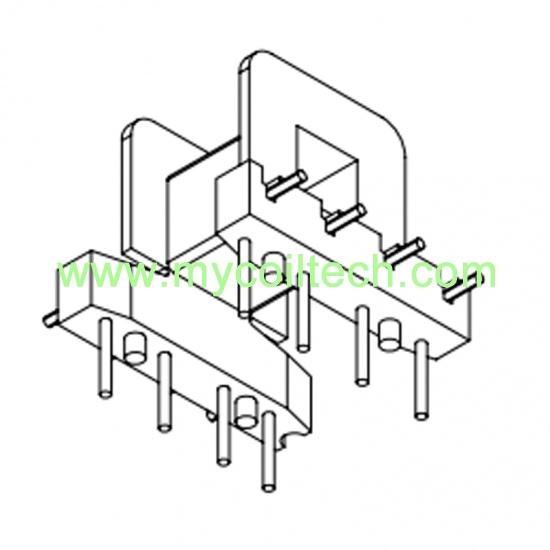

Horizontal Transformer Bobbin for EE19 Charging Pile 4+4 Pins

EE19 Low voltage electrical control circuit coil former 4+4 L pins. Coil former size=16.60mmX19.00mmX15.80mm, pin distance =5.00mm.This product can be used in small relay modules, solenoid valve control boards, etc. Its control coil requires 12V or 24V low-voltage power supply. The EE19 transformer can be used as an isolation transformer to convert the mains power to the corresponding voltage, while isolating the strong current and weak current circuits to prevent high voltage from entering the control circuit and causing damage.

product origin:
China
brand:
MCT
item no.:
MCT-EE1945-3

contact now

product description

Transformer bobbin for EE19 intelligent sensor power supply module，The temperature and humidity sensors, human infrared sensors, smoke alarms and other devices in smart homes usually need to be powered by low-voltage direct current (such as 5V, 12V), and the devices themselves are small in size. The EE19 transformer can be integrated into the power module of the device, converting household 220V AC power into safe low voltage. At the same time, it reduces electromagnetic interference through high-frequency design to avoid affecting the detection accuracy of the sensor.

Production Specification

EE19 High frequency electronic transformer
