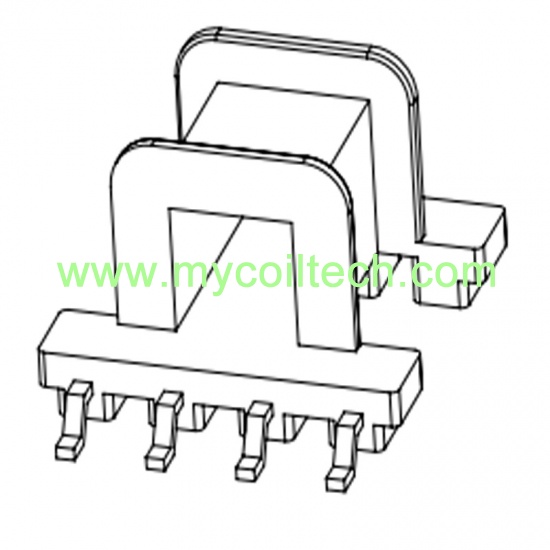

Power Switching SMD EE10 Horizontal Transformer Bobbin 4+4Pins. Coil former size=10.00mmX9.40mmX6.00mm, pin distance =2.50mm. As the core element of mobile phone charger (such as 5V/1A scheme) and router power module, EE10 supports 20kHz - 300kHz high-frequency operation and adapts to fast charging requirements of USB PD protocol. The magnetic core size can increase the PCB layout density by 40%, especially suitable for small-sized equipment such as TWS earphone charging box.
product origin:
Chinabrand:
MCTitem no.:
MCT-SMD-EE1001MOQ:
5000SMD EE10 Vehicle mounted system transformer babbin 4+4 pins，It is applicable to the power module of on-board OBD diagnostic tool and supports 9-36V wide input voltage range. The anti-vibration performance of SMD package (in accordance with IEC 60068-2-6 standard) can withstand mechanical vibration (10-2000Hz, 20g) during driving.

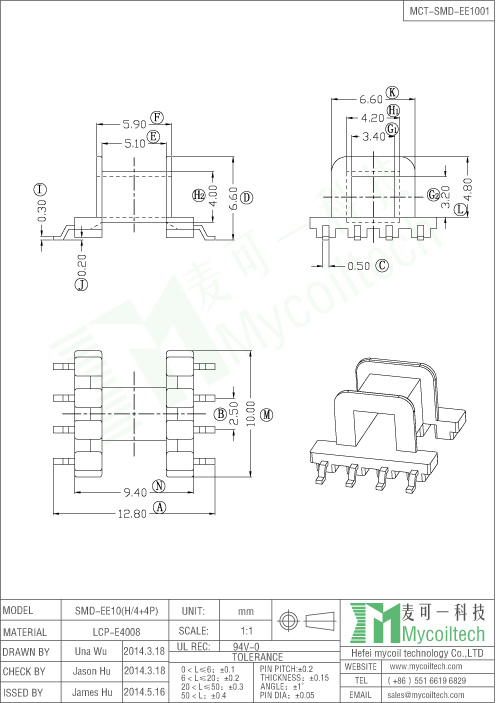

Production Specification
Contact us today to explore bulk orders or request technical specifications.
Email: sales008@mycoiltech.com
WeChat ID: MCT008Alex
