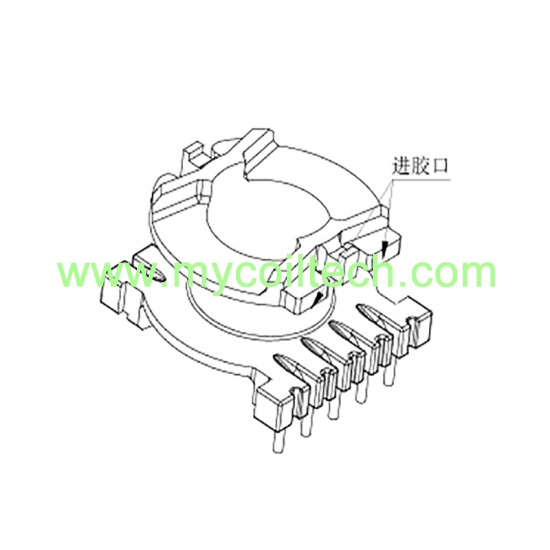

Best selling product ，Smart electricity meter PQ20 transformer bobbin. Coil former size=18.7mX16.6mmX11.15mm,The applications are mainly concentrated on low-power devices such as notebook adapters and small LED power supplies. Relying on the "small volume and high power" advantages of the PQ series, it can reduce the space occupied by the PCB and meet the compact design requirements of portable electronic devices.
product origin:
Chinabrand:
MCTitem no.:
MCT-PQ2019MOQ:
5000Router power module PQ20 transformer bobbin，The application fields cover power supplies for communication terminals, drive transformers for small industrial control equipment, etc. With the low-loss feature of the PQ series, the temperature rise of the equipment can be reduced, ensuring the stability of power supply for precision electronic devices.
Production Specification
Contact us today to explore bulk orders or request technical specifications.
Email: sales008@mycoiltech.com
WhatsApp ID: +86 18788862885
Name：Alex~Mycoiltech
PQ32 LLC Resonant Transformer Bobbin
Vertical PQ32 coil bobbin. Single slot PQ32 bobbin 6+6pins. Bobbin Size=33.8mmX31.8mmX32.7mm. Pin pitch=5.0mm, parallel distance=22.8mm, we custom special bobbin tooling to meet size requirements, samples can be sent for testing.
PQ35 High Frequency Transformer Bobbin
PQ35 power transformer bobbin, 6+6 pins PQ32/30 vertical bobbin, single slot PQ35 coil former. Row distance=35.8mm. Bobbin Size=39.3mmX34.96mmX32.0mm. Pin pitch=5.0mm. PQ35 bobbin for high frequency transformer, used in power suppliers, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipment.
PQ32 High Frequency Transformer Bobbin 6+6 Pins
PQ32 ferrite core bobbin, 6+6 pins PQ32 SMD bobbin. Coil former size=43.5mmX32.2mmX18.95mm, parallel distance=35.5mm, pin distance 1=7.5mm. pin distance 2=5.0mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26/25 High Voltage Transfomer Frame 6+4 Pins
PQ26 horizontal coil bobbin, 6+4 pins PQ26 through hole bobbin. Coil former size=29.8mmX26.4mmX27.5mm, parallel distance=26.3mm, pin distance =5.0mm, pin distance 2 =4.5mm. PQ26 electronic transformers are used for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.
PQ26 High Frequency Transformer Bobbin 2+2 Pins
PQ26 ferrite core bobbin, 2+2 pins PQ26 vertical bobbin. Coil former size=22.0mmX14.0mmX22.0mm, parallel distance=18.0mm, pin distance=6.0mm. We can custom final transformers with specific parameters for different applications, such us UPS, charges, printers, etc.
