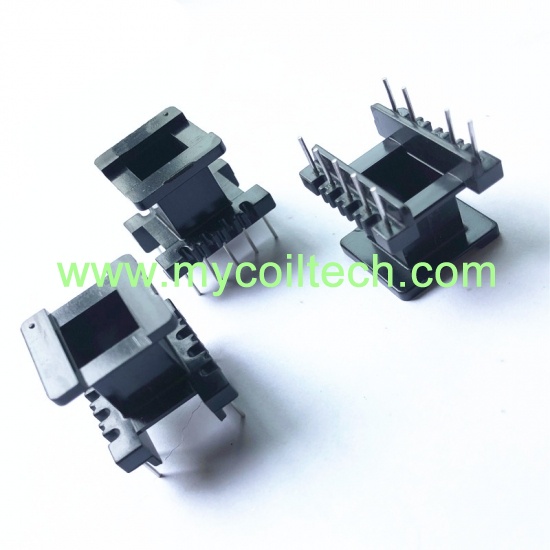

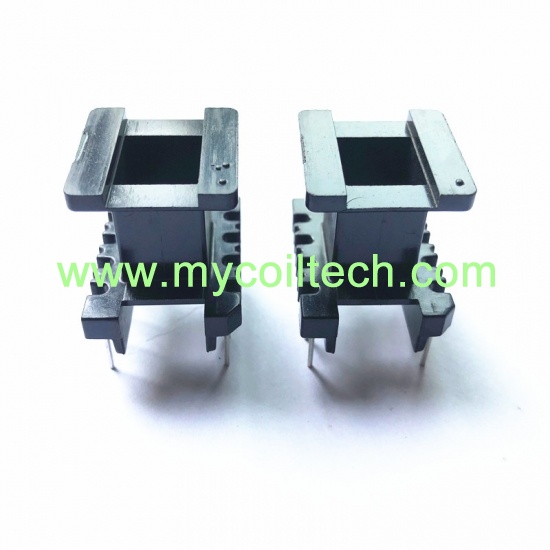

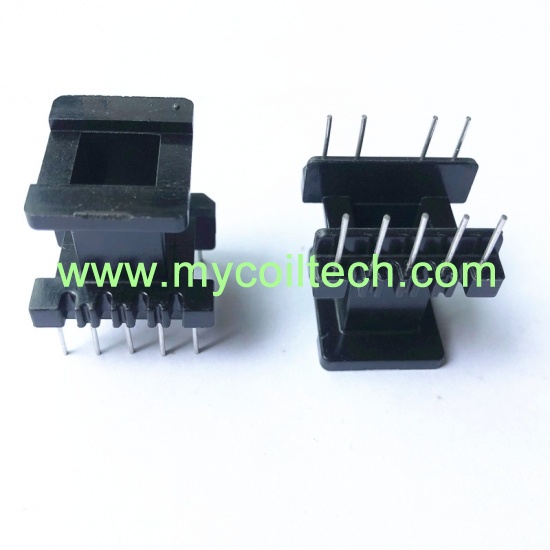

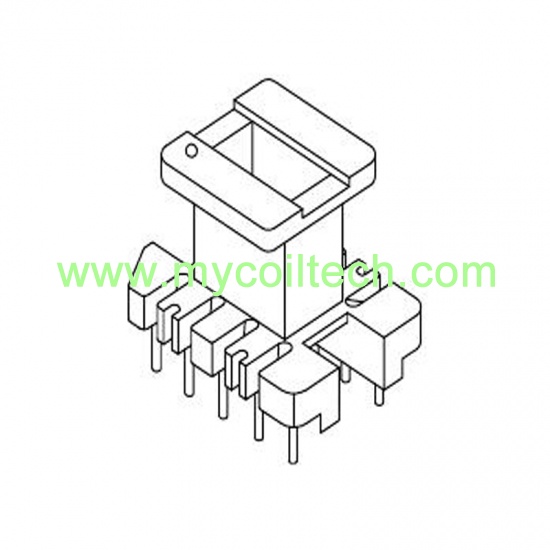

Power supply EE30 transformer. Vertical EE30 coil former pin 5+5. Bobbin Size=25.9mmX21.8mmX23.9mm. Pin pitch=5.0mm. Parallel Distance=17.5mm. Low voltage and low frequency EE30 electronic winding transformer.
brand:
MCTitem no.:
MCT-EE3011shipping port:
Shanghaipayment:
T/T in advanceprice range:
3000-5000/0.056$EE30 ferrite core bobbin with 5+5 pins, vertical shape winding bobbin. We manufacture final transformer for PCB assembly, samples can be sent for testing.
Quick Details
|
Part Number: MCT-EE3011(V5+5P) |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: PCB Mounting Transformer EE30 Vertical Bobbin
Product Range: Transformers,Inductors,Bobbins,Ferrite cores.
Applications: switching power supply,main power supply,high frequency transformers.
Samples time: 7-10 days for customized parts,3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

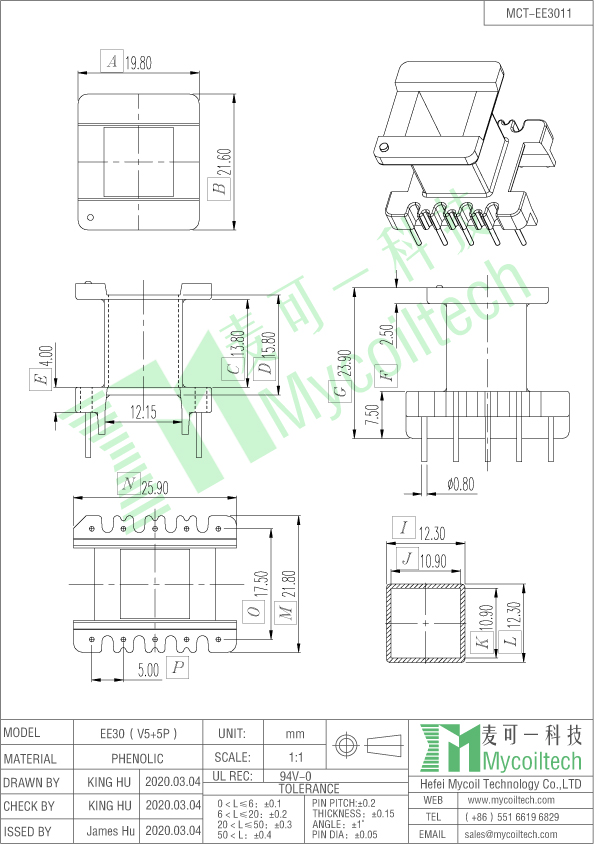

Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
