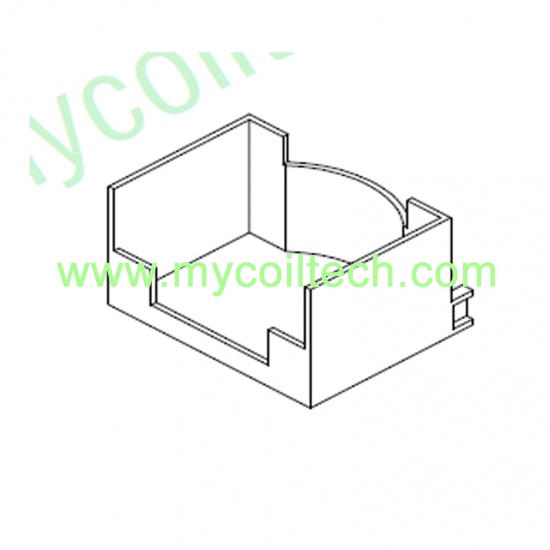

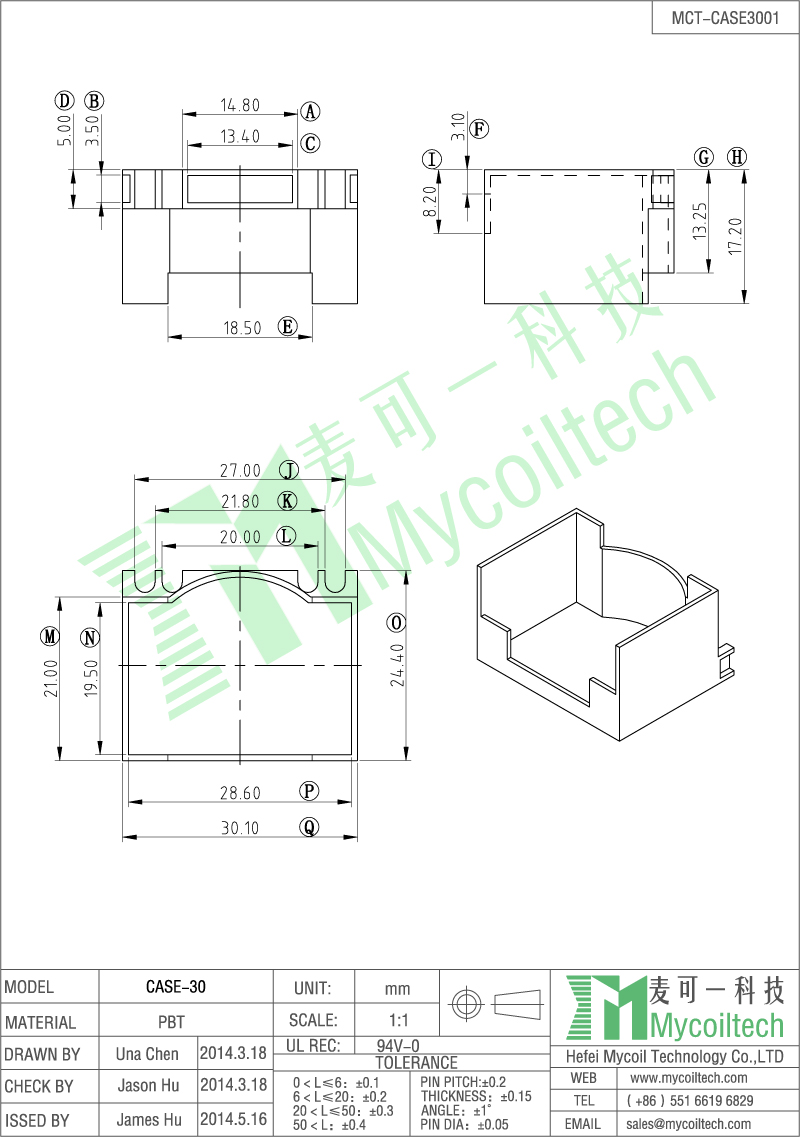

PCB Mounting Transformer PBT Material Case

Case for high frequency transformer. Power transformer and inductor manufacture. Phenolic material case for bobbin. Case Size=30.1mmX24.4mmX17.2mm. When transformer assembled by bobbin and magnet cores, we use case to cover the transformer.

product origin:
China
brand:
MCT
item no.:
MCT-CASE3001
shipping port:
Shanghai
payment:
T/T in advance
price range:
1000-5000/0.039$

contact now

product description

Factory hot selling transformer case for bobbin, competitive price and free samples.

Quick Details

Part No: MCT-CASE3001	Brand Name: MCT
Material: PBT	Color: Black
UL REC: 94V-0	Logo: Can be customized
Lead Time: 20 days after payment	Custom Made: Available
Certification: ISO9001,ROHS,CE	Packing: Carton, accept customize
OEM: Available	MOQ: Any quantity
