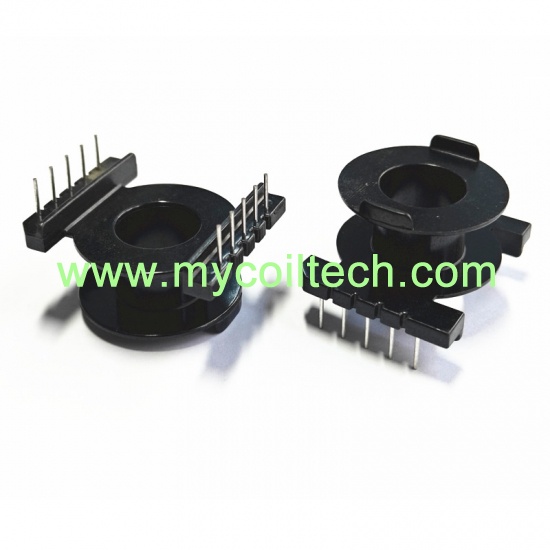

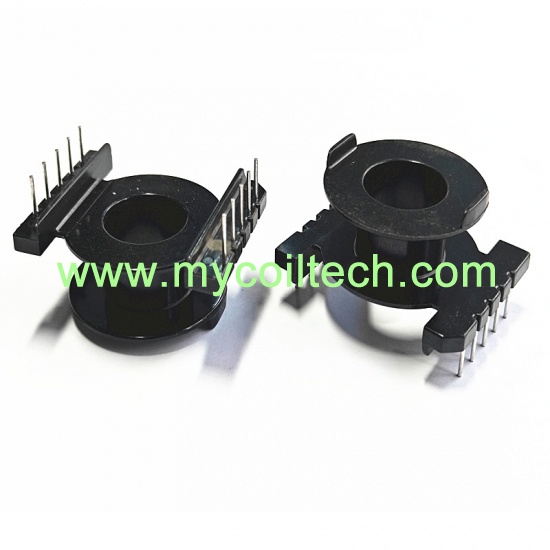

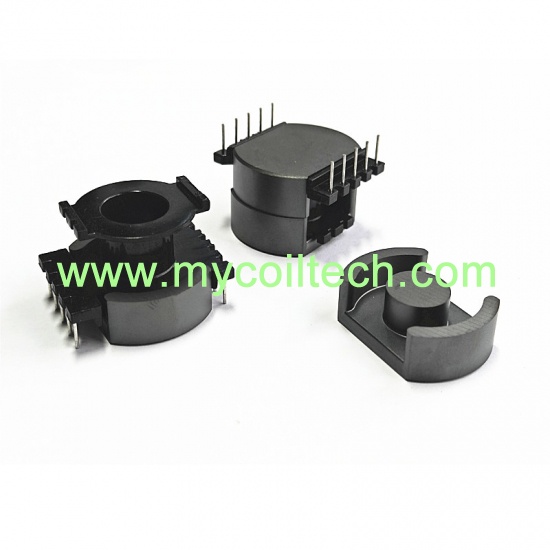

POT33/19 ferrite core bobbin. 5+5 pins POT33 DIP coil former. Bobbin Size=37.0mmX25.0mmX16.7mm. Pin pitch=4.0mm. Parallel distance=33.5mm, Pin pitch=5.0. POT33/19 phenolic transformer bobbin. Manufacture final POT33 electronic transformers.
brand:
MCTitem no.:
MCT-POT3302shipping port:
Shanghaipayment:
T/T in advanceNew design POT33 transformer frame, 5+5 pins vertical POT33 coil former, samples can be sent for testing.

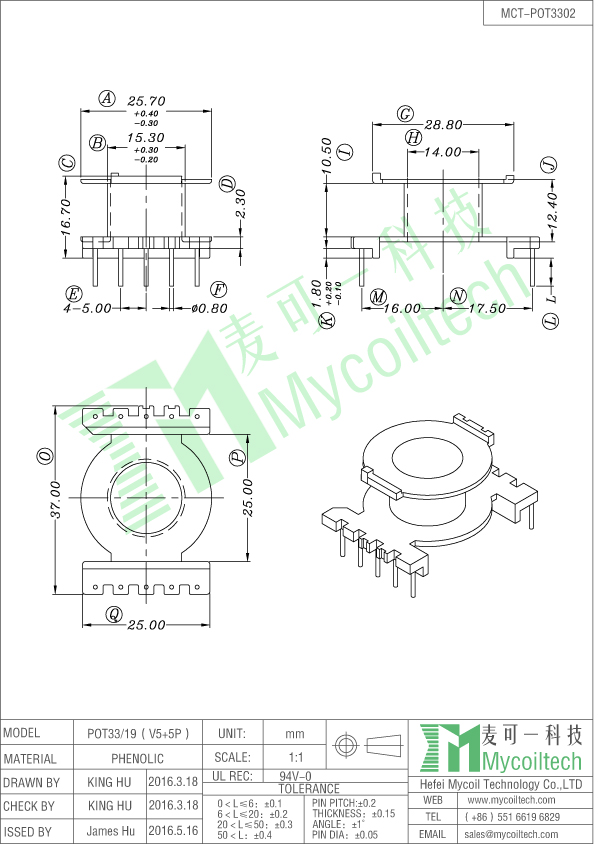

Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
POT30 Electronic Transformer 5+5 Pins Vertical Bobbin
5+5 Pins POT30 electronic transformer bobbin.10 Pins vertical transformer bobbin.Parallel Distance=29.5mm. Bobbin Size=33.2mmX25mmX17.65mm. Phenolic bobbin. UL REC:94V-0.
POT23 High Frequency Power Transformer Bobbin
Supply POT23 vertical coil bobbin. 5+5 pins single slot POT transformer bobbin. Bobbin Size=22.5mmX18.8mmX8.1mm. Parallel Distance=20.4mm. Pin pitch=3.8mm. Phenolic bobbin. We have bobbin tooling, accept trial orders. UL REC:94V-0.
POT23 Power Supply High Frequency Transformer Frame
Current transformer manufacturer. 5+5 pins vertical POT transformer bobbin. Bobbin Size=23.7mmX19.2mmX7.0mm. Parallel Distance=20.2mm. Pin pitch=3.8mm. We are professional transformer bobbin factory, our bobbins are widely used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes
POT 23/18 Flyback Transformer Vertical Bobbin
LED driver transformer wholesale. POT23 5+5 pins vertical bobbin. Bobbin Size=23.5mmX22.0mmX16.5mm. Parallel Distance=20.5mm. Pin pitch=3.8mm. DIP transformer bobbin. We are professional transformer bobbin factory, our bobbins are widely used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes
POT25 Vertical 5+0 Pins Transformer Frame
POT25 EQ25 vertical bobbin 5+0 pins. Bobbin Size=24.0mmX23.0mmX14.5mm. Pin pitch=4.0mm. EQ25 transformer bobbin. We are professional transformer factory, we R&D transformers for customers project, OEM service are welcome.
