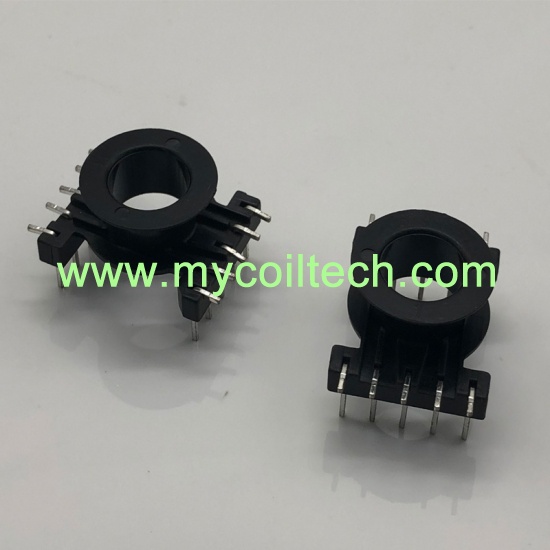

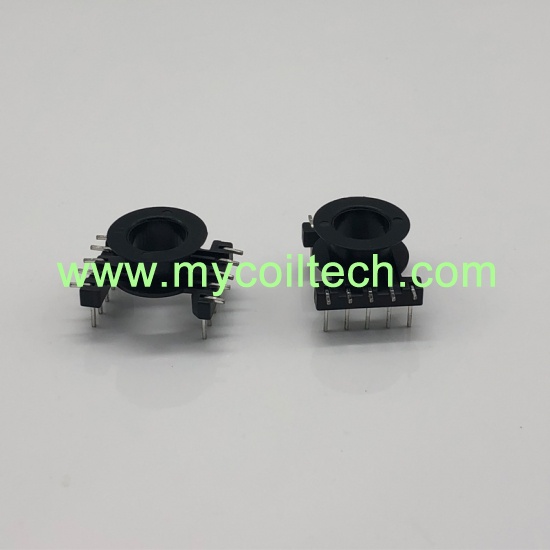

Supply POT23 vertical coil bobbin. 5+5 pins single slot POT transformer bobbin. Bobbin Size=22.5mmX18.8mmX8.1mm. Parallel Distance=20.4mm. Pin pitch=3.8mm. Phenolic bobbin. We have bobbin tooling, accept trial orders. UL REC:94V-0.
brand:
MCTitem no.:
MCT-POT2301shipping port:
Shanghaipayment:
T/T in advancePopular transformer bobbin, supply POT soft ferrite cores, welcome small orders.
Quick Details
|
Part No: MCT-POT2301 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: POT23 High Frequency Power Transformer Bobbin
Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: power supply,micro wave,household equipment,high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

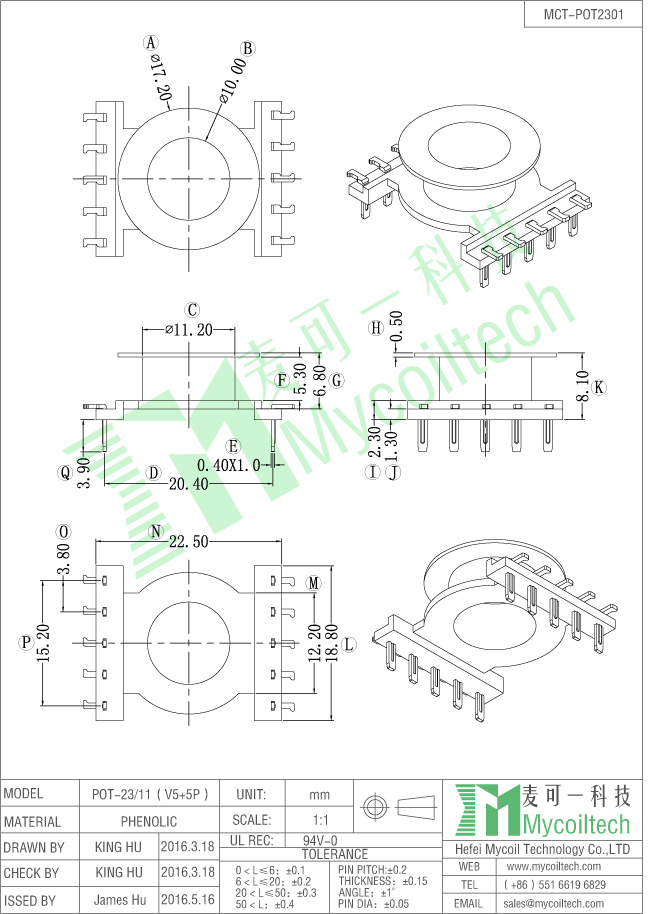

Product Specification
For more details, welcome to contact us:
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily

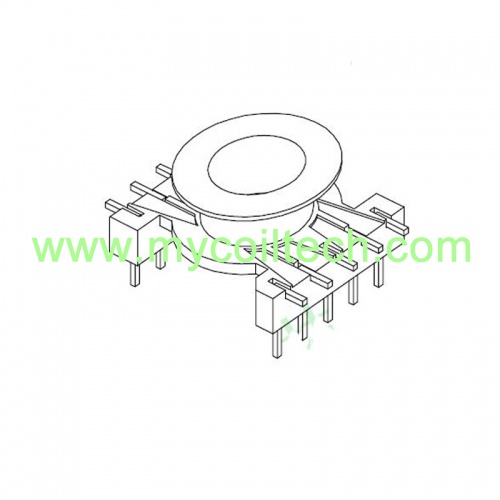

POT30 Electronic Transformer 5+5 Pins Vertical Bobbin
5+5 Pins POT30 electronic transformer bobbin.10 Pins vertical transformer bobbin.Parallel Distance=29.5mm. Bobbin Size=33.2mmX25mmX17.65mm. Phenolic bobbin. UL REC:94V-0.

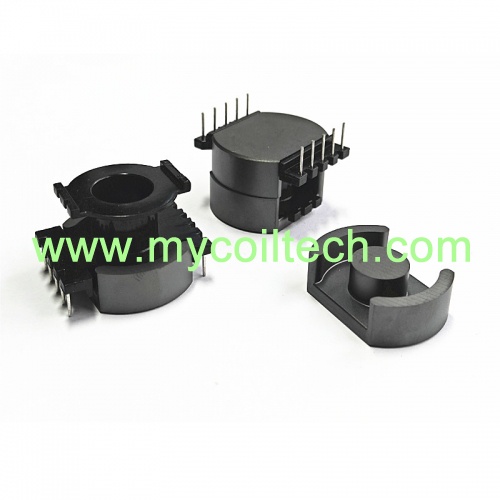

POT23 Power Supply High Frequency Transformer Frame
Current transformer manufacturer. 5+5 pins vertical POT transformer bobbin. Bobbin Size=23.7mmX19.2mmX7.0mm. Parallel Distance=20.2mm. Pin pitch=3.8mm. We are professional transformer bobbin factory, our bobbins are widely used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes
POT 23/18 Flyback Transformer Vertical Bobbin
LED driver transformer wholesale. POT23 5+5 pins vertical bobbin. Bobbin Size=23.5mmX22.0mmX16.5mm. Parallel Distance=20.5mm. Pin pitch=3.8mm. DIP transformer bobbin. We are professional transformer bobbin factory, our bobbins are widely used in high frequency line filters, smoothing choke coil, drive transformer, switching power transformers and chokes
POT25 Vertical 5+0 Pins Transformer Frame
POT25 EQ25 vertical bobbin 5+0 pins. Bobbin Size=24.0mmX23.0mmX14.5mm. Pin pitch=4.0mm. EQ25 transformer bobbin. We are professional transformer factory, we R&D transformers for customers project, OEM service are welcome.
T14*9*5 Plastic Transformer inductor Base 2+2 pin
Common mode choke inductor base. 2+2pin . Base Size=12.5mmX7.5mmX7.7mm. China transformer manufacturer.
EE25 High Voltage Transformer Vertical Frame
High frequency EE25 bobbin, 5+5 pins vertical transformer frame, Bobbin Pin Pitch=5.0mm. Parallel Distance=15.0mm. Bobbin Size=25.0mmX20.0mmX19.4mm. We manufacture EE25 electronic transformer, welcome customized coils.
EE30 Flyback Transformer Vertical Frame
3+3 pin EE30 vertical bobbin, multi slots coil transformer. Bobbin Size=21.5mmX19.0mmX24.5mm. Pin pitch=4.0mm. Parallel Distance=12.5mm. Low voltage and low frequency EE30 electronic winding transformer.
High Frequency Transformer EFD25 Coil Bobbin
EFD25 PCB mounting transformer bobbin. 5+5 pin EFD25 horizontal bobbin. Row distance=22.5mm. Pin pitch=5.0mm. Bobbin Size=25.9mmX25.2mmX13.6mm.EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments.
Horizontal Bobbin EE16 Transformer Bobbin Dip Bobbin With 5+5 Pins
5+5 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch=2.5mm Parallel Distance=13.6mm Size=15.8mmX15.5mmX14mm
6+6 Pin Vertical RM10 Electronic Transformer Bobbin
RM10 vertical type bobbin, DIP pin RM10 6+6 Pins coil former, phenolic RM10 transformer frame. Bobbin Size=28.3mmX21mmX14.9mm. Row distance=18.0mm, pin pitch=3.6mm. Manufacture RM10 main transformer, welcome OEM and customized transformer.
UU10.5 Transformer Case, Square Case Phenolic Material
Transformer Bobbin UU10.5 Case,Phenolic Material Case Size=16.9mmX9.4mmX4.5mm，UL REC:94V-0
EF20 Transformer Horizontal Bobbin With Wire Slot
5+5 pins EF20 coil bobbin. EF20 three slots horizontal coil bobbin. Bobbin Size=20.32mmX20.06mmX16.15mm. Pin pitch=3.81mm. Parallel Distance=17.5mm. EF20 transformer DIP bobbin. PA66 material transformer bobbin.
