PQ32 Flyback Transformer Vertical Bobbin

6+6 pins PQ32/30 coil bobbin, PQ32 high frequency transformer. Bobbin Size=34.5mmX33.0mmX30.7m. Pin pitch=5.0mm, parallel distance=30.0mm, Phenolic PQ32 bobbin for high frequency transformer, accept custom made and OEM service.

  • brand:

    MCT
  • item no.:

    MCT-PQ3222
  • shipping port:

    ShangHai
  • payment:

    T/T in advance
contact now
product description

PQ32/30 vertical transformer 6+6 pins bobbin, single slot PQ32 coil former, supply matched PQ32 ferrite cores.


Product Specification

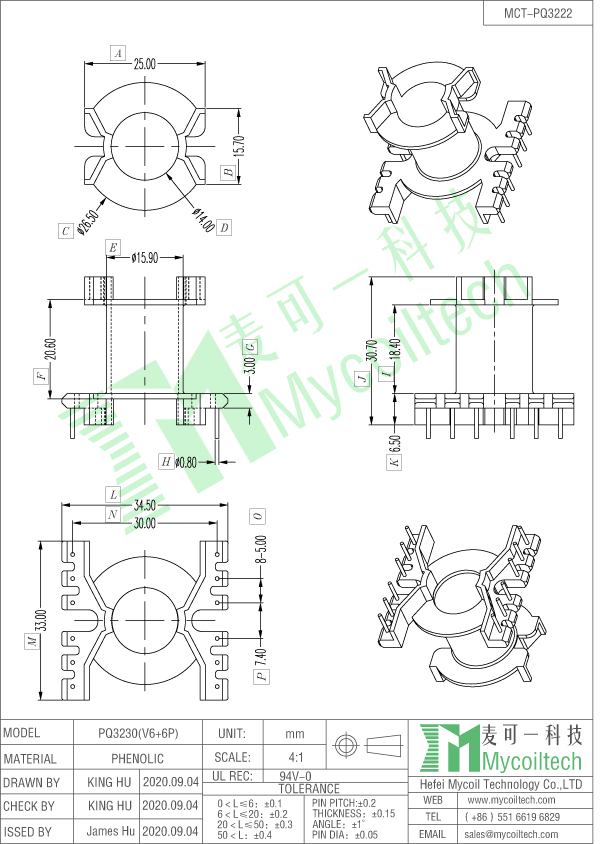

PQ32/30 ferrite core bobbin


We manufacture high frequency transformers, if you have any needs, pls be free to contact us:

Email: sales003@mycoiltech.com

Skype: live:sales003_125

Contact: Miss Lily

Request a Free Quote

If you are interested in our products or have any questions, contact us now!

  • Subject :

    PQ32 Flyback Transformer Vertical Bobbin
  • item no :

    MCT-PQ3222
  • You can contact us any way that is convenient for you. We are available 24/7 via fax, email or telephone.
