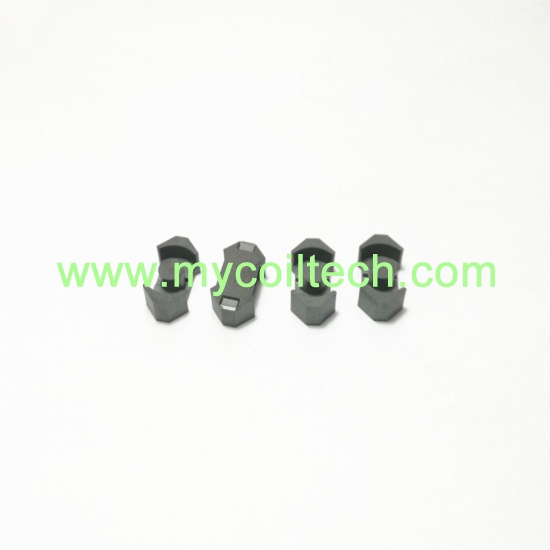

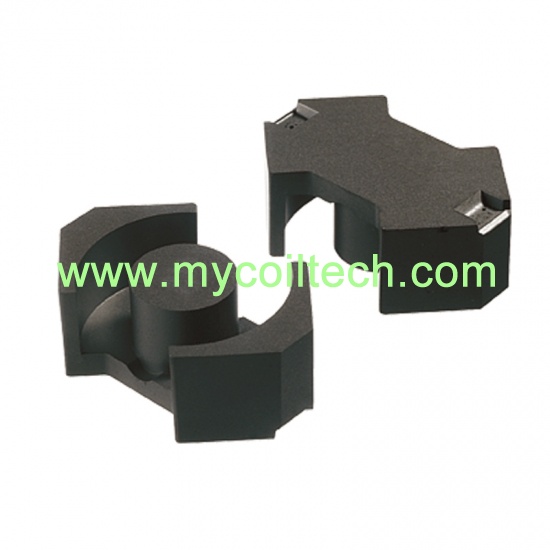

RM Ferrite Core For High Frequency Switching Supply Transformer

RM ferrite core has good magnetic shielding effect, strong anti-interference ability, multi-pin with bobbin, multi-output transformer can be designed for high density installation.
  • brand:

    MCT
  • item no.:

    RM Series Ferrite Cores
  • shipping port:

    Shanghai
contact now
product description

Quick Details

Part Number: RM Series Ferrite Core

Brand Name: MCT

Material: Mn-Zn/Ni-Zn ferrite core

Logo: Can be customized

Type: Power core/High permeability core

OEM: Available

Core: M10P, M7P, M5P, MP4,MP44,MP47,MP90,MP95

MOQ: Any quantity

Packing: Carton,can be customized

Custom Made: Available

Lead Time: 25 days after payment

Certification: ISO9001,ROHS,CE


Part Information

Product Name: RM Ferrite Core For High Frequency Switching Supply Transformer

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: High-frequency switching power transformers. Filter common mode transformers. Line transformers, liner filters. Rectifier transformer. Shielded transformer. Pulse transformer.

Advantages:Our Factory is made up of 500 people, huge output can be finished every day.

We have a technical team consist of 5 experienced engineers.

All materials are environmental protected. We accept custom made and design service.

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

Shipping Details: By air, By ship, etc.


Product Details

Ferrite RM Series Cores, Various Materials and Applications Electronic Transformers, Filters, Inductors

RM8/10/12/14 ferrite cores

RM SERIES CORE MATERIALS:M10P, M7P, M5P, MP4,MP44,MP47,MP90,MP95

TYPE

Dimension:mm

Weight:g

A

B

C

D

E

F

H

RM4

10.8±0.2

10.4±0.1

4.45±0.15

8.15±0.2

3.8±0.1

7.2±0.2

9.63±0.2

1.7

RM5

14.35±0.25

10.4±0.2

6.6±0.25

10.4±0.2

4.8±0.1

6.5±0.2

12.05±0.25

3.0

RM6

17.6±0.3

12.4±0.2

8.0±0.2

12.65±0.25

6.3±0.1

8.2±0.2

15.0±0.3

5.5

RM7

19.9±0.4

13.4±0.2

7.1±0.5

15.08±0.33

7.1±0.15

8.65±0.25

16.85±0.35

7.2

RM8

22.75±0.45

16.4±0.2

10.8±0.2

17.3±0.3

8.4±0.15

11.0±0.2

19.7-0.7

13.0

RM10

27.85±0.65

18.6±0.1

13.25±0.25

21.65±0.45

10.7±0.2

12.7±0.3

24.15±0.55

23.0

RM12

36.75±0.65

23.5±0.2

16.0±0.3

25.5±0.5

12.6±.2

17.1±0.3

29.25±0.55

42.0

RM14

41.6±0.6

28.8±.2

18.7±0.3

29.5±0.5

14.75±0.25

21.1±.3

34.2±0.5

70.0


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

M5P

M7P

M10P

RM4

1.62

14.0

22.7

318

1100

1000

2450min

4800

RM5

0.94

23.7

22.4

530

2000

1800

4350min

6300

RM6

0.78

36.6

28.6

1050

2400

2300

5250min

8300

RM7

0.69

46.0

31.8

1460

1950min

RM8

0.59

64.0

38.0

2430

2900

2500

7000min

11000

RM10

0.45

98.0

44.0

4310

3630min

RM12

0.40

140

56.9

7960

4150min

3500

14000

RM14

0.39

178

70.0

12400

4600min


TYPE

Effective parameter

ALnH/N2)(AL±25%

C1

(mm-1)

Ae

(mm2)

Le

(mm)

Ve

(mm3)

MP4

MP44

MP47

MP95

RM12

0.40

140

56.9

7960

5300

5400

5400

6600

RM14

0.39

178

70.0

12400

6000

6180

6180

7500
