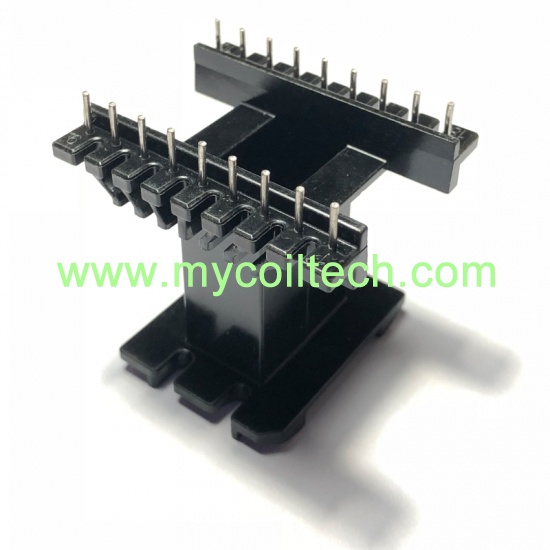

EE42 high frequency transformer. EE42 vertical winding bobbin 18pins. Bobbin Size=45.0mmX32.0mmX29.4mm. Parallel distance=27.5mm. Pin pitch=5.0mm. We can make bobbin tooling. Phenolic material bobbin.
brand:
MCTitem no.:
MCT-EE4203shipping port:
Shanghaipayment:
T/T in advanceSwitch transformer EE42 for PCB, vertical type bobbin 9+9 pins, small purchase qty acceptable.
Quick Details
|
Part Number: MCT-EE4203 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: SMPS EE42 Flyback Transformer Vertical Bobbin
Product Range: Transformers, filters, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, main power supply, high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

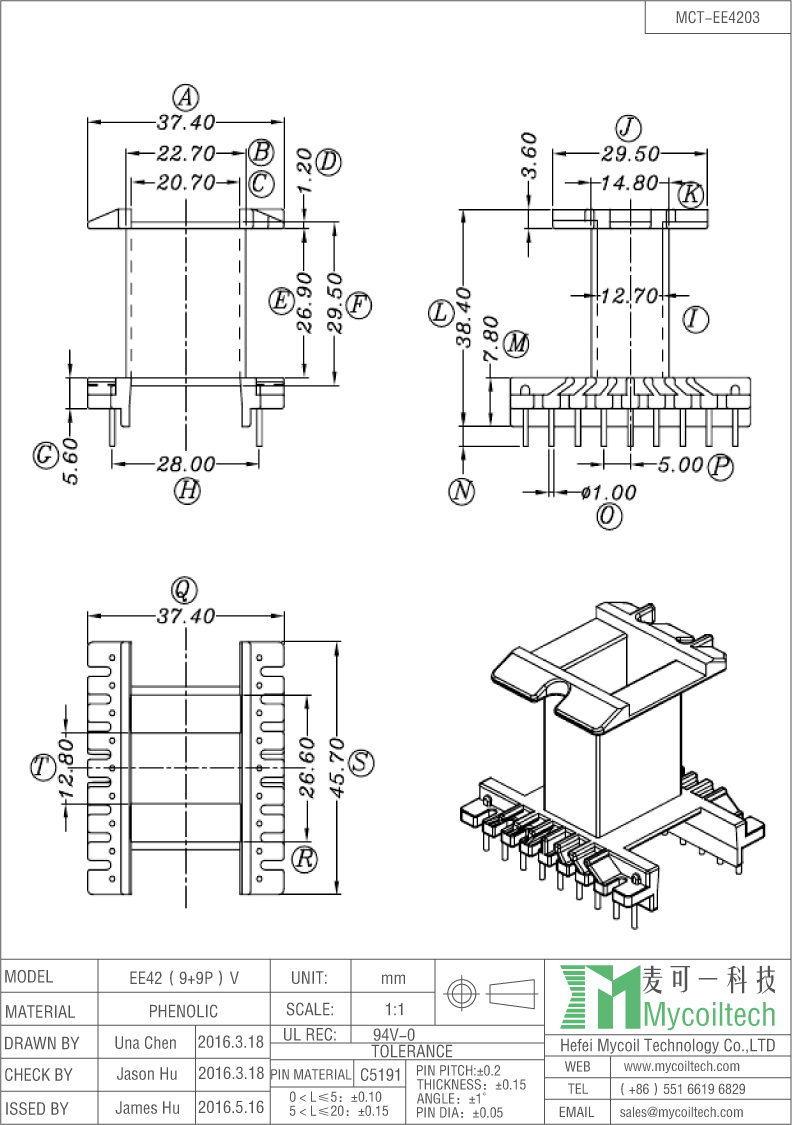

Product Specification
For more details, please contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
