High frequency welding rod core working environment determines it must have a certain corrosion resistance,high temperature resistance,some places need magnetic induction intensity is relatively strong.
brand:
MCTitem no.:
YO Series(Solid and hollow type)shipping port:
ShanghaiHigh frequency welding rod core working environment determines that it must have a certain corrosion resistance, high -temperature resistance, by using different magnetic thickness can get different magnetic induction intensity and some places need magnetic induction intensity is relatively strong.
The choice of different high frequency welding rod core magnet can determine the maximum magnetic induction intensity and temperature performance, generally to welding in the conventional 1 inch diameter high frequency magnetic NdFeB magnets do surface magnetic induction intensity of more than 12000 Gauss need more than N40 material. The welding rod core in the temperature more than 150 degrees above the general choice of alnico high temperature resistance.

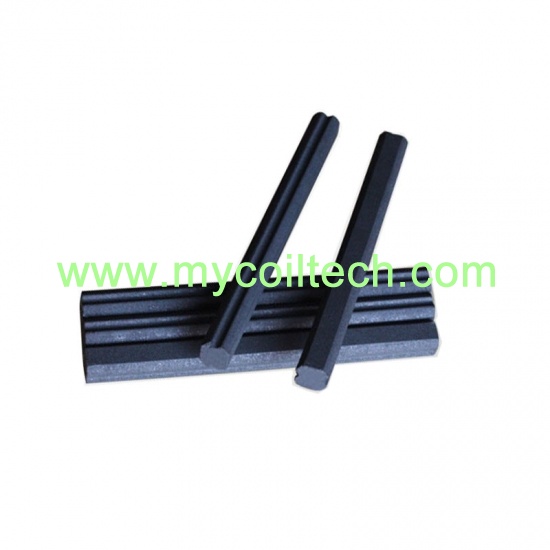

Solid and Hollow Magnetic Ferrite Core YO Series Ferrite Core
TYPE |
|||||
RC5×100 |
RC7×140 |
RC17×140 |
RC8×200 |
RC20×200 |
RC10×70 |
RC6×100 |
RC8×140 |
RC18×140 |
RC9×200 |
RC22×200 |
RC11×70 |
RC7×100 |
RC9×140 |
RC20×140 |
RC10×200 |
RC24×200 |
RC12×70 |
RC8×100 |
RC10×140 |
RC22×140 |
RC11×200 |
RC25×200 |
RC14×70 |
RC9×100 |
RC11×140 |
RC24×140 |
RC12×200 |
RC28×200 |
|
RC10×100 |
RC12×140 |
RC25×140 |
RC13×200 |
RC30×200 |
RC8×120 |
RC11×100 |
RC13×140 |
RC28×140 |
RC14×200 |
RC32×200 |
RC10×120 |
RC12×100 |
RC13.5×140 |
RC30×140 |
RC15×200 |
RC35×200 |
RC10×160 |
RC13×100 |
RC14×140 |
RC32×140 |
RC16×200 |
RC36×200 |
RC12×120 |
RC13.5×100 |
RC15×140 |
RC35×140 |
RC17×200 |
RC38×200 |
|
RC14×100 |
RC16×140 |
RC36×140 |
RC18×200 |
|
|
RC15×100 |
|
RC38×140 |
|
|
|
RC16×100 |
|
|
|
|
|
RC17×100 |
|
|
|
|
|
RC18×100 |
|
|
|
|
|
RC20×100 |
|
|
|
|
|
RC22×100 |
|
|
|
|
|
RC25×100 |
|
|
|
|
|
RC30×100 |
|
|
|
|
|
