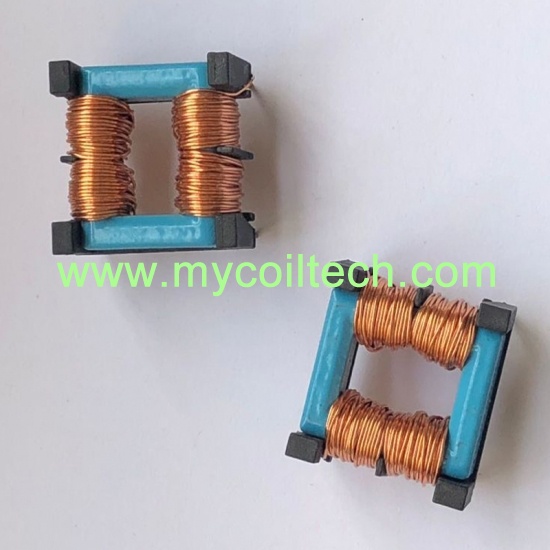

SQ series ferrite core has high permeability, maminly used for power inductor, high frequency permeability inductor, common mode choke coils and EMI filters. We can provide samples for test. Small order is acceptable.
brand:
MCTitem no.:
SQ Series Ferrite Coreshipping port:
ShanghaiHigh quality SQ series soft ferreite cores from MCT. We have various magnetic cores, we manufacture high frequency transformers, coil inductor and EMI filter. We can send samples for testing first, custom design also available.
Quick Details
|
Part Number: SQ Series Ferrite Core |
Brand Name: MCT |
|
Material: Mn-Zn ferrite core |
Logo: Can be customized |
|
Type: High permeability core |
OEM: Available |
|
Features: High frequency power inductor, common mode inductor |
MOQ: Any quantity |
|
Packing: Carton,can be customized |
Custom Made: Available |
|
Lead Time: 25 days after payment |
Certification: ISO9001,ROHS,CE |
Part Information
Product Name: SQ Soft Magnetic Ferrite Core for Filter Inductor
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Filter common mode transformers. Color TV sets. Inverter welding machine, Plating Power Supply. Computers, monitors and other electronic equipment.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.
Product Details

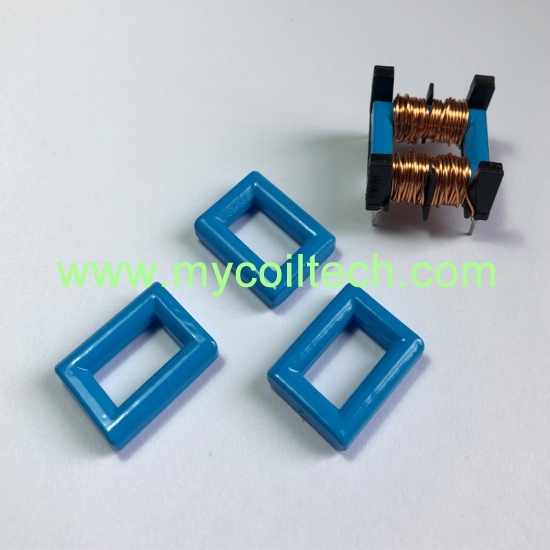

SQ Series Ferrite Core
|
型号 Type |
尺寸 Dimension(mm) |
重量 |
|||||
|
A |
B |
C |
D |
E |
F |
||
|
SQ1515 |
15.2±0.4 |
15.2±0.4 |
5.1±0.30 |
4.7±0.30 |
11.0±0.4 |
5.90±0.4 |
3.65g |
|
SQ1614 |
16.5±0.5 |
14.0±0.3 |
5.0±0.20 |
4.5±0.20 |
12.5±0.5 |
5.00±0.3 |
3.60g |
|
SQ1916 |
19.0±0.5 |
16.0±0.5 |
5.5±0.20 |
5.0±0.15 |
14.0±0.5 |
6.00±0.5 |
5.10g |
|
SQ1918 |
19.0±0.4 |
18.3±0.4 |
5.5±0.20 |
5.04±0.20 |
14.0±0.3 |
8.22±0.3 |
5.50g |
|
SQ2018 |
20.4±0.4 |
18.3±0.5 |
5.5±0.20 |
5.04±0.20 |
14.0±0.3 |
8.22±0.3 |
6.20g |
|
SQ2318 |
22.8±0.4 |
18.1±0.4 |
5.0±0.30 |
4.5±0.25 |
14.8±0.4 |
9.10±0.4 |
5.90g |
|
SQ2418 |
24.0±0.3 |
17.5±0.4 |
6.0±0.20 |
5.5±0.25 |
20.0±0.3 |
6.50±0.4 |
7.60g |
|
SQ2521 |
24.7±0.5 |
21.3±0.5 |
5.2±0.20 |
4.9±0.20 |
15.9±0.4 |
11.50±0.4 |
7.50g |
|
SQ2820 |
28.0±0.4 |
20.0±0.4 |
6.5±0.20 |
6.0±0.25 |
22.0±0.4 |
8.00±0.4 |
10.50g |
|
SQ4319 |
43.0±0.8 |
19.2±0.4 |
6.8±0.25 |
6.1±0.25 |
33.0±0.6 |
7.00±0.4 |
17.50g |
|
型号 Type |
有效参数 Effective parameter |
AL值 AL（nH/N2） |
||||||
|
C1 (mm-1) |
Le (mm) |
Ae (mm2) |
Ve (mm3) |
M5P |
M7P |
M10P |
M12P |
|
|
SQ1515 |
2.64 |
39.36 |
14.87 |
586.00 |
|
|
3000±30% |
3500±30% |
|
SQ1614 |
2.74 |
39.91 |
14.57 |
581.35 |
|
|
4200±30% |
5000±30% |
|
SQ1916 |
2.46 |
47.28 |
19.20 |
908.26 |
|
|
4600±30% |
5600±30% |
|
SQ1918 |
2.77 |
53.83 |
17.34 |
933.07 |
|
|
4500±30% |
5400±30% |
|
SQ2018 |
2.51 |
55.15 |
21.92 |
1209.20 |
|
|
3700±30% |
4500±30% |
|
SQ2318 |
2.63 |
58.59 |
22.34 |
1309.00 |
|
|
4600±30% |
5000±30% |
|
SQ2418 |
2.81 |
52.88 |
18.75 |
991.99 |
|
|
4250±30% |
4500±30% |
|
SQ2521 |
2.86 |
69.25 |
24.24 |
1678.36 |
|
|
4800±30% |
5300±30% |
|
SQ2820 |
2.43 |
67.57 |
27.78 |
1877.59 |
|
|
3700±30% |
4500±30% |
|
SQ4319 |
2.46 |
96.88 |
39.30 |
3808.04 |
|
|
3500±30% |
4500±30% |
If any questions, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily
