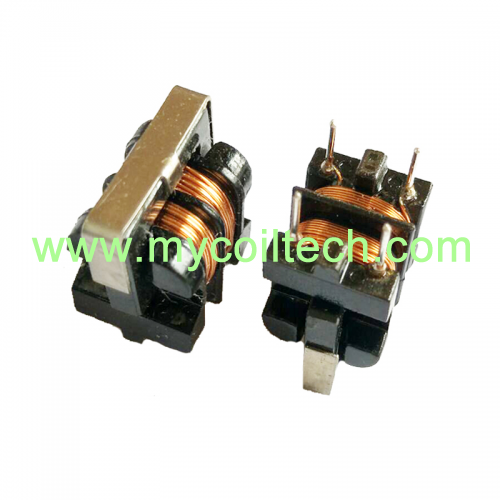

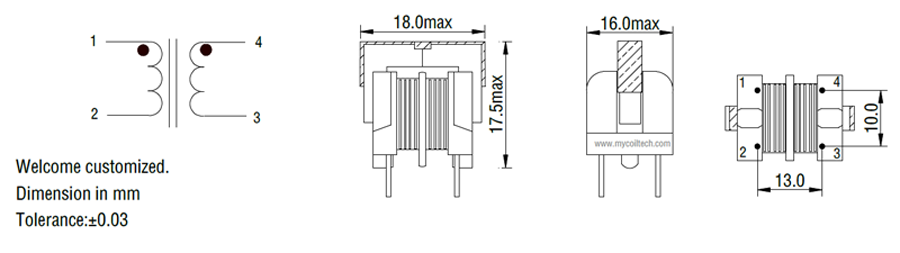

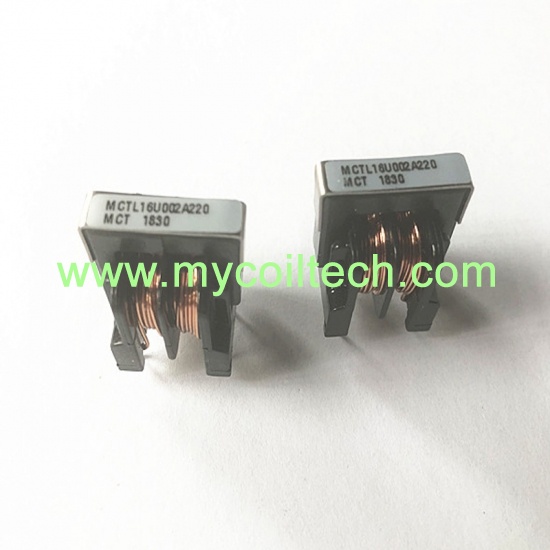

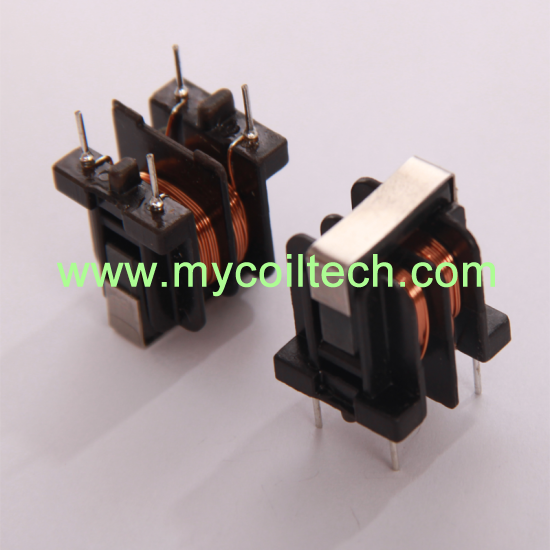

UU16 Series Standard Winding provides a large inductance. It has light weight, low profile in vertical core layout. Different frequency require will be meet by different material.
brand:
MCTitem no.:
MCTL16U Series Standard Windingshipping port:
Shanghai PortUU16 common mode choke inductor is our UU series common mode choke coil. UU type common mode choke mainly used for AC power suppliers, DC-DC converters and telecommunication equipment. It has small size, so its convenient to package. It also has high reliability and high saturation DC current. UU series different frequency require will be meet by different material and the materials we used are all lead-free products, UL compliant.
Quick Details
|
Part No: MCTL16U Series Standard Winding |
|
Brand name: MCT |
|
Rated voltage:85~265VAC,50/60Hz |
|
Custom made: Available |
|
Insulation resistance:100MΩ @500VDC |
|
Logo: Can be customized |
|
Turns ratio:1:1±2% |
|
Packing: Carton,can custom |
|
Hi-pot: 2500VAC/1mA/60Sec |
|
Certification: ISO9001,ROHS,CE |
|
Testing frequency:1KHz/0.25V |
|
OEM: Available |
|
Operating temperature:-40°C~+105°C |
|
Shipping: Air, Ship, etc |
|
Lead time: 25 days after payment |
|
MOQ: Any quantity |
Part Information
Product Name: UU16 Wave Filter Inductance Common Mode Choke Coils Inductor
Applications: Switching power supply, Lighting equipment, Data transmission, Medical application equipment, Home appliance.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
|
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
|
MCTL16U047A040 |
47.0 |
1.8 |
0.4 |
|
MCTL16U045A030 |
45.0 |
4.0 |
0.3 |
|
MCTL16U033A060 |
33.0 |
1.15 |
0.6 |
|
MCTL16U030A040 |
30.0 |
2.5 |
0.4 |
|
MCTL16U027A070 |
27.0 |
0.88 |
0.7 |
|
MCTL16U020A050 |
20.0 |
1.7 |
0.5 |
|
MCTL16U018A080 |
18.0 |
0.6 |
0.8 |
|
MCTL16U010A060 |
10.0 |
1.0 |
0.6 |
|
MCTL16U010A100 |
10.0 |
0.35 |
1.0 |
|
MCTL16U008A070 |
8.0 |
0.8 |
0.7 |
|
MCTL16U006A130 |
6.8 |
0.25 |
1.3 |
|
MCTL16U006A080 |
6.0 |
0.55 |
0.8 |
|
MCTL16U004A150 |
4.7 |
0.17 |
1.5 |
|
MCTL16U004A100 |
4.0 |
0.4 |
1.0 |
|
MCTL16U003A120 |
3.5 |
0.3 |
1.2 |
|
MCTL16U003A180 |
3.3 |
0.13 |
1.8 |
|
MCTL16U002A130 |
2.5 |
0.25 |
1.3 |
|
MCTL16U002A220 |
2.2 |
0.1 |
2.2 |
|
MCTL16U001A150 |
1.5 |
0.15 |
1.5 |
|
MCTL16U001A330 |
1.0 |
0.05 |
3.3 |
Customized specifications are welcome!
If you have any questions, please contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
EMI Suppression Filter Common Mode Choke Coil UU9 For AC Power Lines
UU9 common mode choke foe line filter is easy to round,high saturated material,wide inductance range.Windings balanced within 1%.Different frequency require will also be meet.
Ferrite Common Mode Choke Coils UU10 Filter Inductor
UU10 common mode filter inductor has light weight, wide frequency range, high reliability, eaasy to round, low profile in vertical core layout. Used for high frequency transformers.

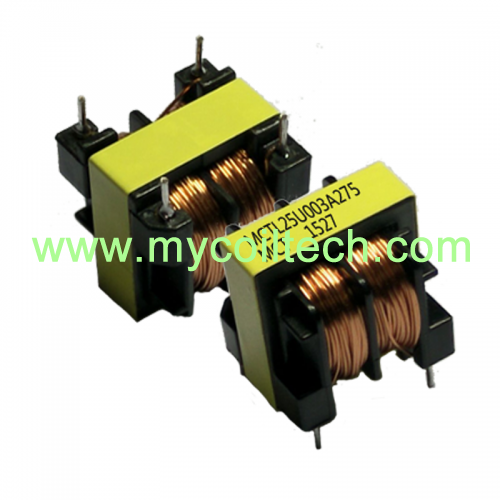

UU25 Common Mode Choke Filter For High Frequency Inverter
UU25 Common Mode Choke inductors are lead-free productswigh saturated material, wide inductance range. Different frequency require will be meet by different material.

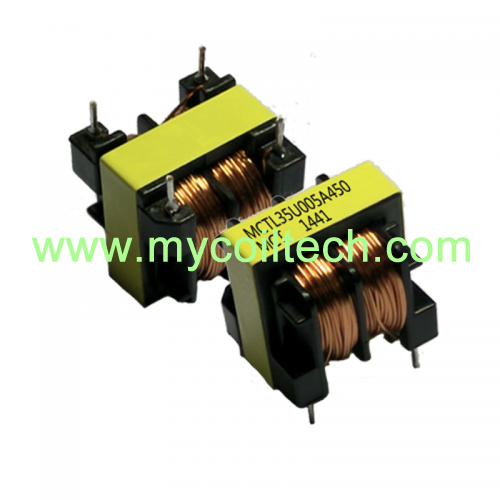

High Frequency Electrical Power UU35 Common Mode Choke Inductor
UU35 common mode choke has compact and light weight, low profile in vertical core layout. Both a standard winding and a sectional winding for higher frequency noise is available.
EFD20 Power Supply Transformer Bobbin 4+4 Pins Horizontal Bobbin
EFD20 horizontal transformer bobbin. 4+4 pins coil former. Pin pitch=5mm. Parallel distance=17.6mm. Phenolic bobbin. Bobbin Size=20.2mmX20.1mmX10mm. DIP bobbin. UL REC:94V-0.
ER28 Lighting Transformer Horizontal Bobbin Pin 6+6
ER28 power supply transformer. 6+6 pins ER28 six slots coil former. Horizontal ER28 transformer bobbin. Bobbin size=31.4mmX28.0X23mm. Row distance=26.4mm. Pin pitch=4.0mm. We manufacture final ER28 high power transformer, If you need support, please tell us the parameters you wanted, and we will advise suitable ones for you. If your size is special, we can also make new tooling.
ER35 High Voltage Transformer Frame 22+22 Pins
22+22 pins ER35 vertical bobbin, through hole ER35 coil former, pin distance=2.54mm,bobbin size=57.8mmX33.35mmX41.10mm, parallel distance=25.5mm. Phenolic material ER35 bobbin. We manufacture ER35 transformer for switching power suppliers.
ETD34 High Voltage Transformer 7+7 Pins Bobbin
ETD34 high frequency transformer bobbin. ETD34 soft ferrite core coil former. Bobbin Size=40mmX38.5mmX30.5mm. Parallel Distance=25.4mm. FR530 material coil bobbin. We accept custom design transformers and inductors.
EI35 PCB Mounting Transformer Vertical Coilformer
EI35 high frequency transformer. Vertical EI35 7+7 pin bobbin. Bobbin Size=34.0mmX26.0mmX27.4mm.Pin pitch=5.0mm. Parallel Distance=20.0mm. Welcome customized EI35 electronic transformer, widely used in power supplies, lighting, UPS, computers, printers, telecom communication systems, welding machines and other industries.
EE13 Power Transformer Vertical Bobbin
EE13 HF transformer frame. Vertical 4+4pins EE13 bobbin with VDE. Phenolic material EE13 coil former. Parallel Distance=13.0mm. Pin pitch=3.5mm. Coil former Size=12.0mmX9.8mmX12.4mm. We produce and design small EE13 electronic transformers, welcome small orders.
EF13 Transformer Bobbin For PCB Mounting Transformer With 4+4 Pins
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=2.5mm, Parallel Distance=10mm Size=13mmX13mmX12.1mm
RM8 Power Supply Transformer Clamp
Through hole bobbin clip, RM8 transformer clips with SK7-0.4T material. Clip Size=15.8mmX13.5X4.5mm. We produce bobbins and supply matched cores, we manufacture final transformers. RM8 electronic transformers are widely used for LED driver, SMPS, lightening appliance, communication equipment, office equipment and household appliances.
