Current transformer has small size and easy to installation. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact. Good linearity.
brand:
MCTitem no.:
MCT01A05 5A CTshipping port:
ShanghaiHefei Mycoil Technology Co.,LTD is professional manufacture in designing, producing electronic transformers, common mode choke coils, relays, EMI filters. Our current transformers mainly used in high frequency power supplies, new energy, monitoring devices, relay protection devices and other power correction devices. All 5A current transformers are RoHS certification products.
Quick Details
|
Part No: MCT01A055ACT |
|
Brand name: MCT |
|
Operating temperature：-40°C~50°C |
|
Custom made: Available |
|
Storage temperature:-40°C~70°C |
|
Logo: Can be customized |
|
Relative humidity:10~95% |
|
Packing: Carton, can custom |
|
Rated input current:5A |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name:5A Magnetic Core Current Transformer for Monitoring Meter
ProductsRange: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay
protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner
packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN |
Rated IN/OUT |
Accuracy |
Linearity Range |
Phase shift |
Load resistance |
Isolated withstand voltage |
Threading aperture, Unit:mm |
|
MCT01A05A |
5A/2mA |
0.2 |
0~20A |
≤10’ |
≤200Ω |
300V |
|
|
MCT01A05B |
5A/2.5mA |
0.2 |
0~20A |
≤10’ |
≤200Ω |
300V |
|
|
MCT01A05C |
5A/5mA |
0.5 |
0~10A |
≤15’ |
≤50Ω |
300V |
|

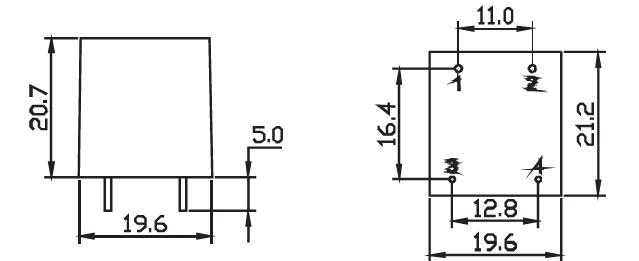

Dimension：mm
Notification
Power supply is needed when the operational amplifier is added to the transformer, etc. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
If you have any questions, please contact us or leaving your comments, we will
give you fast reply.
