Low voltage current transformer is a device that can convert high AC current into a low current that is easy to control. It has the characteristics of excellent performance and stable accuracy. We manufacture various low voltage current transformers, welcome custom and OEM service.
brand:
MCTitem no.:
MDBP Series Low Voltage CT Transformershipping port:
Shanghaipayment:

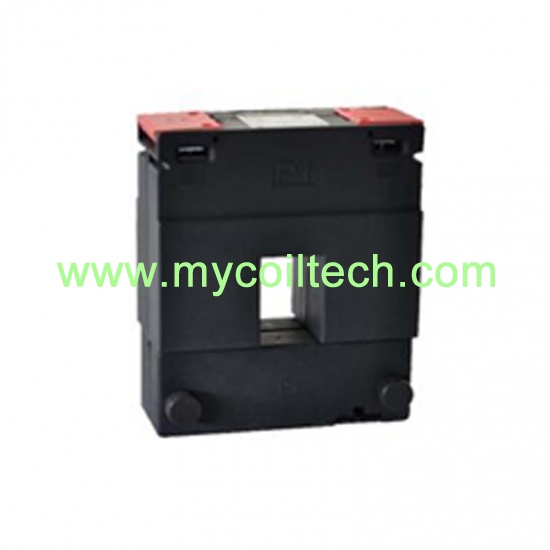

T/T in advance; PayPalMDBP series split core current transformers are designed for easy installation in the circuit system or power grid transformation system. MDBP is improved from MDP of split type transformer. The shell material is PA66 flame-retardant reinforced nylon, and the temperature resistance and flame-retardant performance are better than MDP series. Conform to standards: iec6004-1, bs7626, vde0414-44-1, UL94.
Low Voltage Current Transformer Feature
I. Special terminal design, quick and convenient secondary wiring,firm wiring and not easy to loosen.
II. Primary line: installed without disconnecting cables or busbars,saving installation time and convenient maintenance.
Split Core Current Transformer MDBP Models
MDBP-23 Series
|
MODEL |
RATIO(A) |
BURDEN(VA) |
SPQ:PCS |
ORDER CODE |
|
|
CLASS:0.5 |
CLASS:1.0 |
||||
|
MDBP-23 |
100/5 |
1.5 |
2.5 |
20 |
402101005 |
|
MDBP-23 |
150/5 |
1.5 |
2.5 |
20 |
402101505 |
|
MDBP-23 |
200/5 |
2.5 |
3.75 |
20 |
402102005 |
|
MDBP-23 |
250/5 |
2.5 |
5 |
20 |
402102505 |
|
MDBP-23 |
300/5 |
5.0 |
5 |
20 |
402103005 |
|
MDBP-23 |
400/5 |
5.0 |
5 |
20 |
402104005 |
MDBP-58 Series
|
MODEL |
RATIO(A) |
BURDEN(VA) |
SPQ:PCS |
ORDER CODE |
|
|
CLASS:0.5 |
CLASS:1.0 |
||||
|
MDBP-58 |
250/5 |
1.5 |
2.5 |
20 |
325002505 |
|
MDBP-58 |
300/5 |
2.5 |
5 |
20 |
325003005 |
|
MDBP-58 |
400/5 |
3.75 |
5 |
20 |
325004005 |
|
MDBP-58 |
500/5 |
5.0 |
7.5 |
20 |
325005005 |
|
MDBP-58 |
600/5 |
5.0 |
7.5 |
20 |
325006005 |
|
MDBP-58 |
750/5 |
5.0 |
10 |
20 |
325007505 |
|
MDBP-58 |
800/5 |
5.0 |
10 |
20 |
325008005 |
|
MDBP-58 |
1000/5 |
7.5 |
10 |
20 |
325010005 |
MDBP-88 Series
|
MODEL |
RATIO(A) |
BURDEN(VA) |
SPQ:PCS |
ORDER CODE |
|
|
CLASS:0.5 |
CLASS:1.0 |
||||
|
MDBP-88 |
250/5 |
1.5 |
2.5 |
12 |
3281025005 |
|
MDBP-88 |
300/5 |
2.5 |
3.75 |
12 |
3281030005 |
|
MDBP-88 |
400/5 |
3.75 |
5 |
12 |
3281040005 |
|
MDBP-88 |
500/5 |
5.0 |
5 |
12 |
3281050005 |
|
MDBP-88 |
600/5 |
5.0 |
7.5 |
12 |
3281060005 |
|
MDBP-88 |
750/5 |
5.0 |
7.5 |
12 |
3281075005 |
|
MDBP-88 |
800/5 |
5.0 |
7.5 |
12 |
3281080005 |
|
MDBP-88 |
1000/5 |
7.5 |
10 |
12 |
3281100005A |
MDBP-812 Series
|
MODEL |
RATIO(A) |
BURDEN(VA) |
SPQ:PCS |
ORDER CODE |
|
|
CLASS:0.5 |
CLASS:1.0 |
||||
|
MDBP-812 |
500/5 |
2.5 |
5 |
10 |
3280050005 |
|
MDBP-812 |
600/5 |
2.5 |
5 |
10 |
3280060005 |
|
MDBP-812 |
750/5 |
5.0 |
10 |
10 |
3280075005 |
|
MDBP-812 |
800/5 |
5.0 |
10 |
10 |
3280080005 |
|
MDBP-812 |
1000/5 |
7.5 |
10 |
10 |
3280100005 |
|
MDBP-812 |
1200/5 |
7.5 |
10 |
10 |
3280120005 |
|
MDBP-812 |
1250/5 |
7.5 |
10 |
10 |
3280125005 |
|
MDBP-812 |
1500/5 |
7.5 |
10 |
10 |
3280150005 |
MDBP-816 Series
|
MODEL |
RATIO(A) |
BURDEN(VA) |
SPQ:PCS |
ORDER CODE |
|
|
CLASS:0.5 |
CLASS:1.0 |
||||
|
MDBP-816 |
1000/5 |
10 |
15 |
6 |
3281100005B |
|
MDBP-816 |
1500/5 |
10 |
15 |
6 |
3281150005 |
|
MDBP-816 |
2000/5 |
15 |
20 |
6 |
3281200005 |
|
MDBP-816 |
2500/5 |
20 |
25 |
6 |
3281250005 |
|
MDBP-816 |
3000/5 |
20 |
30 |
6 |
3281300005 |
|
MDBP-816 |
4000/5 |
20 |
30 |
6 |
3281400005 |
|
MDBP-816 |
5000/5 |
20 |
30 |
6 |
3281500005 |
|
MDBP-816 |
6000/5 |
20 |
30 |
6 |
3281600005 |
Note: Class/VA rating must be mentioned when ordering.
MDBP Series CT Dimension:mm
|
Model |
A |
B |
C |
D |
E |
F |
G |
|
MDBP-23 |
115 |
89 |
40 |
52 |
70 |
32 |
21 |
|
MDBP-58 |
145 |
116 |
32 |
52 |
70 |
80 |
50 |
|
MDBP-88 |
153 |
145 |
32 |
52 |
70 |
80.5 |
80.5 |
|
MDBP-812 |
196 |
145 |
32 |
52 |
70 |
120.5 |
80 |
|
MDBP-816 |
250 |
186 |
51 |
71 |
57 |
120.5 |
81 |
For more details, welcome to contact us, we will give you fast reply.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
5A Magnetic Core Current Transformer for Monitoring Meter
Current transformer has small size and easy to installation. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact. Good linearity.
Rated Input Current 5A Current Transformer for PCB Mounting
5A Current transformer has small size, good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact.
Precision Current Transformer with Vertical Transformer Bobbin
Precision Current transformer with 5A has good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact.
Precision Electronically Compensated Current Transformer
Precision Current transformer with 5A has good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact.
Electronic Precision Current Transformer Horizontal Transformer Bobbin
Precision Current transformer with rated input current 5A has good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact.
PCB Mounting Mini Precision Current Transformer
Mini Precision Current transformer has good linearity, easy to installation. Materials UL94-V0. Insulation Rating Class F (155OC). Power supply is needed when the operational amplifier is added to the transformer,e.g. ±15V，±12V or according to the actual operation.
5A/2.5mA Micro Precision Current Transformer for Energy Meter
High current transformer has small size, high accuracy and good consistency, mainlt used for current and power measurementit. We can provide a typical accuracy of ±0.5%. Isolated withstand voltage:3000V. Insulation Rating Class F. Materials UL94-V0.
50A/10mA Lamination Core with Bobbin Current Transformer
50A lamination current transformer mainly used in current measurements, power meter, current control circuit. Lsolated withstand voltage:3000V. Built-in busbar.
Mini High Precision Current Transformer for PCB Mounting
5A high precision current transformer materials UL94V-0. Insulation Rating Class F (155OC). Mainly used in current measurements, power meter, current control circuit. Lsolated withstand voltage:3000V. Built-in busbar.
20A/5mA Micro Precision High Current Transformers
High precision current transformer mainly used in current measurements, power meter, current control circuit. Materials UL94V-0. Insulation Rating Class F (155OC). Lsolated withstand voltage:3000V. Built-in busbar.
50A Precision Miniature PCB Mount Current Transformer
Micro precision current transformer materials UL94V-0. Insulation Rating Class F (155OC). Isolated withstand voltage: 3000V. Built-in busbar. Mainly used in current measurements, power meter, current control circuit.
Rated Input Current 5A Current Transformer for PCB Mount
Precision current transformer output 10mA. Insulation Rating Class F (155OC). Threading aperture Φ20. Lsolated withstand voltage:3000V. Built-in busbar. Mainly used in current measurements, power meter,current control circuit. Materials UL94V-0.
