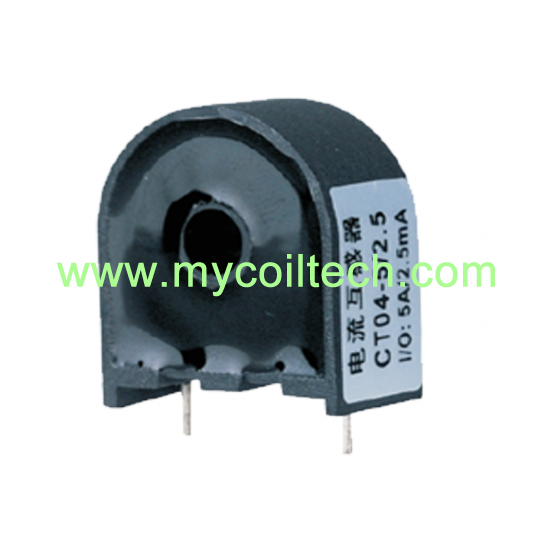

Precision Electronically Compensated Current Transformer

Precision Current transformer with 5A has good linearity, easy to installation. Vertical type bobbin and magnetic core. PBT case-resistance to high temperature and corrosion. Epoxy risen-perfect isolation and resistance to strong impact.

  • brand:

    MCT
  • item no.:

    MCT04A05V Precision Current Transformer
  • shipping port:

    Shanghai
contact now
product description

High quality and factory price precision current transformers, we can design current transformers to meet customer's needs. Samples can be sent in 5 days, if samples approved your testing, then we can began from small order to big order, from this process, you can get to know our company.


Quick Details

Part No: MCT04A05V Precision Current Transformer



Brand name: MCT

Operating temperature-40°C~50°C



Custom made: Available

Storage temperature:-40°C~70°C



Logo: Can be customized

Relative humidity:10~95%



Packing: Carton, can custom

Rated input current:5A



MOQ: Any quantity

Certification: ISO9001,ROHS,CE



OEM: Available

Lead time: 25 days after payment



Shipping: Air, Ship, etc



Part Information

Product Name: Precision Electronically Compensated Current Transformer

Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Power Systems.Measuring instruments.Relay protection.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton.


Product Specification

MCT PN

Rated IN/OUT

Accuracy

Linearity Range

Phase shift

Load resistance

Isolated withstand voltage

Threading aperture,

Unit:mm

MCT04A05AV

5A/2mA

0.5

0~15A

15

200Ω

3000V

Φ4.70

MCT04A05BV

5A/2.5mA

0.5

0~15A

15

200Ω

3000V

Φ4.70

MCT04A05CV

5A/5mA

0.5

0~10A

15

50Ω

3000V

Φ4.70

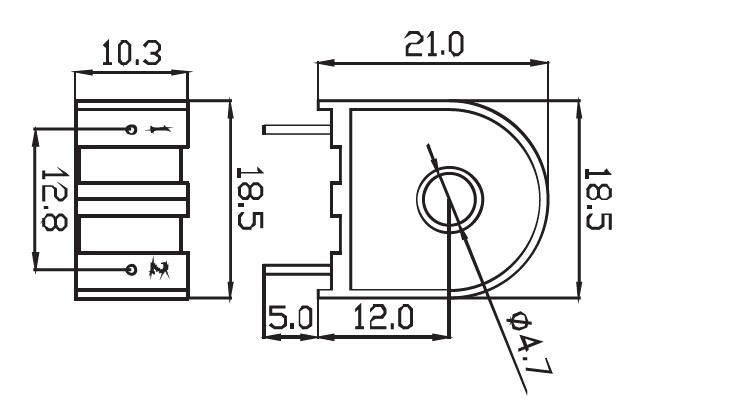

Dimension:mm

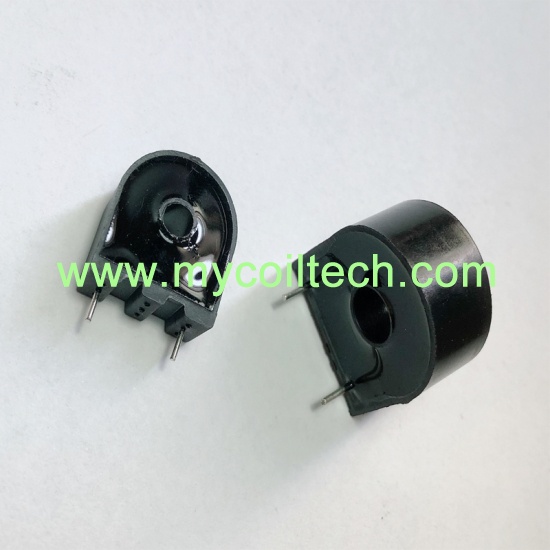

2018 new design precision current transformer

Notification

Power supply is needed when operational amplifier is added to the transformer. ±15V,±12V or according to the actual operation.

OP07 series of operational amplifier is recommended.

The fixed temperature coefficient of resistance in the circuit must be over 50PM.

Welcome customized type requirements.


More details, welcome to contact us.

Email: sales003@mycoiltech.com

Skype: sales003_125

Contact: Miss Lily Yu

TEL: +86 551 6619 6829
