EE65 High Power Transformer Horizontal Frame
EE65 single phase transformer. Horizontal EE65 bobbin 8+8 pins. Bobbin Size=51.5mmX43.7mmX54.8mm. Parallel Distance=44.5mm. Pin pitch=5.0mm. Good quality EE65 encapsulated transformer, singled packed with carton.
EF30 Power Transformer Vertical Bobbin 6+6 Pin
EF30 rectifier transformer. 6+6 pins vertical EF30 coil former. Bobbin Size=35.3mmX19.0mmX34.8mm. Pin pitch=5.08mm. Parallel Distance=15.24mm. SMPS transformer has small size, high power and low cost, we design and manufacture high frequency transformer.
High Current DIP Type Inductor High Frequency Power Inductor
DIP type high frequency inductor has low cost, shielded construction, very low DC resistance. It’s easy customized and high frequency range can up to 1.0 MHz. Our large current products are all lead-free. (RoHS)
ETD44 High Frequency Transformer Ferrite Core 120~180W Flyback Transformer For LED Drive Power
ETD44 high frequency flyback transformer power range is 20~800W. Usage:DC converters,drive transformers,PFC inductors.Winding:Auto-transformer.
EI14 Type High Voltage Audio Frequency Transformer for Audio Devices
EI14 audio frequency transformer has stable inductance value, small inductance deviation during adding of superposed current, large working current.

Common Mode Inductor Waterproof Case

Filter inductor case, 2+2 pins inductor shell, case size=27.0mmX27.0mmX19.8mm, parallel distance=24.0mm, Pin pitch=15.0mm. 2+2 pins phenolic material case. We manufacture electronis inductors and transformers for switching power supply, accept customized electronics.

brand:
MCT
item no.:
MCT-CASE74
shipping port:
Shanghai
payment:
T/T in advance; PayPal

contact now

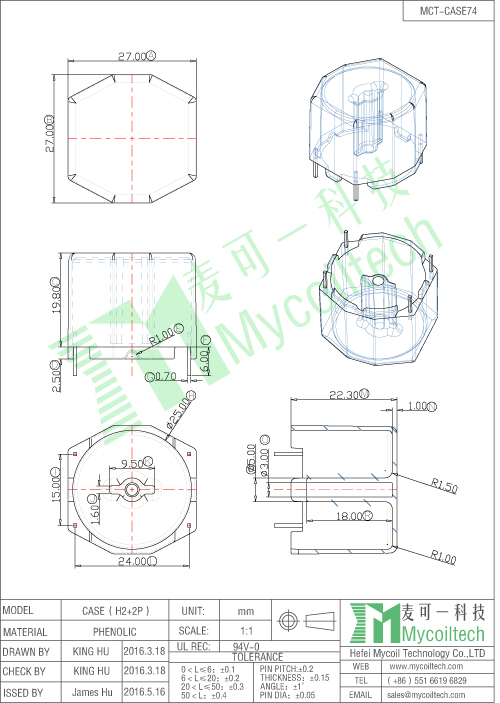

product description

2+2 Pins through hole enclosure for inductor, phenolic material transformer case, samples can be sent for testing.

Product Specification

2+2 pins DIP bobbin case
