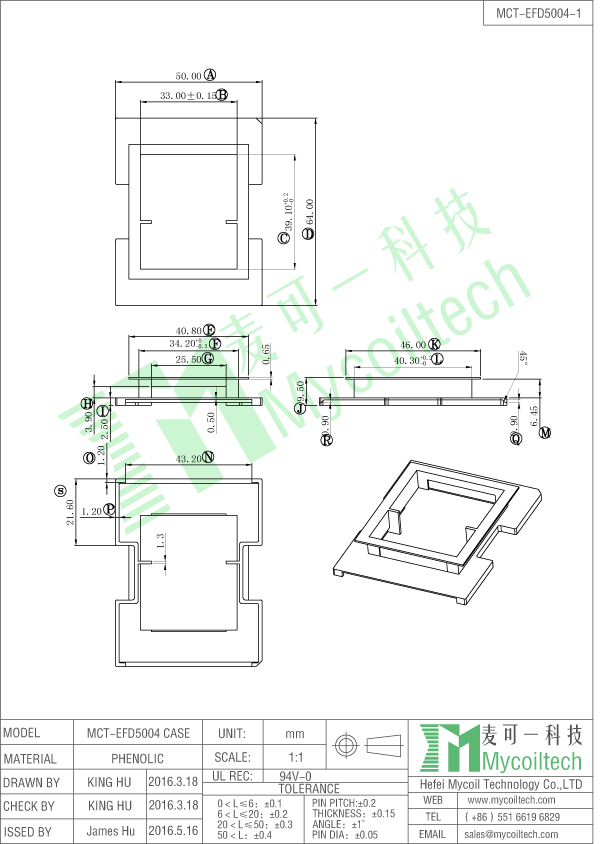

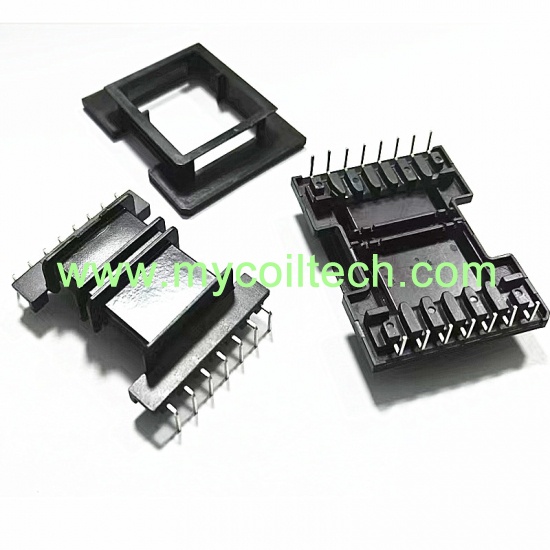

EFD50 Power Transformer Bobbin Shell

EEL10 Transformer Case, No Pin, Phenolic Material Size=9.8mmX7.95mmX7.62mm,UL REC:94V-0

2 Pin RM6 Transformer Case, Phenolic Material Size=20.4mmX15.1mmX20.6mm,UL REC:94V-0

SMD EFD15 horizontal case, 6+6 pins SMD EFD15 bobbin case. Case size=18.4mmX21.45mmX8.15mm,The case thickness is 0.6 mm. Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.Of course, our professional technical personnel can customize transformer-related components.

Production of horizontal transformer bobbin case. Case size=14.32mmX6.89mmX11.4mm,The case thickness 1 is 1.8 mm. The case thickness 2 is 5.4 mm.Our products are suitable for industrial automation, communication equipment, military equipment,etc. We can custom final transformers with specific parameters.Of course, our professional technical personnel can customize transformer-related components.

Design of high frequency transformer cover. Case size=47.23mmX32.89mmX18.45mm,Our product is made of high performance PBT material, which has the characteristics of high temperature resistance, excellent flame retardancy, good insulation, and high mechanical strength, ensuring the safe and stable operation of the equipment.At the same time, our company has been dedicated to the research and production of electronic transformers for many years, customizing related products, and providing professional technical support.
