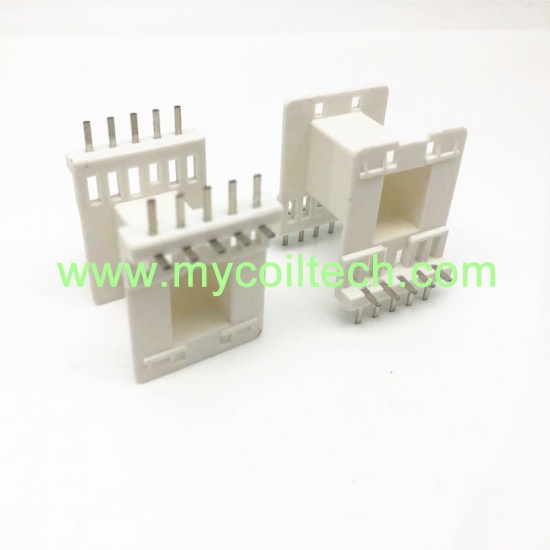

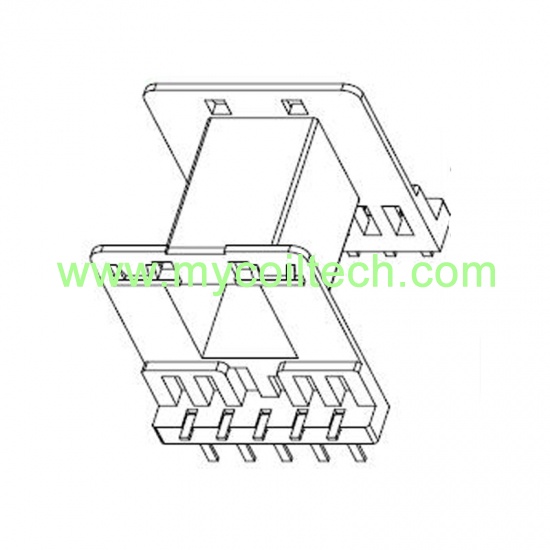

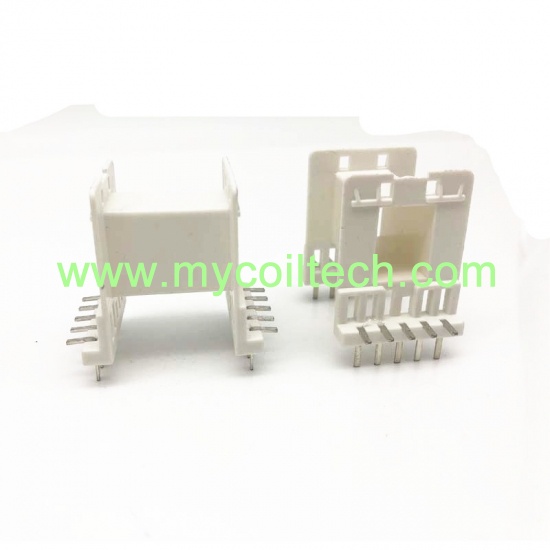

EE42 high frequency bobbin. Horizontal EE42 bobbin pin 5+5. Bobbin Size=46.50mmX29.40mmX34.30mm. Parallel distance=34.70mm. Pin pitch=5.0mm. We can make bobbin tooling. PBT material bobbin.
brand:
MCTitem no.:
MCT-EE4202shipping port:
Shanghaipayment:
T/T in advanceHot selling 5+5 pins EE42 coil former, horizontal type winding bobbin, we supply matched ferrite cores. 3-5pcs free samples will be sent for testing.
Quick Details
|
Part Number: MCT-EE4202 |
Brand Name: MCT |
|
Material: PBT |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: EE42 SMPS Transformer Horizontal Bobbin 10 Pins
Product Range: Transformers, filters, coils, bobbins, ferrite cores.
Applications: switching power supply transformers, choke inductors, high frequency transformers.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.

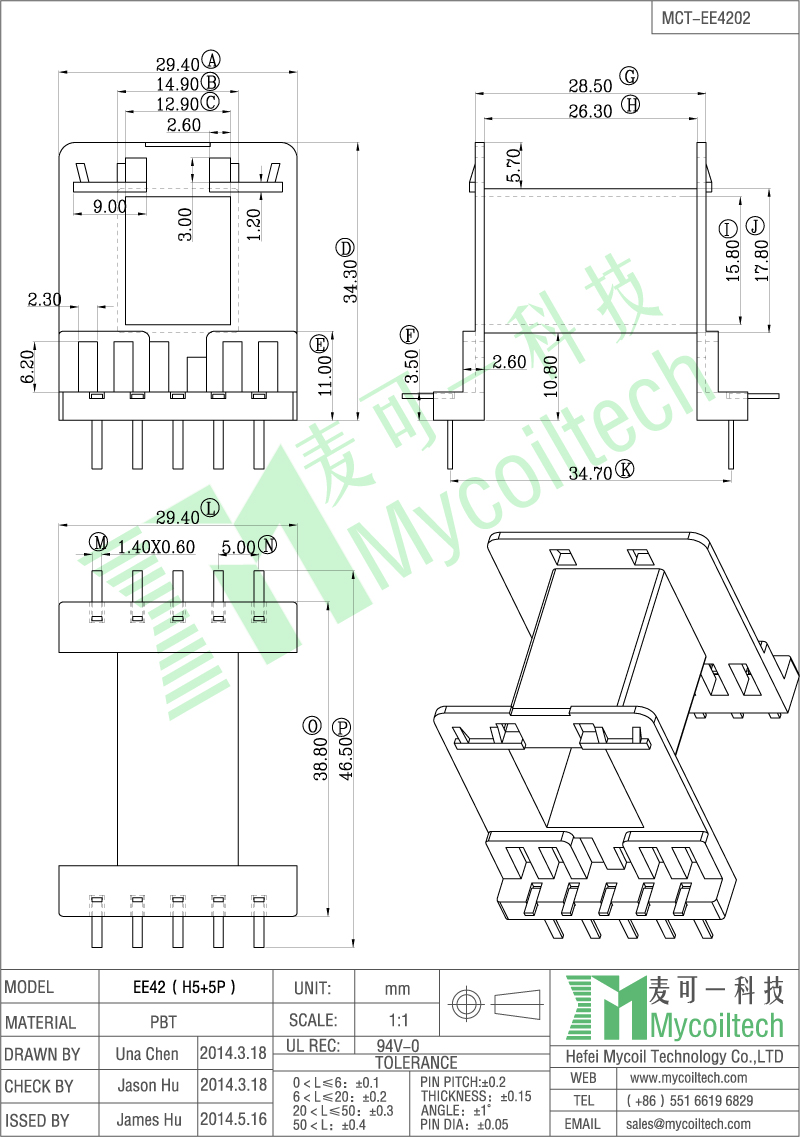

Product Specification
For more details, please contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
