Power Supply Transformer ER14.5 High Frequency SMD Transformer

ER14.5 SMD high frequency transformer. 5+3 pins ER14.5 vertical transformer bobbin. Low leakage inductance, high permeability and high saturation magnetic flux density. Magnetic materials have low loss, high efficiency and long service life. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

  • brand:

    MCT
  • item no.:

    Flexible SMPS-Transformer ER14.5
  • shipping port:

    Shanghai
contact now
product description

We specialized in manufacturing various SMD high frequency switch mode power transformers, such as flexible SMPS transformer ER9/ER11.5/ER14.5, best quality and good price, if you have any requests, welcome to contact us.


Quick Details

Part No: Flexible SMPS-Transformer ER14.5

Brand name: MCT

Insulation test voltage: 1500V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with multi-winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

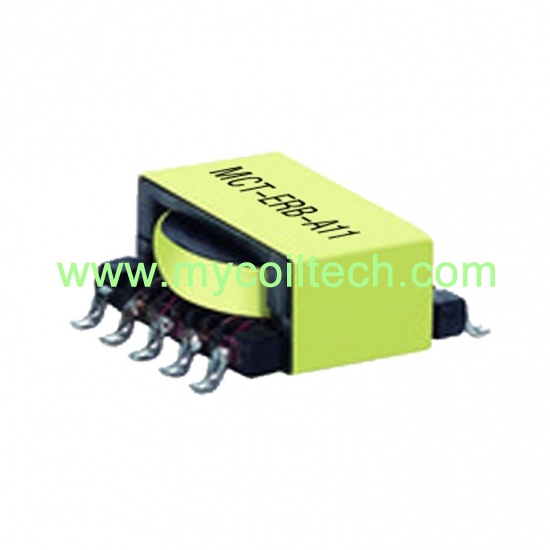

Product Name: Power Supply Transformer ER14.5 High Frequency SMD Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

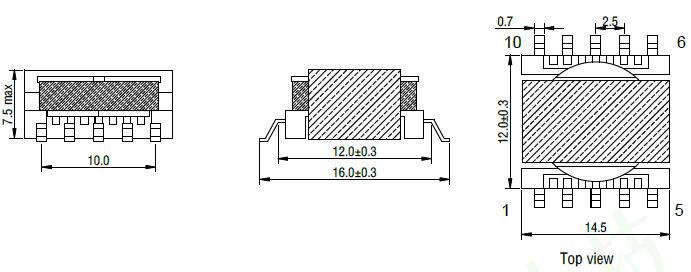

ER14.5 SMD surface mount transformer factoryElectrical Data and Part Number(PN)
