Power Transformer PQ32 Isolation Transformer Bobbin

PQ35 ferrite transformer, 6+6 pin vertical PQ35/35 coil former. Bobbin Size=39.3mmX34.9mmX36.6mm. Row distance=35.5mm. Pin pitch=5.0mm. Phenolic PQ35 bobbin for high frequency transformer, used in power supplies, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.

PQ50 flyback transformer bobbin. Vertical shape PR50 double slots frame. 7+7 pins PQ50 coil former. We are experienced IS09001:2015 certificated factory, our main products are various bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.Make bobbin tooling.

Flyback transformer PQ50/50 bobbin. Bobbin size=51.4mmX51.00mmX53.3mm. Pin pitch=7.6mm, Parallel distance=45.8mm. 6+6 pins PQ50/50 vertical bobbin. Single slot PQ50 coil former. We are experienced IS09001 certificated factory, our main products are bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.

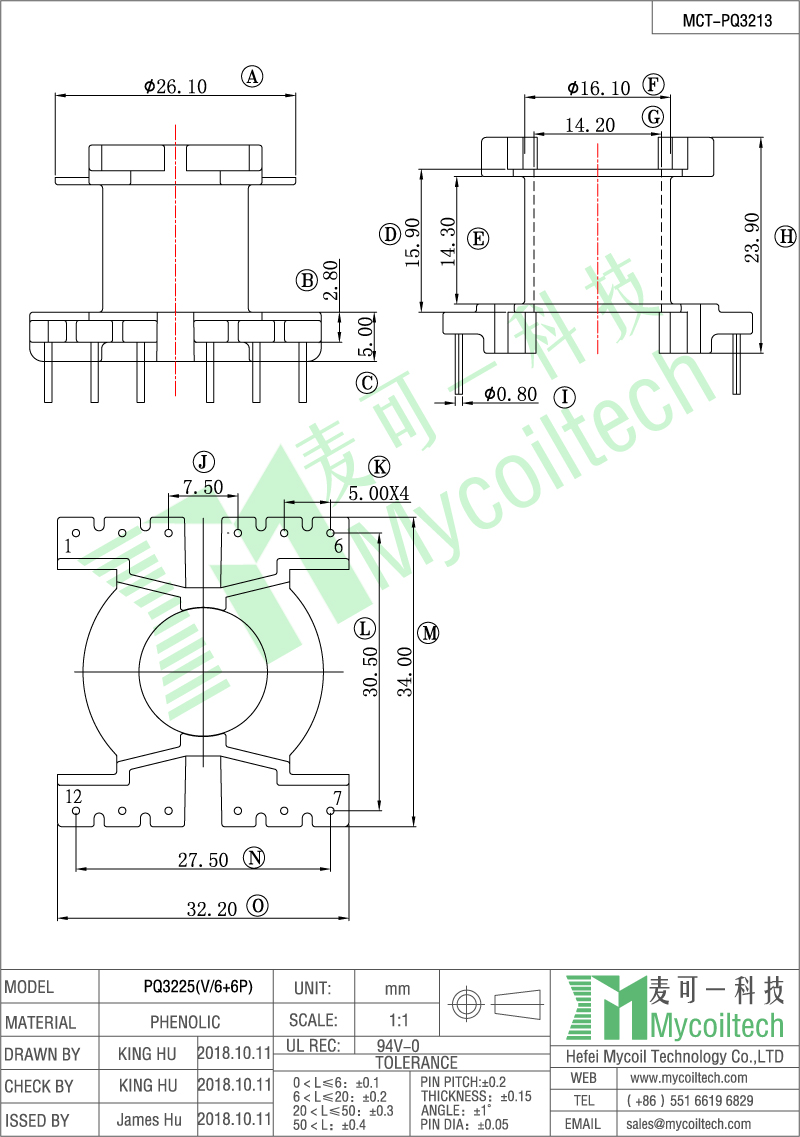

PQ bobbin for transformer magnetic cores. Vertical PQ32 12 pins coil former. Bobbin Size=34.0mmX32.0mmX18.8mm. Pin pitch=5.08mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.

PQ35 Electronic Transformer Cover. UL REC:94V-0. PA66 Material Cover. We can make bobbin tooling. Transformer cover accept custom design
