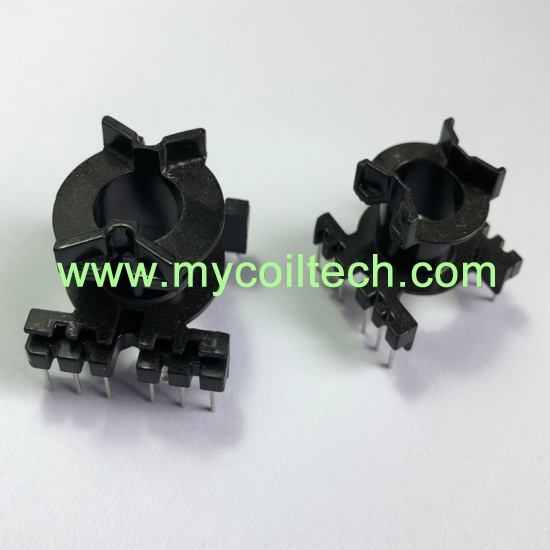

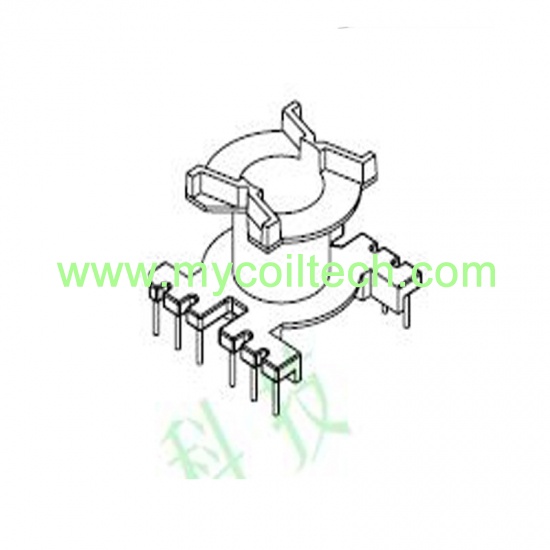

Switching power PQ32 transformer. Vertical type bobbin 6+6 pins. Bobbin Size=34.0mmX32.0mmX24.8mm. Parallel Distance=30.0mm. Pin pitch=5.08mm. PQ32 high frequency transformer has low leakage inductance and wide operating frequency range.
brand:
MCTitem no.:
MCT-PQ3214shipping port:
Shanghaipayment:
T/T in advanceprice range:
1000-5000/0.12$Manufacture power transformer, SMPS transformer and all kinds high frequency transformer, supply various ferrite cores and other electronic components.
Quick Details
|
Part No: MCT-PQ3214 |
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: PQ32 Ferrite Core High Frequency Transformer
Product Range: Transformers,inductor,bobbins,ferrite cores.
Applications: power transformer,auto transformer,LED lighting transformer,flyback transformer.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

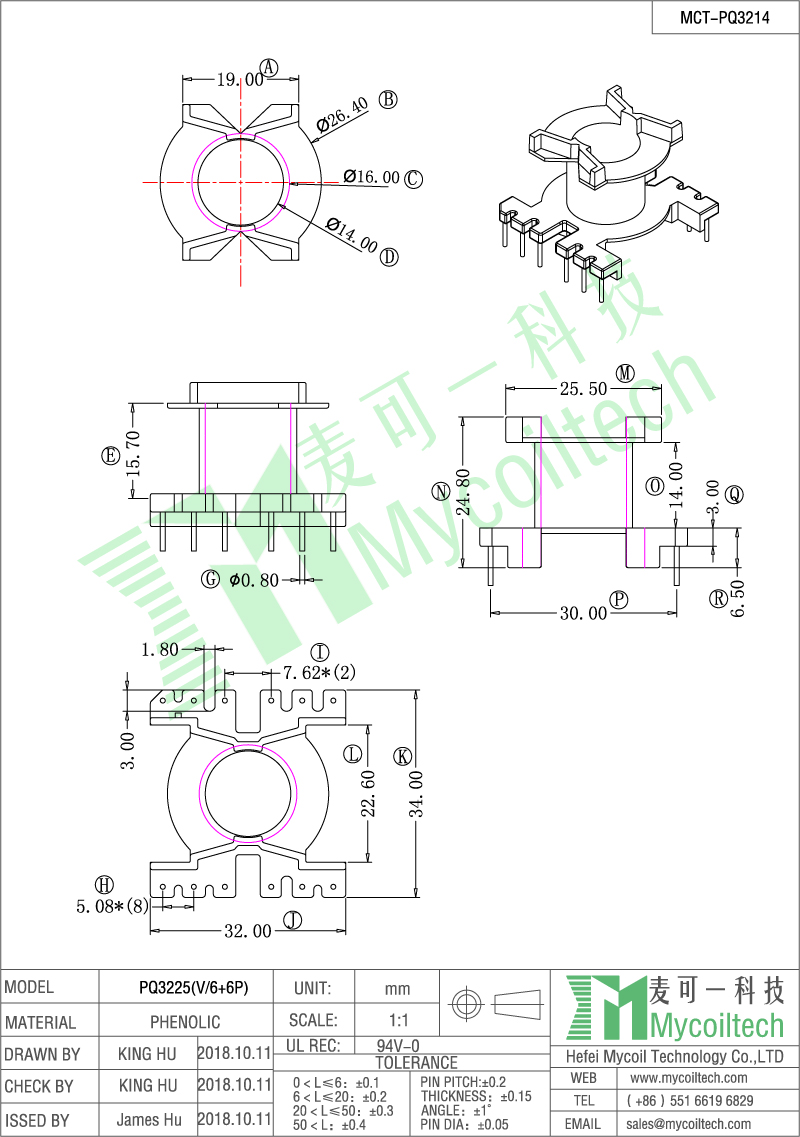

Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
Vertical PQ35 Flyback Transformer Frame
PQ35 ferrite transformer, 6+6 pin vertical PQ35/35 coil former. Bobbin Size=39.3mmX34.9mmX36.6mm. Row distance=35.5mm. Pin pitch=5.0mm. Phenolic PQ35 bobbin for high frequency transformer, used in power supplies, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
New Energy Transformer PQ50 Double Slots Coil Former
PQ50 flyback transformer bobbin. Vertical shape PR50 double slots frame. 7+7 pins PQ50 coil former. We are experienced IS09001:2015 certificated factory, our main products are various bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.Make bobbin tooling.
6+6 Pins PQ50/50 Power Transformer Frame
Flyback transformer PQ50/50 bobbin. Bobbin size=51.4mmX51.00mmX53.3mm. Pin pitch=7.6mm, Parallel distance=45.8mm. 6+6 pins PQ50/50 vertical bobbin. Single slot PQ50 coil former. We are experienced IS09001 certificated factory, our main products are bobbins, magnetic cores, transformers and filter inductors. We have specialized after-sales team and offer technology support.
PQ32 Switching Power Transformer Vertical Bobbin
PQ bobbin for transformer magnetic cores. Vertical PQ32 12 pins coil former. Bobbin Size=34.0mmX32.0mmX18.8mm. Pin pitch=5.08mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Dip bobbin. We open bobbin tooling for customers.
PQ35 Electronic Transformer Cover Made of PA66 Material
PQ35 Electronic Transformer Cover. UL REC:94V-0. PA66 Material Cover. We can make bobbin tooling. Transformer cover accept custom design
