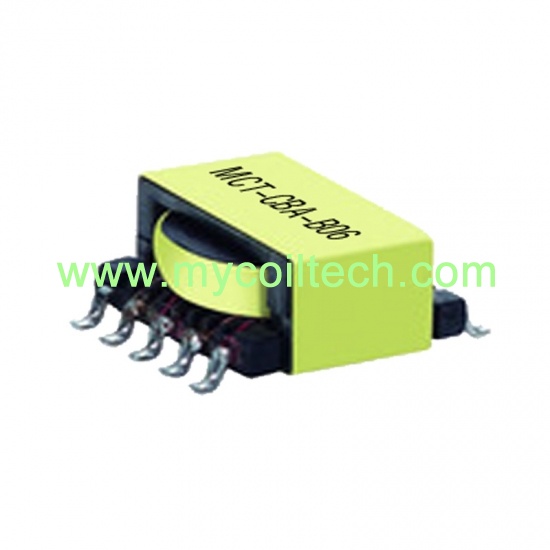

SMD ER11.5 Flexible SMPS High Frequency Transformer

ER11.5 SMPS transformer with 5+3 pin SMD coil former. It has low leakage inductance, high permeability and high saturation magnetic flux density. Different circuit will use many possibilities for quick prototyping. We can design to meet different applications.

  • brand:

    MCT
  • item no.:

    Flexible SMPS-Transformer ER11.5
  • shipping port:

    Shanghai
contact now
product description

High quality ER11.5 SMD type high frequency transformers, switching mode power supply transformer ER11.5, competitive price and good after-sale, customized specifications and OEM service also accepted.


Quick Details

Part No: Flexible SMPS-Transformer ER11.5

Brand name: MCT

Insulation test voltage: 1000V

Custom made: Available

Low leakage inductance

Logo: Can be customized

Transformer with multi-winding

Packing: Carton, can custom

Operating temperature -40°C~+125°C

MOQ: Any quantity

Certification: ISO9001,ROHS,CE

OEM: Available

Lead time: 25 days after payment

Shipping: Air, Ship, etc


Part Information

Product Name: SMD ER11.5 Flexible SMPS High Frequency Transformer

Product Range: Transformers, Inductors, coils, bobbins, ferrite cores.

Applications: Flyback converters. Forward converters. Push-pull converters. Step-Up/Step-down converters. Sepic converters(single ended primary inductor converter)

Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray

Samples time: 7-10 days for customized parts, 3-5 days for standard parts.


Product Specifications

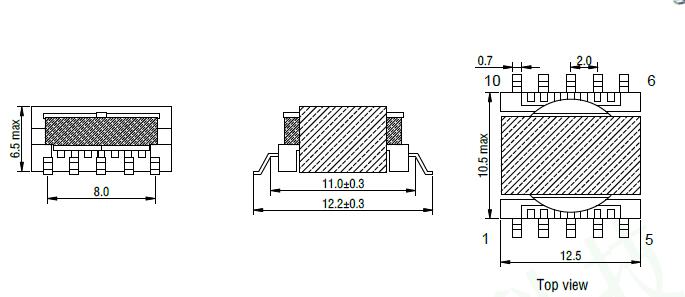

ER11.5 SMD Transformer Used In Flyback Converters

Electrical Data and Part Number(PN)

L1 in uH

L1 in mA

Lsat in mA

RDC/

PN

27.0

550

200

350

MCT-ERA-B05

14.5

550

550

350

MCT-ERA-B06

11.0

550

700

350

MCT-ERA-B07

8.5

550

950

350

MCT-ERA-B08
