Power Transformer PQ32 Isolation Transformer Bobbin12 pins PQ3225 transformer bobbin. Parallel Distance=30.5mm. Bobbin Size=34.0mmX32.2mmX23.9mm. Pin pitch=5.0mm. PQ32 high frequency transformer has low leakage inductance and wide operating frequency range. -
PM50 Precision transformer Vertical Bobbin 7+7 PinsCustomized PM50 power transformer. Single slot vertical bobbin with 7+7 pins. Bobbin size=50.7mmX23.2mmX35.9mm. Pin pitch=5.0mm. Pin distance=45.7mm. We have many bobbin tooling and we can make final transformer for customers. -
EF20 Flyback Transformer Horizontal 4+4+4 Pin BobbinEF20 MP4 ferrite core. Horizontal power transformer ef20 bobbin factory. Bobbin Size=19.5mmX12.78mmX20.1mm. Pin pitch=2.54mm. We have bobbin tooling to meet customer's requirement. -
EFD25 High Frequency Power Transformer BobbinEFD25 pcb mounting transformer. 6+6 pin single slot SDM bobbin. Bobbin Size=31.5mmX25.0mmX12.6mm. Pin pitch=4.0mm. We have bobbin tooling now, samples are available. -
EFD25 Flyback Transformer SMD BobbinEFD soft ferrite core bobbin. Mainly for pcb mounting transformer. Bobbin pin 6+6 horizontal shape. Bobbin Size=31.5mmX25.0mmX12.6mm. Pin pitch=3.75mm. We have bobbin tooling now, samples are available.
-
EVD25 5+5 Pin High Voltage Transformer BobbinEVD25 switching power transformer manufacture. 5+5 pins EVD25 high frequency bobbin. Bobbin Pin Pitch=5.0mm. Parallel Distance=22.5mm. Bobbin Size=25.5mmX25.0mmX18.0mm. EVD25 transformer factoy. Supply matched ferrite cores. -
High Frequency ER42 Transformer 7+7 Pins BobbinSoft ferrite core ER42 bobbin. Vertical ER42 7+7 pins bobbin. Bobbin Size=40.3mmX30.0mmX44.3mm. Parallel Distance=25.0mm. Pin Pitch=5.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples. -
ER42 Power Transformer Horizontal BobbinER42 horizontal transformer frame, 8+8 pin ER42 coil bobbin. Bobbin Size=44.0mmX40.0mmX33.8mm. Pin Pitch=5.0mm. Parallel Distance=35.0mm. ER42 high frequency transformer, with low magnetism leakage and good performance, we can start from samples. -
ETD54 High Voltage Power Transformer 11+11 Pin BobbinPCB mountign ETD54 transformer. 11+11 pin ETD54 horizontal bobbin. Bobbin Size=61.5mmX61.2mmX44.8mm. Pin pitch=5.08mm. Parallel Distance=45.9mm. ETD54 high frequency transformer widely used in fax machines, monitor, scanner, UPS and other equipments. -
SMPS PQ32 Vertical Transformer 2+2 Pin BobbinPQ32 power charger transformer. Vertical PQ32 2+2 pin bobbin. Bobbin size=33.0mmX32.7mmX30.6mm. Pin pitch=9.2mm. Row distance=27.2mm. We are experienced IS09001 certificated factory, our main products are transformer bobbins, magnetic cores and coil products. We accept custom design and OEM service. -
RM10 High Frequency Transformer L Pin BobbinTelecom transformer RM10 bobbin. Vertical 6+6 pin RM10 L pin bobbin. MP4/MP44/MP95 material RM10 ferrite cores. Bobbin Size=39.3mmX23.2mmX19.1mm. Parallel Distance=27.9mm. Pin Pitch1=5.08mm. Pin Pitch2=3.81mm. RМ10 transformer used in switching power supply and kinds of high-frequency circuit board, it has small volume and light weight -
PQ40 High Frequency Transformer No Pin BobbinPQ26 power supply transformer. No pin PQ40 bobbin. Bobbin Size=36.0mmX31.1mmX26.4mm. PQ40 high frequency transformer widely used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments. -

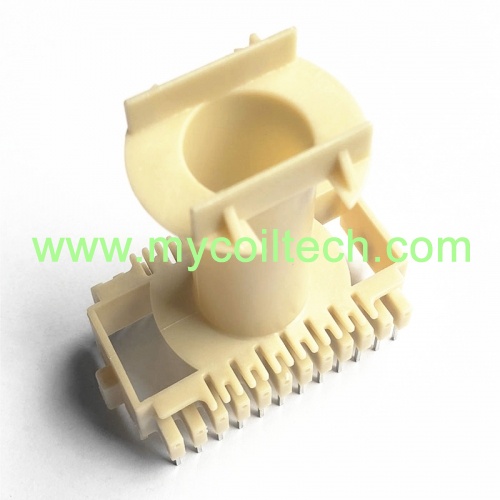

ETD59 High Frequency Flyback Transformer Vertical FrameETD59 vertical high frequency bobbin. Main power transformer PET bobbin 12+12 pin. Bobbin Size=73.1mmX39.6mmX65.7mm. Pin pitch=5.0mm. Parallel Distance=35.5mm. We produce and design various electronic transformers, mainly used in PCB circuits, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments. -
PQM35 High Frequency Transformer Vertical BobbinHigh frequency bobbin PQM35. 3+5 pin vertical shape coil former. Bobbin Size=29.0mmX25.8mmX15.3mm. Parallel Distance=25.0mm. Pin pitch=5.0mm. Good quality PQM35 power transformer, singled packed with carton, accept custom made transformer. -
PM50/40 Transformer Coil Former Vertical BobbinPM50 14pins transformer frame, vertical type PM50 bobbin with PM9820 material. Bobbin size=56.8mmX33.9mmX25.9mm. Pin pitch=5.0mm. Pin distance=46.0mm. We have made PM50 transformer bobbin tooling, if you need samples, we can provide very fast. -
ER42 Vertical Transformer 4+1 Pin Bobbin Double SlotsVertical ER42 coil former, 4+1 pin ER42 transformer bobbin. Bobbin Size=37.6mmX33.0mmX52.7mm. Parallel Distance=28.0mm. ER42 high frequency vertical transformer, with low magnetism leakage and good performance, we can start from samples. -
EQ40 High Frequency Power Transformer BobbinEQ40 smps transformer bobbin, 6+6 pin vertical EQ40 bobbin. Bobbin Size=45.4mmX36.8mmX19.8mm. Pin distance=5.0mm. Parallel distance=39.0mm. We are China bobbin factory, we supply various magnetic ferrite cores with competitive price. -
EP10 Flyback Power Transformer SMD BobbinEP10 transformer bobbin factory. EP10 coil bobbin for transformer. SMD EP10 4+4 pin horizontal bobbin. Size=14.6mmX11.4mmX10.5mm. Pin pitch=2.5mm. Parallel distance=7.0mm. EP10 small electronic transformer mainly used for communications control equipment, switching power supply, chargers, alarm system and inverters. Custom designs available. -
Horizontal EF25 Transformer Bobbin 5+5 PinsHorizontal EF25 coil former, high frequency bobbin 5+5 pins. Parallel Distance=20.0mm. Pin distance=5.0mm. Bobbin Size=26.4mmX26.3mmX19.2mm. Flyback transformer EF25 bobbin with PA66 PET FR530 material. We can make new EF25 bobbin tooling to meet special size bobbin. -
ETD54 High Voltage Power Transformer 11+11 Pin BobbinFlyback transformer ETD54. 11+11 pins vertical ETD54 single slot bobbin. Bobbin Size=67.7mmX36.6mmX61.9mm. Pin pitch=5.08mm. Parallel Distance=33.02mm. ETD54 bobbin PBT material, high frequency transformer widely used in charger, power supply, fax machines, monitor, scanner, UPS and other electronic equipments. -
ETD39 High Voltage Transformer Frame 8+8 Pins8+8 pins ETD39 horizontal bobbin, ETD39 DIP transformer frame. Parallel Distance=30.0mm. Pin pitch=5.0mm, Bobbin Size=42.0mmX41.5mmX32.68mm. ETD39 power transformer has high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipment and instruments. -
RM8 High Frequency Flyback Transformer BobbinRM8 6+6 pins vertical bobbin, through hole RM8 ferrite core bobbin, phenolic material coil former, bobbin size=24.5mmX16.7mmX12.5mm. Pin pitch=3.5mm. RM8 power transformer mainly used in UPS, communication advice, AC-DC converters, computers, printers. We have many size of RM8 bobbins, for special size, we can make new bobbin toolings. -
PQ32 Flyback Transformer Vertical Bobbin6+6 pins PQ32/30 coil bobbin, PQ32 high frequency transformer. Bobbin Size=34.5mmX33.0mmX30.7mm. Pin pitch=5.0mm, parallel distance=30.0mm, Phenolic PQ32 bobbin for high frequency transformer, accept custom made and OEM service. -
PQ32 High Frequency Transformer BobbinPQ32 ferrite core bobbin, 6+6 pins vertical PQ32 coil former. Bobbin Size=33.85mmX31.9mmX30.2mm. Pin pitch=5.08mm, parallel distance=22.52mm, Phenolic PQ32 transformer bobbin for high frequency transformer, we accept custom made bobbin toolings. -
EF16 PCB Mounting Transformer Horizontal Bobbin4+4 pins EF16 coil former. EF16 ferrite core bobbin, parallel distance=15.05mm. Pin pitch=3.80mm. Bobbin size=21.85mmX18.7mmX16.85mm. EF16 electronic transformers are widely used in electrical equipment, household applications, medical equipment, computers, switching power supplies, communication equipment, power component, vehicle electronic equipment. -
EE22 High Frequency Switching Power Supply BobbinEE22 through hole bobbin, 5+5 pins EE22 vertical bobbin. Vertical EE22 DIP bobbin. Phenolic material EE22 coil bobbin. Parallel Distance=10.0mm. Pin pitch=4.0mm. Bobbin Size=22.0mmX15.7mmX17.3mm. We are transformer bobbin factory and delove bobbin toolings, for special size bobbin, we can custom bobbin tooling and we also manufacture various high frequency transformers for SMPS.
