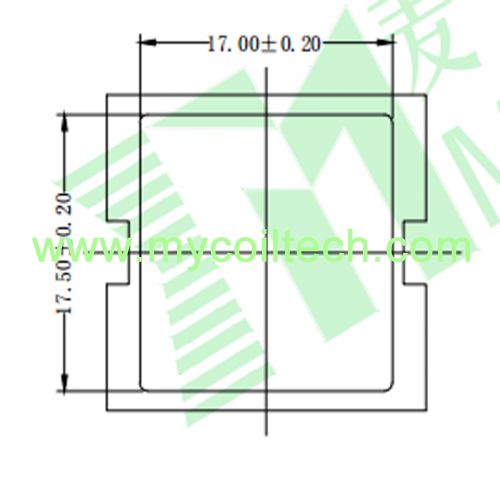

EFD20 High Voltage Transformer ClipProduction of transformer clip. Clamp size=21.5mmX6mmX17.50mm.We can customize transformers with special dimensions, including transformer-related accessories. -
EFD20 Square Clamp For Power TransformerEFD20 transformer SUS301 clamp. Best selling EFD20 transformer clamp. Size=21.5mmX20.0mmX6.0mm. This clamp is designed for superior performance and reliability in industrial applications. We can customize transformers with special dimensions, including transformer-related accessories. -

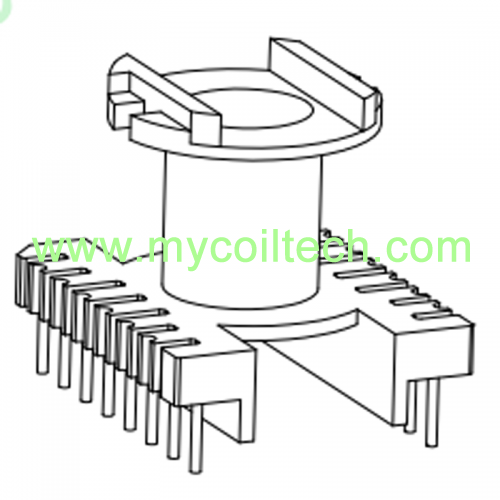

ER28 Power Transformer Vertical Bobbin 8+8PinsER28 ferrite core bobbin, 8+8 pins ER28 single slot coil former. Bobbin size=24.8mmX31.5mmX25.2mm, parallel distance=20mm, pin pitch/distance=4.0mm. T375 material ER28 bobbin, we can custom final transformers. -

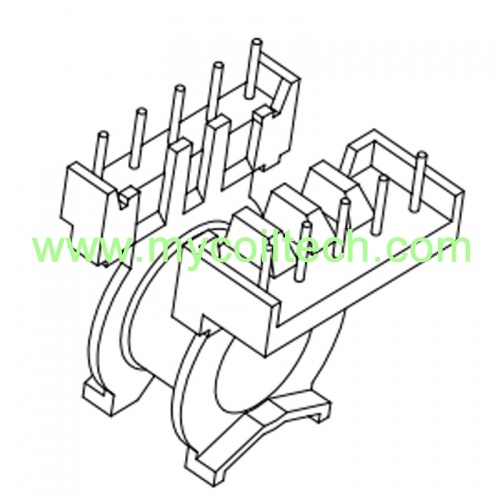

EF20 Horizontal Multi Slot Transformer Bobbin 4+4 PinsEF20 multi slot power transformer bobbin is a very popular product in our factory, 5+5 pins EF20 Vertical bobbin,bobbin former size=18.2mmX19.9X20.8mm.We accept custom orders for high frequency transformers, inductors, current transformers, etc. -
EPC46 Square High Frequency Transformer CoverCustomization of Transformer Cover EPC46. Best selling EPC46 transformer clamp. Size=47.0mmX50.0mmX29.9mm,The thickness is 0.75mm. This cover is designed for superior performance and reliability in industrial applications. We can customize transformers with special dimensions, including transformer-related accessories.We also accept small batch orders. -
EPC17 Square Clamp For Power Transformer CustomizeBest selling EPC17 transformer clamp. EPC17 transformer SUS301 clamp.Size=18.6mmX18mmX3mm. Transformer clips are used to fix components like iron cores and coils, ensuring structural stability and preventing displacement due to vibration during operation.We also provide customized services for transformer related products. We have a professional factory that accepts small batch orders. -
EFD40 Horizontal Double Slot Coil Former 8+8 PinsEFD40 high frequency transformer multi slot bobbin is a very popular product in our factory, 8+8 pins EFD40 horizontal bobbin,bobbin former size=42.60mmX41.00X17.40mm.We accept customized transformer frame sizes. If your industry belongs to laboratory research and development, medical equipment, military industry, or manufacturing, you can contact us at any time and we can provide transformer samples. -
EFD40 Horizontal Multi Slot High Frequency Transformer Bobbin with 7+9 L PinsNewly developed EFD40 horizontal transformer bobbin with 7+9 pins for customers. Bobbin size=45.00mmX44.30X13.20mm. Pin distance=5.00mm. We can customize products for customers, including bobbins, covers, clips, cores, and more. At the same time, we can manufacture finished transformers that can be applied to industrial automation, communication equipment, military equipment, and other fields. If you have any needs, you can contact us. -
EFD25 Flyback Transformer Horizontal Bobbin 6+6 PinsHome appliance switch transformer EFD25 transformer 6+6 pins is a very popular product in our factory,,bobbin former size=28.80mmX26.00X13.50mm.Pin distance=5.00mm,Pin row distance=22.50mm.We have a professional design team capable of providing tailored customization services, covering current transformers, common mode inductors, high-frequency transformers, potted transformers, and more.If you have any questions about the product, please feel free to contact us and our professional technical engineers will answer them for you. -
EFD10 High Frequency Electronic Transformer ClampsProduction high frequency transformer clip. Clamp size=12.00mmX10.50mmX2.80mm.Our products are suitable for high frequency transformers, low frequency transformers, potting transformers, etc accessories.At the same time, our company specializes in producing transformer bobbins, transformer covers, transformer bases, inductors, etc -
EFD25 DC-DC High Frequency Voltage Converter Horizontal Bobbin 4+4 PinsHandheld power switch transformer bobbin,This EFD25 coil former size=26.30mmX26.10X13.80mm.Pin distance=3.63mm,Pin row distance=20.00mm.This product is made of PHENOLIC material, which has excellent insulation properties and can withstand high voltages; Strong arc resistance, reducing discharge damage; High temperature resistance and flame retardancy, ensuring safety; High mechanical strength, not easily deformed; Resistant to chemical corrosion, adaptable to complex environments, making the product more stable. The service life is greatly extended. -
PQ32 Vertical Flyback Coil Former 6+6 PinsPQ32 servo motor driver transformer Vertical bobbin, 6+6 pins PQ32 bobbin. Coil former size=34.2mmX31.80mmX19.40mm, parallel distance=30.00mm, pin distance 1=5.00mm. pin distance 2=7.50mm. The PQ32 series is just one of the best selling products, and we also offer transformers covers, transformers bases, transformers cases, and more. We also support customized sizes, including related dimensions and product molds. If you have any product issues, please feel free to contact us at any time. -
LLC Power Horizontal Transformer Bobbin 22+22 PinsETD39 horizontal High frequency stransformer frame 22+22 pins ,ETD39 coil former size=59.20mmX36.40X29.00mm.Pin row distance=39.30mm,Pin distance =2.54mm.This material, with its high insulation, heat resistance, dimensional stability, and process adaptability, has become the best insulation structural material, especially in high-frequency, high-temperature, and high reliability scenarios, which can effectively ensure the electrical safety and long-term stable operation of transformers. This is the fundamental advantage of our product. If you would like to learn more about our products, please feel free to contact us at any time. -
SMD-EP7 Charger Horizontal Transformer Bobbin 3+3 PinsThe industrial sensor interface SMD EP7 transformer frame 3+3pins can be used for signal conditioning modules of temperature and pressure sensors, achieving isolation amplification and transmission of analog signals, with a typical isolation voltage of ≥ 2kV. It can also provide isolation power for servo motor control circuits, supporting high-frequency PWM signal driving (such as 25kHz-100kHz), and adapting to high interference environments in industrial sites. Simultaneously used for PLC input and output modules: serving as a signal isolation transformer to ensure safe transmission of weak electrical signals in strong electrical environments of industrial sites, in compliance with IEC 61131-2 standard. -
PQ26 Horizontal Coil Former for Household to Circuit Power Supply 5+5 PinsPower switch transformer bobbin,5+5 pins PQ26 bobbin. Coil former size=25.00mmX25.00mmX29.20mm, parallel distance=20.50mm, pin distance=5.00mm.Our product has excellent edge property, high dielectric strength and low loss, and can adapt to high frequency isolation requirements; Secondly, it has strong heat resistance and wide temperature resistance (- 40 ℃ to 150 ℃), vibration resistance and high mechanical strength, and can adapt to complex working conditions; In addition, good dimensional stability and low shrinkage can match the compact structure of PQ26; Moreover, it is water-resistant, oil-resistant and moisture-proof, with durable insulation; Moreover, the flame retardancy reaches UL94 V0 and the safety is guaranteed, so as to perfectly adapt to the application requirements of PQ26 in high frequency, compact and multi-scene (vehicle-mounted, industrial, etc.). -
Intelligent Sensor Horizontal Transformer Bobbin 3+3 PinsSMD-EP7 High-efficiency transformer bobbin: Compatible with consumer electronics (fast charging for mobile phones, power supplies for laptops), smart home (sensors, smart switches), and industrial control (small PLCS, sensor modules), its surface mount design fits the compact layout of devices, meeting the voltage conversion requirements in low-power scenarios and enhancing circuit integration. -
Smart home appliance control board SMD-ER11.5 transformer bobbinCar charger SMD-ER11.5 transformer bobbin,With LCP-E4008 material as the skeleton, the SMD-ER11.5 transformer features excellent high-temperature resistance and stability, making it suitable for application environments with high temperatures, high humidity, and compact Spaces. It is widely applied in automotive electronics, communication base stations, smart home controllers and portable digital devices, ensuring stable power supply for precision electronic equipment with reliable performance. -
Portable Power Bank Mini Module Horizontal Transformer Bobbin 5+5 L PinsThe industrial small temperature and humidity sensor transformer bobbin, sensor power supply, SMD-EP13 has the advantages of surface mount easy integration and anti-electromagnetic interference (accurate data). Youdaoplaceholder0 Resistant to industrial dust, flame-retardant UL94 V-0 grade, stable operation in the hot and humid workshop environment, avoiding sensor data drift. -
Small Security Wireless Door Magnet Transformer Bobbin 5+5 L PinsThe smart home smart socket transformer bobbin supplies power to the socket power module. The SMD-EP13 has the advantages of space-saving surface mount technology and wide voltage input (100-240V). Youdaoplaceholder0 Insulation resistance ≥10¹⁴Ω · cm, preventing socket leakage and ensuring household electrical safety. -
Switching power Supply ER28 Transformer Bobbin 6+6 PinsAutomotive electronic switching power supply transformer bobbin, In vehicle navigation and chargers, the ER28 transformer can withstand a wide temperature range of -40 ℃ to 125℃. The PHENOLIC frame is anti-vibration and resistant to voltage shock, suitable for vehicle 12V/24V power conversion, ensuring the stable operation of vehicle equipment in complex road conditions. -
Photovoltaic Inverter ER28 Horizontal Transformer Bobbin 6+6 PinsTest instrument switch horizontal transformer bobbin,Applied in precision equipment such as oscilloscopes and multimeters, the ER28 transformer achieves precise voltage conversion. The PHENOLIC skeleton has high insulation accuracy and low loss, providing a stable signal source for test instruments and enhancing the accuracy and repeatability of measurement data. -
ER35 New Energy Charging Pile Vertical Crossover Transformer Bobbin 11+11PinsER35 GaN Fast Charging Vertical Crossover Transformer Bobbin Core is optimised for LLC resonant converters, GaN fast charging modules, and PFC boost transformers. It is also extensively employed in the winding assemblies of switching power supplies and high-frequency transformers, serving as a core structural component in high-frequency power conversion equipment. -
ER28 Communication Base Station Transformer BobbinER28 switch-mode power supply transformer bobbins are widely used in the adapter industry. Their primary functions are to support coils, secure the magnetic core, and provide electrical insulation. Made of phenolic material, they offer excellent heat resistance and flame retardancy, high insulation strength to prevent electrical leakage, and high mechanical hardness that resists deformation and cracking. Designed for high-frequency winding applications, they feature high dimensional accuracy and comply with safety standards. These bobbins effectively secure windings, suppress interference, extend transformer lifespan, and reduce operational failures. -
ER28 Home Appliance Control Board Transformer BobbinER28 High-Frequency Power Supply Transformer Bobbin,The ER28 transformer bobbin is designed primarily for 60–150W high-frequency switching power supply applications. It is made from UL94V-0 flame-retardant material and offers excellent insulation and high-temperature resistance. With its uniform structure and scientifically designed pin layout, it is perfectly suited for automated winding operations. It effectively reduces equipment losses and minimizes the overall size of the unit, making it a core component for small- and medium-power high-frequency power supplies.
