EE22 high frequency transformer. 5+5 pin EE20 vertical transformer frame. Bobbin Size=22.2mmX15.8mmX18.0mm. Pin Pitch=4.0mm. Row distance=10.0mm. EE22 transformers widely used in switching power supply, LED lights, NC machine, measurement and control unit.
product origin:
Chinabrand:
MCTitem no.:
MCT-EE2201shipping port:
ShangHaipayment:
T/T in advanceSmall electronic transformer, EE22 vertical shape coil former, good quality and low price, welcome trial order and customized inducto.
Quick Details
|
PN: MCT-EE2201
|
Brand Name: MCT |
|
Material: Phenolic |
Color: Black |
|
UL REC: 94V-0 |
Logo: Can be customized |
|
Lead Time: 20 days after payment |
Custom Made: Available |
|
Certification: ISO9001,ROHS,CE |
Packing: Carton, accept customize |
|
OEM: Available |
MOQ: Any quantity |
Part Information
Product Name: Vertical EE22 Switching Transformer 5+5 Pin bobbin
Product Range: Transformers,Filters,Coils,Relays,Bobbins,Magnetic cores.
Applications: SMPS transformer,LED drive transformer,power charger transformer,encapsulated transformer.
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Shipping Details: By air, By ship, etc.

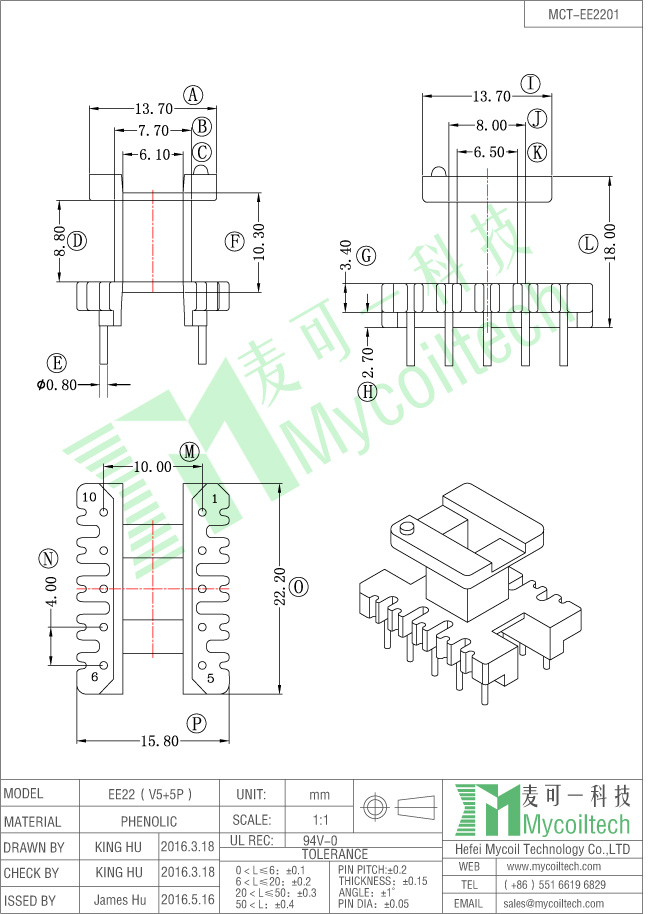

Product Specification
For more details, welcome to contact us.
Email: sales003@mycoiltech.com
Skype: live:sales003_125
Contact: Miss Lily
