T25 ferrite core choke with base can achieve high suppression at low frequency ranges, it has very compact design, highest possible current with small sizes. Operating temperature: –40 ºC to +105 ºC ,accept custom designs.
brand:
MCTitem no.:
MCT B25V with Base Series Common Mode Chokeshipping port:
Shanghai
Our common mode choke coils with phenolic base mainly used in electronic devices EMI radiated noise suppression, common mode filter, toroidal inductor, high frequency transformer, etc. we accept custom made.
Quick Details
Part Number: MCT B25V with Base Series Common Mode Choke |
|
Brand name: MCT |
Type: Choke Inductor, High requency |
|
Custom made: Available |
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
Lead time: 25 days after payment |
|
OEM: Available |
Part Information

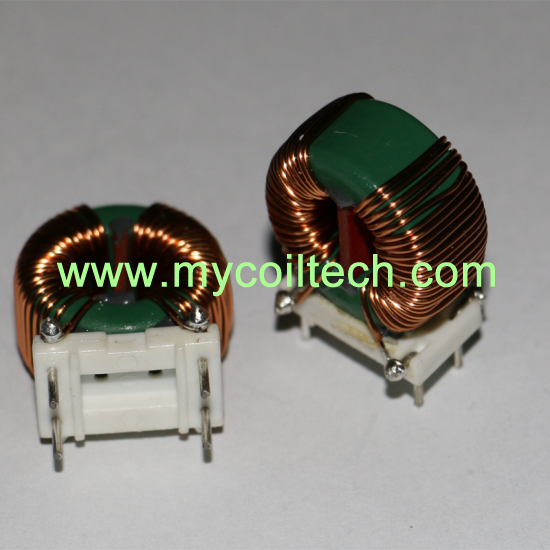

Product Name: B25V Common Mode Inductor Choke Coils with Base
Applications: Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Typical electrical parameter
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
MCTB25V333A15 |
33.0 |
0.40 |
1.5 |
MCTB25V223A20 |
22.0 |
0.25 |
2.0 |
MCTB25V103A25 |
10.0 |
0.15 |
2.5 |
MCTB25V682A30 |
6.80 |
0.10 |
3.0 |
MCTB25V392A40 |
3.90 |
0.05 |
4.0 |
MCTB25V332A50 |
3.30 |
0.04 |
5.0 |
MCTB25V222A90 |
2.20 |
0.02 |
9.0 |
MCTB25V102AE0 |
1.00 |
0.01 |
15.0 |
MCTB25V681A14 |
0.68 |
0.006 |
20.0 |
We can decign it.If you have any requests, please contact us, we will give you fast reply
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Magnetic core inductor storage inductor manufacturer. Our inductor has high efficiency, high power, high current, low power loss, low temperature rise, high temperature grades also available.
Common mode inductor with base has high efficiency, high power, high current, low power loss, low temperature rise,high temperature grades also available. As excellent EMI suppressor, SMT and low profile also available.
Common mode choke coils with base has low frequency ranges, very compact design, Operating temperature: –40 ºC to +105 ºC. Mainly for AC/DC and DC/DC EMI line noise suppression. Communication system EMI line noise suppression. Automotive system EMI line noise suppression. Computer peripheral equipment EMI line noise suppression
Common mode choke with base mainly for power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer.
5+5 pins EP20 transformer bobbin. Phenolic material bobbin. Parallel Distance=18.1mm. Pin pitch=5.1mm. Size=25.1mmX21.9mmX16.5mm. UL REC:94V-0. Custom design acceptable.
High frequency bobbin PQM35. 3+5 pin vertical shape coil former. Bobbin Size=29.0mmX25.8mmX15.3mm. Parallel Distance=25.0mm. Pin pitch=5.0mm. Good quality PQM35 power transformer, singled packed with carton, accept custom made transformer.
High quality EEL19 plastic coil bobbin. Horizontal EEL19 transformer bobbin. 5+7 pin EEL19 bobbin. Pin pitch=3.5mm. We can make bobbin tooling. Parallel distance=25mm. Bobbin EEL19 Size=30mmX28mmX15.5mm.
Winding bobbin for transformer. Horizontal type 10 pins bobbin. Bobbin Size=25.9mmX25.2mmX19.2mm. Pin pitch=5.0mm. Parallel Distance=20.0mm. Transformer bobbin with PA66 material. DIP transformer bobbin.
4+4 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Parallel Distance=10mm Size=13mmX12.7mmX11.7mm
EE19 power transformer bobbin. 4+4 pin horizontal coil former. Parallel distance=12.9mm. Pin Pitch=3.8mm. Bobbin Size=19.0mmX17.0mmX15.6mm. Nylon material transformer bobbin.
EI12.5 ferrite core bobbin, 5+5 pins EI12.5 coil former. Bobbin size=12.6mmX12.2mmX8.7mm, Parallel distance=7.5mm. Bobbin pin pitch=2.5mm. We produce various transformer bobbins and supply magnetic cores, we accept make new tooling to meet special size requirements.
5+5 pin transformer case. China bobbin factory, we're specially producing all kinds of inductors, flyback transformers, LAN transformers, coils, etc.Case Size=27.0mmX18.1mmX29.8mm. Pin distance=5.0mm. Parallel distance=15.0mm. We can send SGS report of materials to prove our products.
