Magnetic core inductor storage inductor manufacturer. Our inductor has high efficiency, high power, high current, low power loss, low temperature rise, high temperature grades also available.
brand:
MCTitem no.:
MCT B31V with Base Series Common Mode Chokeshipping port:
ShanghaiToroidal common mode choke with base widely used in various switching power suppliers and high frequency electronic equipment. All materials are environmental protected. We accept custom made and design service.
Quick Details
Part Number: MCT B31V with Base Series Common Mode Choke |
|
Brand name: MCT |
Type: Choke Inductor, High requency |
|
Custom made: Available |
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
Operating temperature:-40°C~+105°C. |
|
Shipping: Air, Ship, etc |
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
Lead time: 25 days after payment |
|
OEM: Available |
Part Information

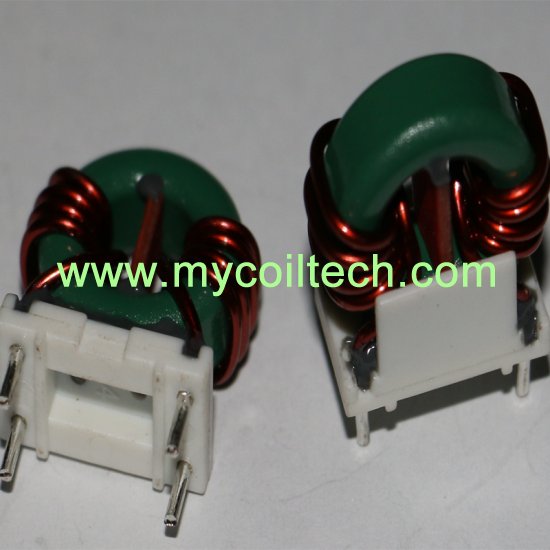

Product Name: B31V Magnetic Core Common Mode Inductor with Base
Applications: Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Typical electrical parameter
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
MCTB31V333A15 |
33.0 |
0.25 |
2.0 |
MCTB31V253A30 |
25.0 |
0.15 |
3.0 |
MCTB31V153A40 |
15.0 |
0.10 |
4.0 |
MCTB31V103A50 |
10.0 |
0.06 |
5.0 |
MCTB31V682A60 |
6.80 |
0.04 |
6.0 |
MCTB31V332A80 |
3.30 |
0.025 |
8.0 |
MCTB31V202AC0 |
2.00 |
0.010 |
12.0 |
MCTB31V102A14 |
1.00 |
0.006 |
20.0 |
We can decign it.If you have any requests, please contact us, we will give you fast reply
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Common mode inductor with base has high efficiency, high power, high current, low power loss, low temperature rise,high temperature grades also available. As excellent EMI suppressor, SMT and low profile also available.
Common mode choke coils with base has low frequency ranges, very compact design, Operating temperature: –40 ºC to +105 ºC. Mainly for AC/DC and DC/DC EMI line noise suppression. Communication system EMI line noise suppression. Automotive system EMI line noise suppression. Computer peripheral equipment EMI line noise suppression
Common mode choke with base mainly for power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer.
T25 ferrite core choke with base can achieve high suppression at low frequency ranges, it has very compact design, highest possible current with small sizes. Operating temperature: –40 ºC to +105 ºC ,accept custom designs.
3+3 Pins Vertical Bobbin,Phenolic Material,UL REC:94V-0 Pin pitch=5mm, Parallel Distance=8.5mm Size=12.4mmX12.4mmX11.5mm
ETD34 power transformer. 15+15 pins horizontal coil former. Bobbin Size=40.0mmX39.0mmX29.4mm. Pin pitch=2.54mm. Parallel Distance=29.0mm. We supply ETD34 EC34 ferrite core and transformers. ETD34 flyback transformer widely used in USB charge, LEDlighting, inverters, medicial supplies, power supply,amplifier,electrical equipments, etc.
ER28 vertical bobbin 6+6 pins. ER28 phenolic material bobbin. Bobbin Size=28.7mmX27mmX36.4mm. Pin Pitch=5mm. Parallel distance=22.5mm. We can make tooling. DIP bobbin. UL REC:94V-0
High reliability transformer bobbin. EF20 7+8 pins coil former. Bobbin Size=25.8mmX20.0mmX16.5mm. Parallel Distance=19.4mm. Pin pitch=2.5mm. EF20 bobbin made of PM9820 material.
EL19 5+5 pin transformer bobbin. Vertical type transformer bobbin. Parallel distance=12mm. Pin Pitch=4mm. Phenolic bobbin. Dip bobbin. Bobbin Size=22.5mmX15.8mmX29.2mm. UL REC: 94V-0
EF20 ferrite core bobbin. 6+8 pins transformer EF20. Bobbin Size=24.77mmX20.8mmX20.5mm. Pin pitch=2.6mm. Parallel Distance=20.0mm. EF20 horizontal coil bobbin. EF20 transformer DIP bobbin. PA66 material transformer bobbin.
14 pins phenolic ERL type bobbin. Vertical transformer bobbin. Parallel Distance=22.5mm. Pin Pitch=5.0mm. UL REC:94V-0 Bobbin Size=35mmX28.1mmX41mm. Accept make bobbin tooling.

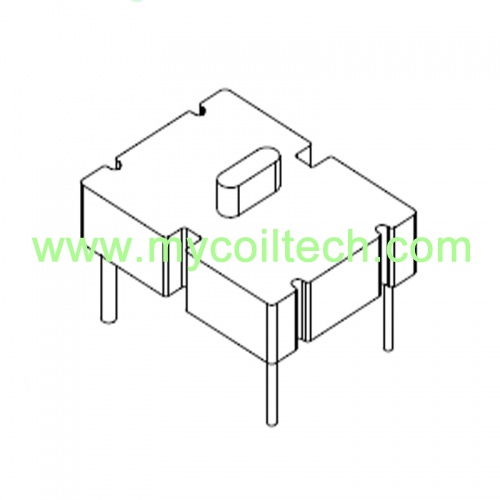

Power inductor ET20 base. 2+2 pins ET20 bobbin base. Base Size=21.2mmX21.2mmX14mm. ET/UT20 phenolic material bobbin base. Pin pitch=10mm. We can make tooling to meet different dimensions. UL REC: 94V-0
