Common mode choke coils with base has low frequency ranges, very compact design, Operating temperature: –40 ºC to +105 ºC. Mainly for AC/DC and DC/DC EMI line noise suppression. Communication system EMI line noise suppression. Automotive system EMI line noise suppression. Computer peripheral equipment EMI line noise suppression
brand:
MCTitem no.:
MCT B42V with Base Series Common Mode Chokeshipping port:
ShanghaiHigh quality electronic components from ISO9001 factory, Hefei Mycoil Technology Co.,LTD. Toroidal common mode choke has high frequency and low power loss.
Quick Details

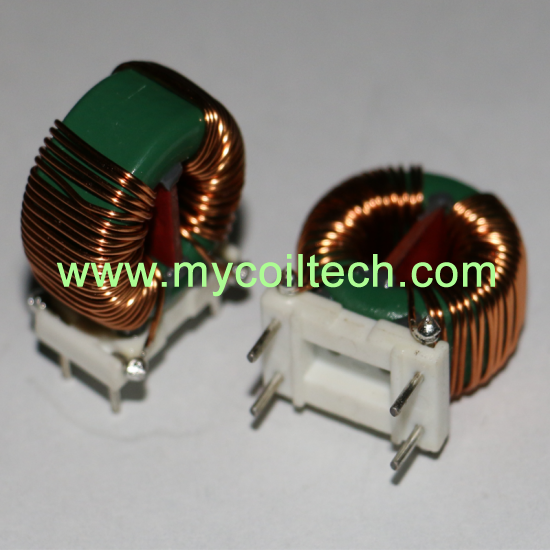

Part Number: MCT B42V with Base Series Common Mode Choke |
|
Brand name: MCT |
Type: Choke Inductor, High requency |
|
Custom made: Available |
Testing frequency: 1KHz/0.25V |
|
Logo: Can be customized |
Operating temperature: -40°C~+105°C. |
|
Shipping: Air, Ship, etc |
Certification: ISO9001,ROHS,CE |
|
MOQ: Any quantity |
Lead time: 25 days after payment |
|
OEM: Available |
Part Information

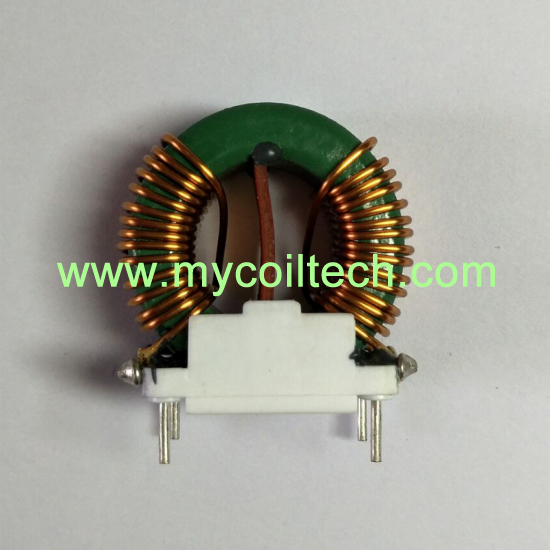

Product Name: B42V PCB Board Common Mode Choke Filter with Base
Applications: Power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer. Power Conditioning System.
Packing Details: PP packing belt + Outer packing hard paper carton + inner packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Product Specification
Both fig A and fig B dimension can choose. Dimension in mm Tolerance:±0.03
Typical electrical parameter
MCT Part No. |
Inductance(mH) min |
DC Resistance(Ω)max |
Rated Current(A) |
MCTB42V104A20 |
100.0 |
0.50 |
2.0 |
MCTB42V563A40 |
56.0 |
0.20 |
4.0 |
MCTB42V333A70 |
33.0 |
0.10 |
7.0 |
MCTB42V183AA0 |
18.0 |
0.05 |
10.0 |
MCTB42V103AF0 |
10.0 |
0.03 |
15.0 |
MCTB42V682AA1 |
6.80 |
0.02 |
17.0 |
MCTB42V422A14 |
4.20 |
0.015 |
20.0 |
MCTB42V302A19 |
3.00 |
0.012 |
25.0 |
MCTB42V222A1E |
2.20 |
0.009 |
30.0 |
We can decign.If you have any requests, please contact us, we will give you fast reply
Email: sales003@mycoiltech.com
Skype: sales003_125
Contact: Miss Lily Yu
Magnetic core inductor storage inductor manufacturer. Our inductor has high efficiency, high power, high current, low power loss, low temperature rise, high temperature grades also available.
Common mode inductor with base has high efficiency, high power, high current, low power loss, low temperature rise,high temperature grades also available. As excellent EMI suppressor, SMT and low profile also available.
Common mode choke with base mainly for power supply. Power line in and output filter, for filtering of devices without a stable ground connection. Large current choke coils. Radio interference suppression in motor. Power over Ethernet Transformer.
T25 ferrite core choke with base can achieve high suppression at low frequency ranges, it has very compact design, highest possible current with small sizes. Operating temperature: –40 ºC to +105 ºC ,accept custom designs.
5+2 Pins Horizontal Bobbin,Phenolic Material,UL REC:94V-0 Pin Pitch1=2.75mm Pin Pitch2=9mm Parallel Distance=16mm Size=19.4mmX12.6mmX13.1mm
Magnetic ferrite toroidal cores for transformers, inductors,sensors, motors,rotors, wind generators, magnetic holder, filters automobiles. Low noise, low magnetizing current.
2+2 pins toroidal core base. Common mode coil supply. Filter inducor with bottom base, we manufacture final high power inductors and export to foreign countries. Our common mode choke mainly for portable communication equipment, computer and DC/DC converters,etc.
EP10 PCB mount transformer. Horizontal EP10 single slot coil former. Bobbin Size=14.6mmX11.4mmX10.5mm. Pin pitch=2.5mm. Parallel distance=7.0mm. EP10 electronic transformer mainly used for communications control equipment, switching power supply, chargers, alarm system and inverters. Custom designs available.
ETD59 flyback transformer clips, SUS301 material ETD59 bobbin. Clip size=66.9mmX22.0mmX12.6mm. We produce various bobbins, we can make new tooling to meet special size requirements. RM6 electronnic transformers widely used for PCB circuits, UPS, computers, switching power supplies,TVs, monitor, scanner and other electronics.
EE42 high frequency transformer. EE42 vertical winding bobbin 18pins. Bobbin Size=45.0mmX32.0mmX29.4mm. Parallel distance=27.5mm. Pin pitch=5.0mm. We can make bobbin tooling. Phenolic material bobbin.
PQ35 ferrite transformer, 6+6 pin vertical PQ35/35 coil former. Bobbin Size=39.3mmX34.9mmX36.6mm. Row distance=35.5mm. Pin pitch=5.0mm. Phenolic PQ35 bobbin for high frequency transformer, used in power supplies, printers, filters, fax machines, computers, UPS, monitor, scanners, mobile adapters and other equipments.
EP7 SMD power transformer clip. Stainless steel spring transformer clips. Clip Size=10.0mmX6.0mmX6.5mm. EP7 bobbin mainly used in network communication transformers, high frequency switching power transformers, LED mini transformers, etc. There is ready stock for our regular and hot selling parts.
