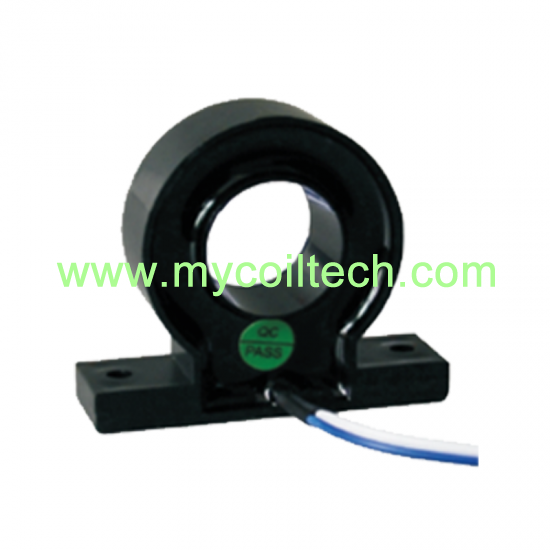

Precision current transformer output 10mA. Insulation Rating Class F (155OC). Threading aperture Φ20. Lsolated withstand voltage:3000V. Built-in busbar. Mainly used in current measurements, power meter,current control circuit. Materials UL94V-0.
brand:
MCTitem no.:
MCT21A05 Precision Current Transformershipping port:
ShanghaiProfessional magnetic components factory, supplied various types transformer bobbins, magnetic cores, choke coils,5A/20A/30A/50Aprecision current transformer, other electronic accessories, all products accept custom made!
Quick Details
|
Part No: MCT21A05 Precision Current Transformer |
|
Brand name: MCT |
|
Operating temperature：-40°C~50°C |
|
Custom made: Available |
|
Storage temperature:-40°C~70°C |
|
Logo: Can be customized |
|
Relative humidity:10~95% |
|
Packing: Carton, can custom |
|
Rated input current: 5A, 50A |
|
MOQ: Any quantity |
|
Certification: ISO9001,ROHS,CE |
|
OEM: Available |
|
Lead time: 25 days after payment |
|
Shipping: Air, Ship, etc |
Part Information
Product Name: PCB Mount Current Transformer Rated Input Current 5A
Products Range: Transformers, Inductors, coils, bobbins, ferrite cores.
Applications: Power Systems. Measuring instruments. Relay
protection, metered. High frequency switching power supplies.
Packing Details: PP packing belt + Outer packing hard paper carton + inner
packing pearl cotton or plastic tray
Samples time: 7-10 days for customized parts, 3-5 days for standard parts.
Advantages: Our Factory is made up of 500 people, huge output can be finished every day.
We have a technical team consist of 5 experienced engineers.
All materials are environmental protected and UL certified. We accept custom made and design service.
Product Specification
|
MCT PN |
Rated IN/OUT |
Accuracy |
Linearity Range |
Phase shift |
Load resistance |
Isolated withstand voltage |
Threading aperture, Unit:mm |
|
MCT21A05 |
5A/10mA |
0.5 |
0~10A |
≤15’ |
≤20Ω |
3000V |
Φ20 |
|
MCT21A50 |
50A/10A |
0.2 |
0~60A |
≤10’ |
≤20Ω |
3000V |
Φ20 |

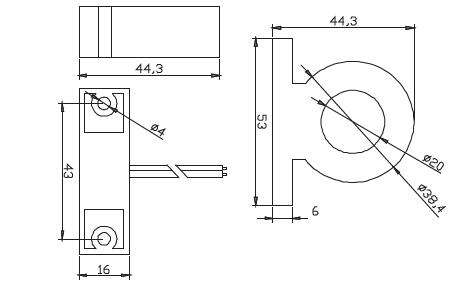

Dimension：mm
Notification
Power supply is needed when operational amplifier is added to the transformer. ±15V，±12V or according to the actual operation.
OP07 series of operational amplifier is recommended.
The fixed temperature coefficient of resistance in the circuit must be over 50PPM.
Welcome customized type requirements.
If you have any questions, please contact us or leaving your comments, we will
give you fast reply.
