EL16 Mn-Zn Ferrite Core Transformer Bobbin4+6 pins vertical EL16 bobbin, high frequency EL16 bobbin. Bobbin Size=18mmx16.2mmx26.2mm. Pin Pitch=3.5mm. Parallel Distance=12mm. Phenolic material EL16 former. UL REC:94V-0 -
UF16 Line Filter Choke Inductor Four Slots Bobbin2+2 pins UF16 horizontal bobbin. Pin Pitch=9.9mm. Parallel Distance=12.8mm. Bobbin Size=16.7mmx16.5mmx21.4mm. UF16 inductor has high permeability, high saturation flux density and low loss. UF16 bobbin mainly used for power transformers, choke coils, communication transformers, high frequency transformers, etc. -
SMD EE19 Bobbin Four Slots Transformer Bobbin 4+6 Pin Horizontal Coil FormerFour slots EE19 transformer bobbin. SMD coil bobbin. 4+6 pin horizontal bobbin. Bobbin material: LCP-E4008. Pin Pitch=2.5mm. Parallel Distance=19mm. Bobbin Size=20.5mmX19mmX11.2mm. Customized designs are accepted. -
PQ32 Vertical High Frequency Transformer Bobbin For Ferrite CoreLead free PQ32 6+6 pins bobbin. Vertical transformer bobbin. Pin pitch=5.1mm. Parallel Distance=30.5mm. Phenolic material PQ32 bobbin. Size=34.01mmX31.93mmX19.7mm. Dip bobbin. We can make bobbin tooling. -
PQ32 Vertical 6+6 Pins High Power Bobbin For PCB Mount TransformerPQ32 vertical coil former. 6+6 pins transformer bobbin. Pin pitch=5mm. Parallel Distance=30mm. Phenolic material PQ32 bobbin. Size=34.5mmX33.2mmX25mm. Dip bobbin. We can make bobbin tooling. -
CQ25 Vertical High Frequency Bobbin 5+2 Pins Coil FormerCQ25 transformer bobbin 2+5 pin. Vertical type transformer bobbin. Pin pitch=3mm. Parallel Distance=22.7mm. Phenolic material CQ25 bobbin. Size=26.2mmX23mmX19.5mm. Dip bobbin. We can make bobbin tooling. -
High Temperature Resistant Transformer Bobbin EF20EF20 power transformer. Horizontal type bobbin. Bobbin Size=19.8mmX19.8mmX16.7mm. Pin pitch=5.0mm. Parallel Distance=15.1mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design. -
Switching Mode Power Supply EF20 Transformer BobbinTransformer bobbin horizontal EF20. 5+5 pins coil former. Bobbin Size=20.0mmX17.8mmX14.3mm. Pin pitch=3.8mm. Parallel Distance=15.0mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design. -
Ferrite Core Bobbin For EF20 Transformer Horizontal 10 PinsEF20 power transformer bobbin supply. Single slot coil bobbin 5+5 pins. Bobbin Size=20.7mmX19.9mmX17.2mm. Pin pitch=3.8mm. Parallel Distance=15.5mm. EF20 transformer DIP bobbin. We can make new tooling to meet customer's design. -
EF20 Coil Former For PCB Mounted TransformerFerrite horizontal transformer. EF20 5+4 pin coil former. Bobbin Size=20.9mmX19.8mmX17.1mm. Parallel Distance=15.0mm. Customized pin pitches. DIP transformer bobbin. We can make new tooling to meet customer's design. -
High Power Transformer EF20 Vertical BobbinEF20 ferrite core bobbin. Transformer bobbin with 3+3 pin. Bobbin Size=14.7mmX13.2mmX17.9mm. Pin pitch=5.0mm. Parallel Distance=12.0mm. DIP transformer bobbin. We can make new tooling to meet customer's design. -
High Frequency EF20 Coil Former 5+5 PinPower supply bobbin pin 5+5. EF series high frequency transformer. Bobbin Size=22.0mmX21.0mmX16.65mm. Pin pitch=3.75mm. Parallel Distance=15.2mm. Transformer bobbin made of T375HF material. -
High Frequency Transformer ETD59 Ferrite Core Bobbin9+13 pins horizontal ETD59 bobbin. Multi section coil former. Parallel Distance=51.4mm. Pin Pitch=5.08mm. Bobbin Size=66.8mmX66.2mmX48.95mm. PET material transformer bobbin. UL REC:94V-0 -
ETD59 Horizontal 12+12 Pin Flyback TransformerETD59 horizontal power transformer. 12+12 pin coil former ETD59. Parallel Distance=50.8mm. Pin Pitch=5.0mm. Bobbin Size=66.7mmX65.5mmX48.60mm. PET material transformer bobbin. UL REC:94V-0 -
ETD34 High Frequency SMPS Transformer Vertical BobbinETD34 filter transformer manufacturer. 7+7 pin vertical ETD34 coil bobbin. Parallel Distance=22.86mm. Pin distance=5.0mm. Bobbin Size=38.2mmX14.6mmX42.4mm. ETD34 hig power transformer has high magnetic flux and low loss magnetic materials, mainly used in PCB circuits, computers, monitors, printer, scanner, duplicator, mobile adapters, other equipments and instruments. -
High Frequency EE40 Switching Transformer 6+6 Pins BobbinEE40 power supply transformer. Vertical chape EE40 6+6 pin bobbin. Bobbin Size=32.2mmX28.0mmX30.3mm. Pin pitch=5.0mm. Parallel distance=22.5mm. We have bobbin tooling. EE40 electronic transformer used for electrical equipment, medical equipment, communication equipment, UPS and other electronic equipment industry. -
EVD25 5+5 Pin High Voltage Transformer BobbinEVD25 switching power transformer manufacture. 5+5 pins EVD25 high frequency bobbin. Bobbin Pin Pitch=5.0mm. Parallel Distance=22.5mm. Bobbin Size=25.5mmX25.0mmX18.0mm. EVD25 transformer factoy. Supply matched ferrite cores. -
ETD54 High Voltage Power Transformer 11+11 Pin BobbinPCB mountign ETD54 transformer. 11+11 pin ETD54 horizontal bobbin. Bobbin Size=61.5mmX61.2mmX44.8mm. Pin pitch=5.08mm. Parallel Distance=45.9mm. ETD54 high frequency transformer widely used in fax machines, monitor, scanner, UPS and other equipments. -
High Voltage Transformer EFD20 4+4 Pin FrameEFD20 ferrite core bobbin for LED transformer. Double grooves EFD20 horizontal bobbin 4+4 pin. Row distance=17.5mm. Pin pitch=5.0mm. Bobbin Size=20.0mmX20.0mmX10.3mm. EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments. -
High Frequency Transformer EFD25 Coil BobbinEFD25 PCB mounting transformer bobbin. 5+5 pin EFD25 horizontal bobbin. Row distance=22.5mm. Pin pitch=5.0mm. Bobbin Size=25.9mmX25.2mmX13.6mm.EFD20 power transformers widely used in electrical equipments, medical equipments, communication equipments, power supplies, vehicle electronic equipments. -
PM50/40 Transformer Coil Former Vertical BobbinPM50 14pins transformer frame, vertical type PM50 bobbin with PM9820 material. Bobbin size=56.8mmX33.9mmX25.9mm. Pin pitch=5.0mm. Pin distance=46.0mm. We have made PM50 transformer bobbin tooling, if you need samples, we can provide very fast. -
PQ26 Power Distribution Transformer ClipsSMPS transformer PQ26 clips, produce PQ20 PQ26 PQ32 PQ35 series bobbins, manufacture high frequency transfromers and inductors. We make new bobbin tooling to meet special size requirements. PQ26 electronnic transformer widely used in SMPS, PCB monunting, microcomputer equitpment, computers, scanner and other electrical equipments. -
PM50/39 Ferrite Core Transformer ClampPM50/39 vertical bobbin clips. Clip size=53.2mmX53.9mmX22mm. We supply PM50 ferrite core and bobbins, we make final PM50 transformer, you can send your drawings to us. -

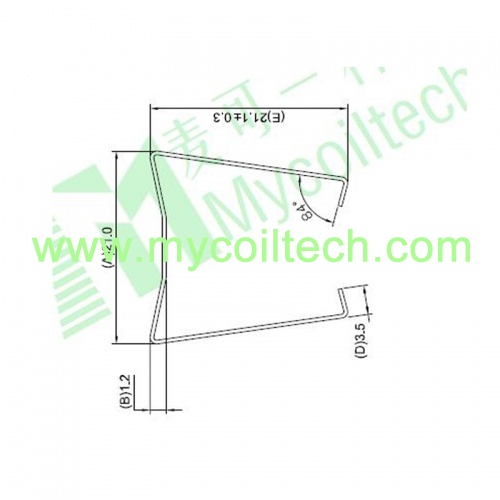

EF20 High Frequency Transformer Iron ClampsEE20 power transformer clip, SUS-301 material clamps. Clip size=21.0mmX21.0mmX5.6mm. We produce various clips for bobbins, supply matched ferrite cores. EF20 electronic transformers mainly used in computers, lighting, UPS, and other electronic equipments. -
ER42/20 Switching Transformer Bobbin CoverER42 transformer bobbin cover made by PBT material. Cover Size=39.0mmX21.6mmX26.0mm. ER42 PBT material bobbin cover, high temperature resistance and low cost, we produce various transformers and supply magnetic cores. -
ER42 Power Charge Transformer Iron ClampER42/20 coil bobbin clip. PA66 clip for transformer. Cover Size=35.0mmX10.0mmX5.0mm. ER42 PA66 material bobbin clamp, high temperature resistance and low cost, we produce various transformers and supply magnetic cores. -
High Voltage Transformer EE30 Horizontal BobbinEE30 encapsulated transformer. 7+7 pin EE30 horizontal coil former. Parallel Distance=22.86mm. Pin distance=5.0mm. Bobbin Size=35.4mmX31.4mmX20mm. EE30 low frequency transformer accept customzied. -
EE19 LED Light Transformer Frame 4+6 PinEE19 high frequency bobbin. 6+4 pin EE19 horizontal bobbin two slots. Bobbin Size=18.5mmX15.0mmX17.8mm. Parallel Distance=12.5mm. Pin pitch1=3.5mm.Pin pitch2=2.7mm. We are transformer bobbin factory, we produce and make different bobbin toolings, we also manufacture final high frequency transformers for power supply. -

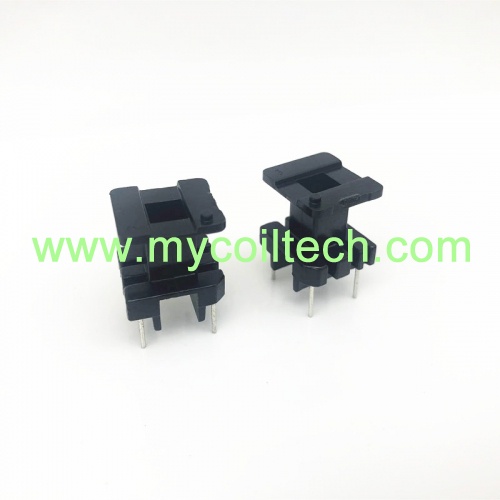

EE19 Power Supply Transformer Vertical BobbinEE19 ferrite core bobbin. 3+3 pin EE19 single slot bobbin two slots. Bobbin Size=14.0mmX13.0mmX10.8mm. Parallel Distance=11.0mm. We are transformer bobbin factory, we produce and make different bobbin toolings, we also manufacture final high frequency transformers for power supply. -

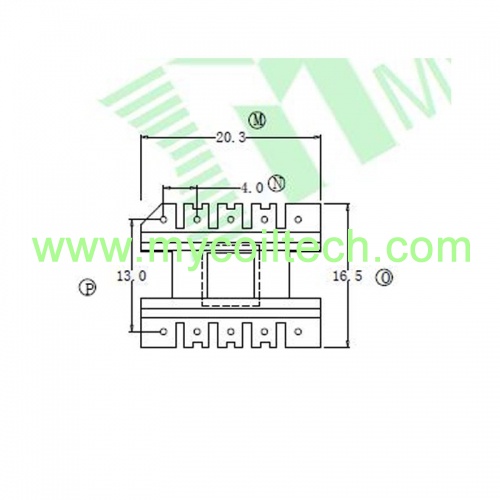

EE19 High Voltage Flyback Transformer FrameEE19 vertical coil bobbin, 5+5 pin EE19 high frequency bobbin. Bobbin Size=20.3mmX16.5mmX15.9mm. Parallel Distance=13.0mm. Pin pitch=4.0mm. We are transformer bobbin factory, we produce and make different bobbin toolings, we also manufacture final high frequency transformers for power supply.
